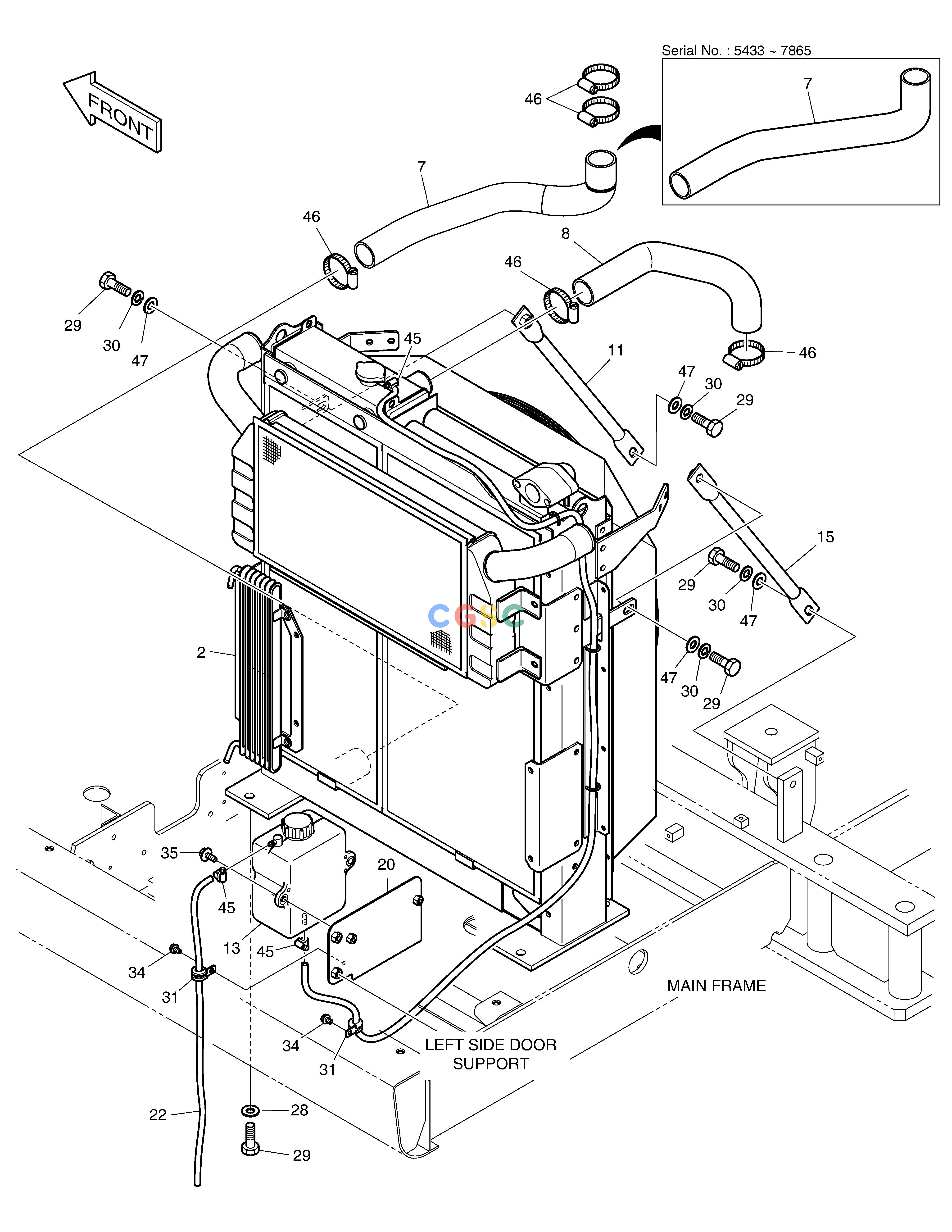

斗山零件查询RADIATOR MOUNTING DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
200 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150109-00132
|
[-] |
|
|
| -. |
K1039446B
|
[-] |
ENGINE ASS'Y
|
|
| 11. |
K1047774
|
[1] |
STAY
|
|
| 13. |
K1038409
|
[1] |
TANK;RESERVE
|
|
| 15. |
K1000563B
|
[1] |
STAY
|
|
| 2. |
440211-00587
|
[1] |
|
|
| 2. |
K1008289C
|
[1] |
RADIATOR ASS'Y
|
440211-00587
|
| 20. |
K1040048
|
[1] |
BRACKET
|
|
| 22. |
K1004515
|
[1] |
HOSE
|
|
| 28. |
2114-1816A
|
[4] |
WASHER
|
|
| 29. |
S0521366
|
[8] |
BOLT
|
|
| 30. |
S5102903
|
[4] |
WASHER
|
|
| 31. |
124-00208D2
|
[2] |
CLAMP
|
|
| 34. |
K1001029
|
[2] |
BOLT
|
|
| 35. |
DS0025016
|
[2] |
BOLT
|
|
| 45. |
S8470014
|
[1] |
CLAMP
|
|
| 45. |
S8470014
|
[3] |
CLAMP
|
|
| 46. |
S8470075
|
[4] |
CLAMP
|
|
| 46. |
S8500079
|
[5] |
CLAMP
|
|
| 47. |
S5010913
|
[4] |
WASHER
|
|
| 7. |
420109-00778
|
[1] |
|
420109-00778B
|
| 7. |
420109-00778B
|
[1] |
|
|
| 7. |
K1033424
|
[1] |
HOSE;WATER
|
420109-00778
|
| 8. |
420109-00644
|
[1] |
|
|
| 8. |
K1006962
|
[1] |
HOSE;WATER
|
|
