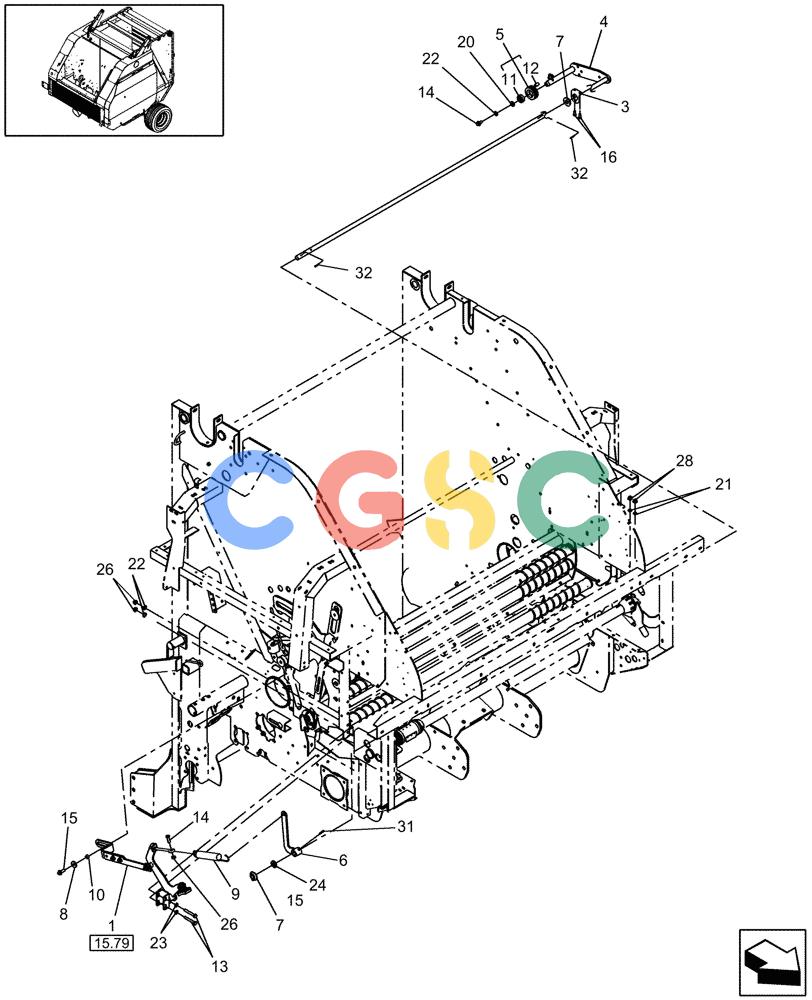

| 1. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Net Brake
|
| 3. |
87552484
|
[1] |
ANGLE
|
NH
Superseded by part number: 87644058
|
| 4. |
87528559
|
[1] |
SHAFT
|
NH
Superseded by part number: 87644314
|
| 5. |
87050433
|
[1] |
HUB
|
NH
|
| 6. |
87470180
|
[1] |
ARM
|
PA
|
| 7. |
87521161
|
[2] |
BUSHING,20.2mm ID x 44.5mm OD x 10.5mm Thk
|
NH
|
| 8. |
678235
|
[1] |
WASHER
|
NH
|
| 9. |
87605373
|
[1] |
SPRING,Extension, 1-3/8" OD x 13-1/4" L
|
NH
|
| 10. |
698748
|
[1] |
BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L
|
NH
Superseded by part number: 626698
|
| 11. |
214122
|
[1] |
BALL BEARING,19.04mm ID x 41.27mm OD x 12.7mm W
|
NH
|
| 12. |
9615611
|
[1] |
MAGNET
|
PA
|
| 13. |
43144
|
[2] |
BOLT,Hex, M10 x 70mm, Cl 8.8
|
NH
Superseded by part number: 87015537
|
| 14. |
86050286
|
[1] |
FLANGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 15. |
9804262
|
[1] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 16. |
120104
|
[2] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 20. |
80702
|
[1] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
|
| 21. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 22. |
140045
|
[3] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 23. |
140017
|
[2] |
WASHER,M10 x 20mm OD x 2mm Thk
|
PA
Superseded by part number: 9820489
|
| 24. |
140021
|
[1] |
WASHER,22mm ID x 37mm OD x 3mm Thk
|
NH
|
| 26. |
9804278
|
[3] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 28. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 31. |
333960
|
[1] |
LOCK PIN,6mm OD x 50mm L, Slotted
|
NH
|
| 32. |
87395
|
[2] |
COTTER PIN,1/8" OD x 1-1/4" OAL
|
NH
|
