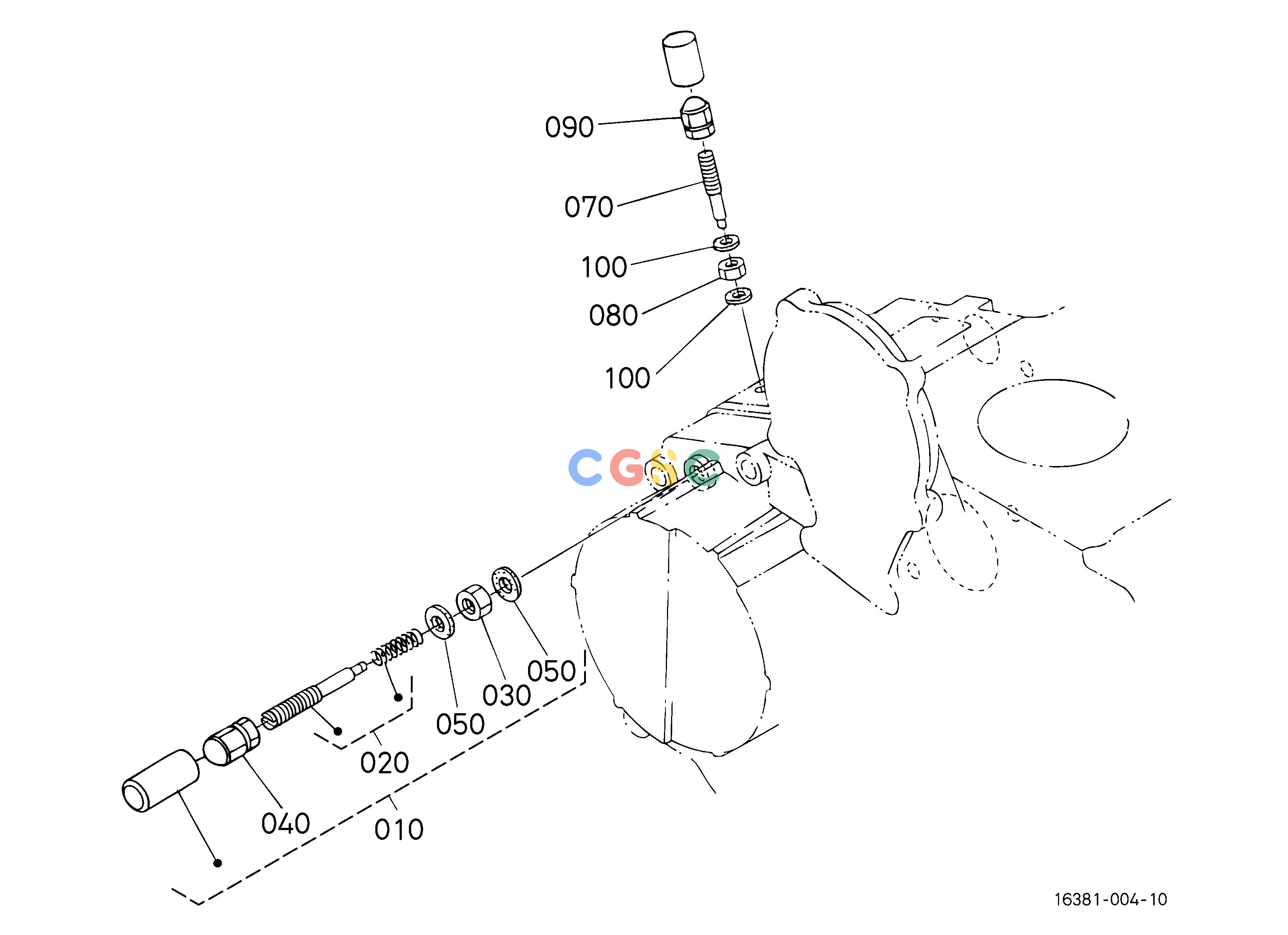

久保田零件查询020001 IDLE APPARATUS ## S.No.<=4E9526 ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
383 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1627154090
|
[1] |
ASSY APPARATUS IDLE
|
0.0638(lbs); 0.029
|
| 020. |
1624154102
|
[1] |
ASSY BOLT ADJUSTING
|
0.0176(lbs); 0.008
|
| 030. |
1584192020
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 040. |
1584192330
|
[1] |
NUT
|
0.0132(lbs); 0.006
|
| 050. |
1560196650
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 070. |
1624154120
|
[1] |
BOLT ADJUSTING
|
0.0110(lbs); 0.005
|
| 080. |
1584192020
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 090. |
1585292330
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 100. |
1560196650
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
