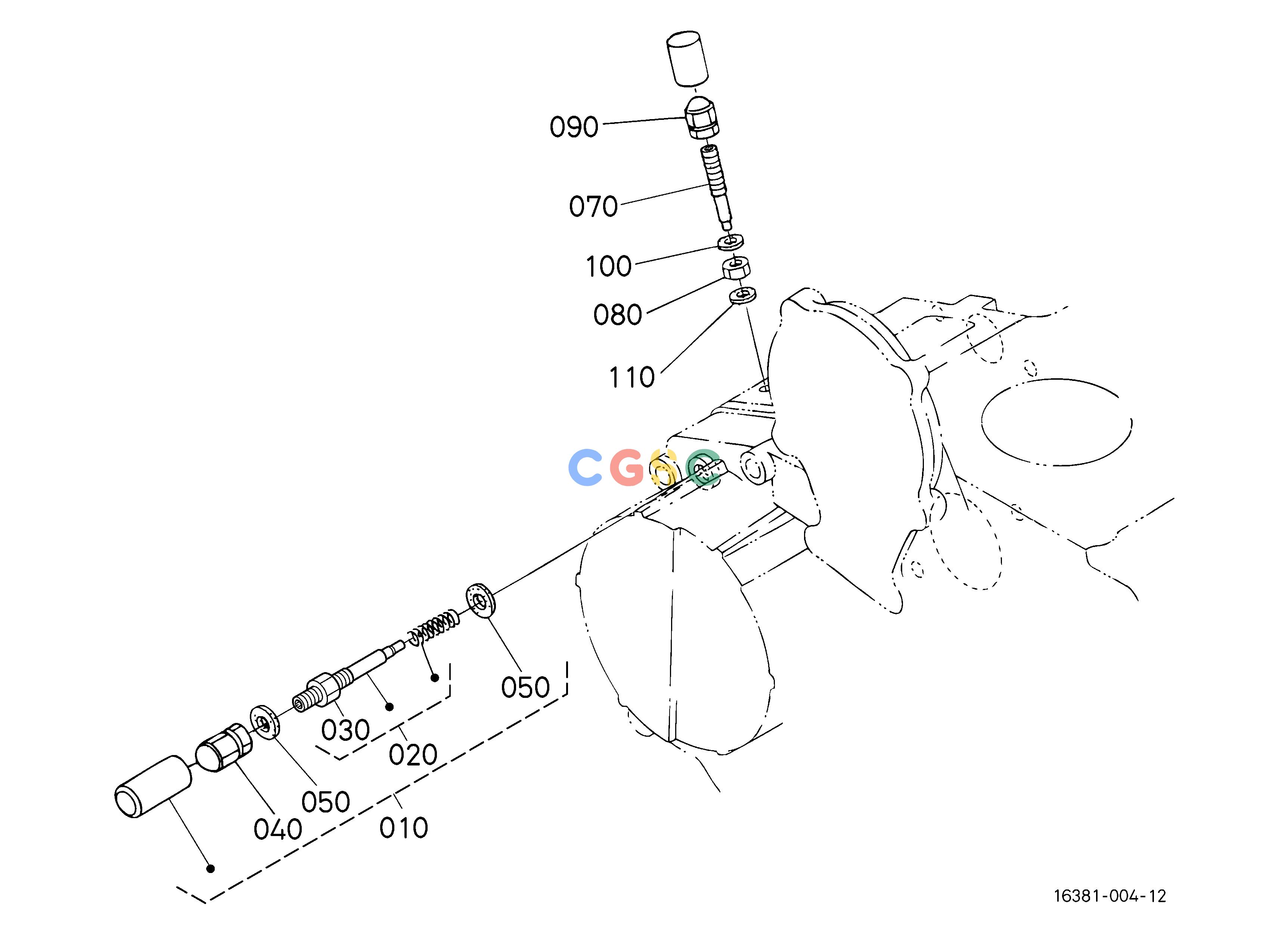

久保田零件查询020002 IDLE APPARATUS ## S.No.>=4G0001 ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
600 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1627154093
|
[1] |
APPARATUS IDLING
|
0.0638(lbs); 0.029
|
| 020. |
1624154103
|
[1] |
ASSY BOLT ADJUSTMENT
|
0.0176(lbs); 0.008
|
| 030. |
1584192020
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 040. |
1585292330
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 050. |
1560196650
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 070. |
1624154122
|
[1] |
BOLT ADJUSTING
|
0.0110(lbs); 0.005
|
| 080. |
1G03154210
|
[1] |
NUT LOCK
|
0.0066(lbs); 0.003
|
| 090. |
1585292330
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 100. |
1560196650
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 110. |
1G02196650
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
