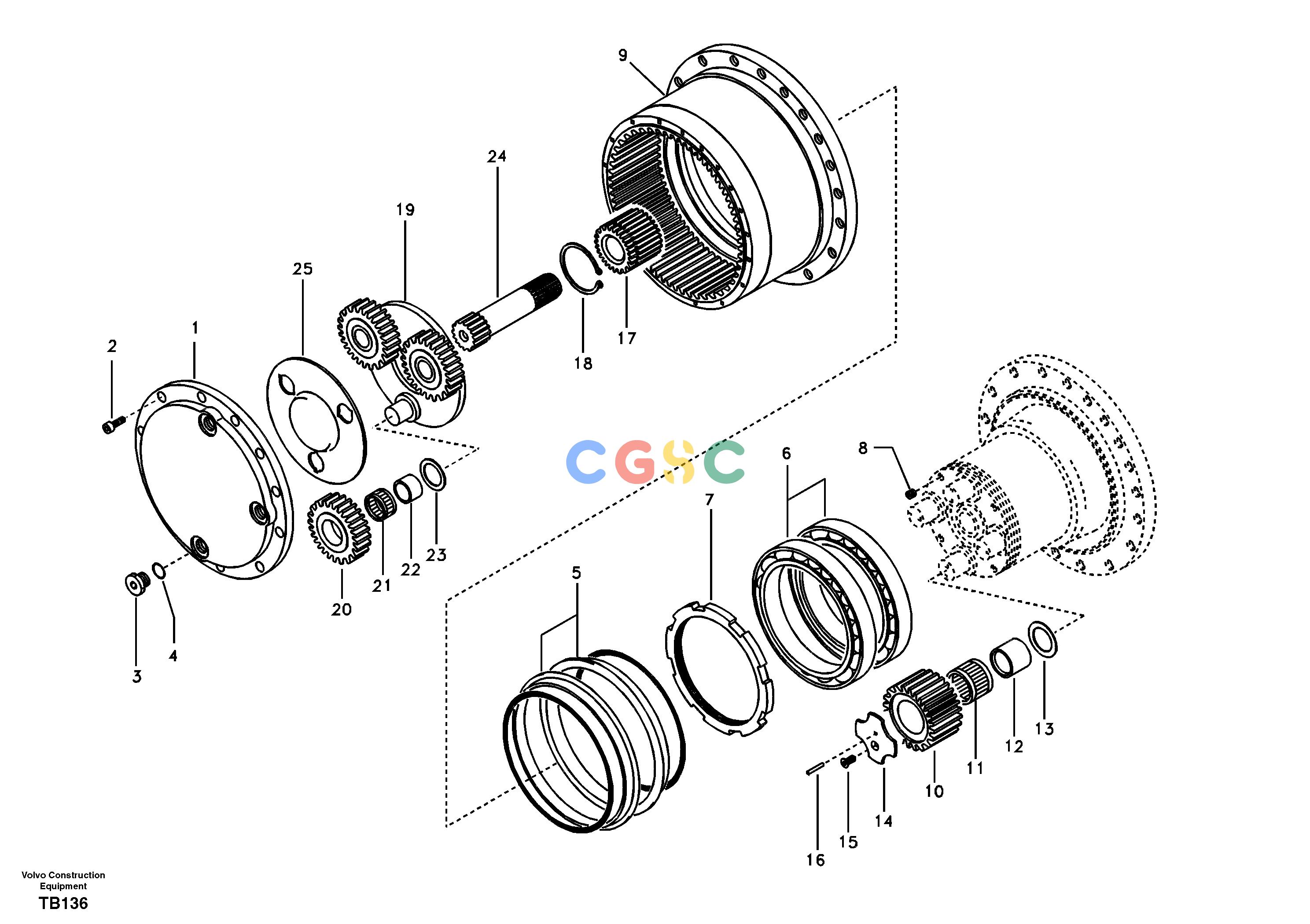

沃尔沃零件查询EC135B Travel gearboxSER NO 20001-200798277943-NoneVOE8277943NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
655 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
SA8230-33470
|
[1] |
Travel gearbox
|
|
| 1. |
SA8230-32570
|
[1] |
Cover
|
|
| 2. |
SA8230-33210
|
[12] |
Bolt
|
|
| 3. |
SA8230-32590
|
[3] |
Plug
|
|
| 4. |
VOE983524
|
[3] |
O-ring
|
|
| 5. |
VOE14534291
|
[2] |
Seal
|
|
| 6. |
SA8230-32450
|
[2] |
Bearing
|
|
| 7. |
SA8230-32580
|
[1] |
Nut
|
|
| 8. |
SA8230-32610
|
[4] |
Plug
|
|
| 9. |
|
[1] |
Housing
|
|
| 10. |
SA8230-32470
|
[4] |
Planetary Gear
|
|
| 11. |
SA8230-32430
|
[4] |
Needle Bearing
|
|
| 12. |
SA8230-32550
|
[4] |
Race
|
|
| 13. |
VOE14534292
|
[4] |
Washer
|
|
| 14. |
SA8230-32500
|
[4] |
Pressure Plate
|
|
| 15. |
SA8230-32530
|
[4] |
Screw
|
|
| 16. |
SA8230-33270
|
[4] |
Spring Pin
|
|
| 17. |
SA8230-32460
|
[1] |
Gear
|
|
| 18. |
SA8230-32520
|
[1] |
Washer
|
|
| 19. |
SA8230-33480
|
[1] |
Holder
|
|
| 20. |
SA8230-33500
|
[3] |
Planetary Gear
|
|
| 21. |
SA8230-32440
|
[3] |
Needle Bearing
|
|
| 22. |
SA8230-32560
|
[3] |
Race
|
|
| 23. |
SA8230-32490
|
[3] |
Washer
|
|
| 24. |
SA8230-33490
|
[1] |
Gear
|
|
| 25. |
SA8230-33540
|
[1] |
Plate
|
|
| |
SA8230-33510
|
[1] |
Pressure Plate
|
|
| |
SA8230-33520
|
[1] |
Pressure Plate
|
|
| |
SA8230-33530
|
[1] |
Pressure Plate
|
|
| 100. |
SA8230-32620
|
[1] |
Sealing Kit
|
INCL 4,5
|
| 200. |
VOE14526218
|
[1] |
Overhaul kit
|
INCL 11,12,13,16,18,
21,22,23
|
