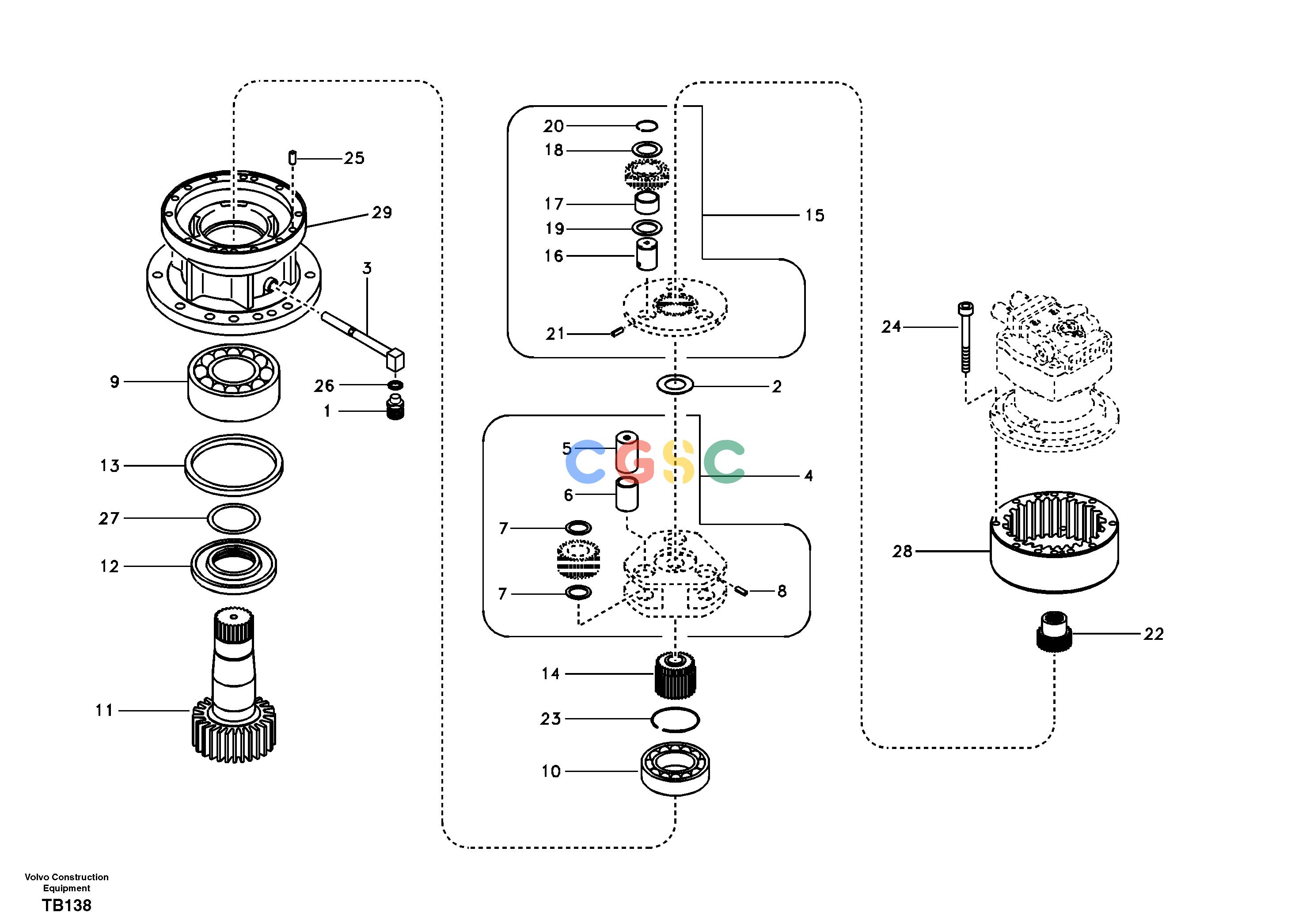

沃尔沃零件查询EC135B Swing gearboxSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
977 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14507900
|
[1] |
Transmission
|
SER NO 20001-20020
|
| |
VOE14541064
|
[1] |
Swing gearbox
|
SER NO 20021-
|
| 1. |
VOE14722461
|
[1] |
Draining valve
|
|
| 2. |
SA1036-00120
|
[1] |
Thrust washer
|
|
| 3. |
VOE14514384
|
[1] |
Pipe
|
SER NO 20001-20020
|
| |
VOE14540597
|
[1] |
Pipe
|
SER NO 20021-
|
| 4. |
SA7118-23200
|
[1] |
Planet carrier
|
|
| 5. |
SA7118-23240
|
[3] |
Pin
|
|
| 6. |
SA7118-23250
|
[3] |
Bushing
|
|
| 7. |
SA7147-00150
|
[6] |
Thrust washer
|
|
| 8. |
SA9325-06012
|
[3] |
Spring pin
|
|
| 9. |
SA7118-23270
|
[1] |
Roller bearing
|
|
| 10. |
SA7118-23280
|
[1] |
Roller bearing
|
|
| 11. |
VOE14528928
|
[1] |
Shaft
|
|
| 12. |
SA7118-23310
|
[1] |
Collar
|
|
| 13. |
SA7118-23330
|
[1] |
Seal
|
|
| 14. |
SA7118-23390
|
[1] |
Sun gear
|
|
| 15. |
SA7118-23400
|
[1] |
Planet carrier
|
|
| 16. |
SA7118-23430
|
[3] |
Pin
|
|
| 17. |
SA7118-23440
|
[3] |
Needle bearing
|
|
| 18. |
SA7118-23460
|
[3] |
Washer
|
|
| 19. |
SA7147-00150
|
[3] |
Thrust washer
|
|
| 20. |
SA9325-06012
|
[3] |
Spring pin
|
|
| 21. |
VOE914462
|
[3] |
Snap ring
|
|
| 22. |
SA7118-23490
|
[1] |
Gear
|
|
| 23. |
SA7118-23520
|
[2] |
Collar
|
5.8T
|
| |
SA7118-23530
|
[2] |
Shim
|
5.9T
|
| |
SA7118-23540
|
[2] |
Shim
|
6.0T
|
| |
SA7118-23550
|
[2] |
Shim
|
6.1T
|
| |
SA7118-23560
|
[2] |
Shim
|
6.2T
|
| |
SA7118-23570
|
[2] |
Shim
|
6.3T
|
| 24. |
VOE984358
|
[10] |
Hex. socket screw
|
|
| 25. |
SA9324-21212
|
[2] |
Pin
|
|
| 26. |
VOE949329
|
[1] |
Gasket
|
|
| 27. |
VOE990592
|
[1] |
O-ring
|
|
| 28. |
VOE14588466
|
[1] |
Gear
|
|
| 29. |
VOE14514438
|
[1] |
Case
|
|
| 100. |
VOE14526213
|
[1] |
Overhaul kit
|
|
