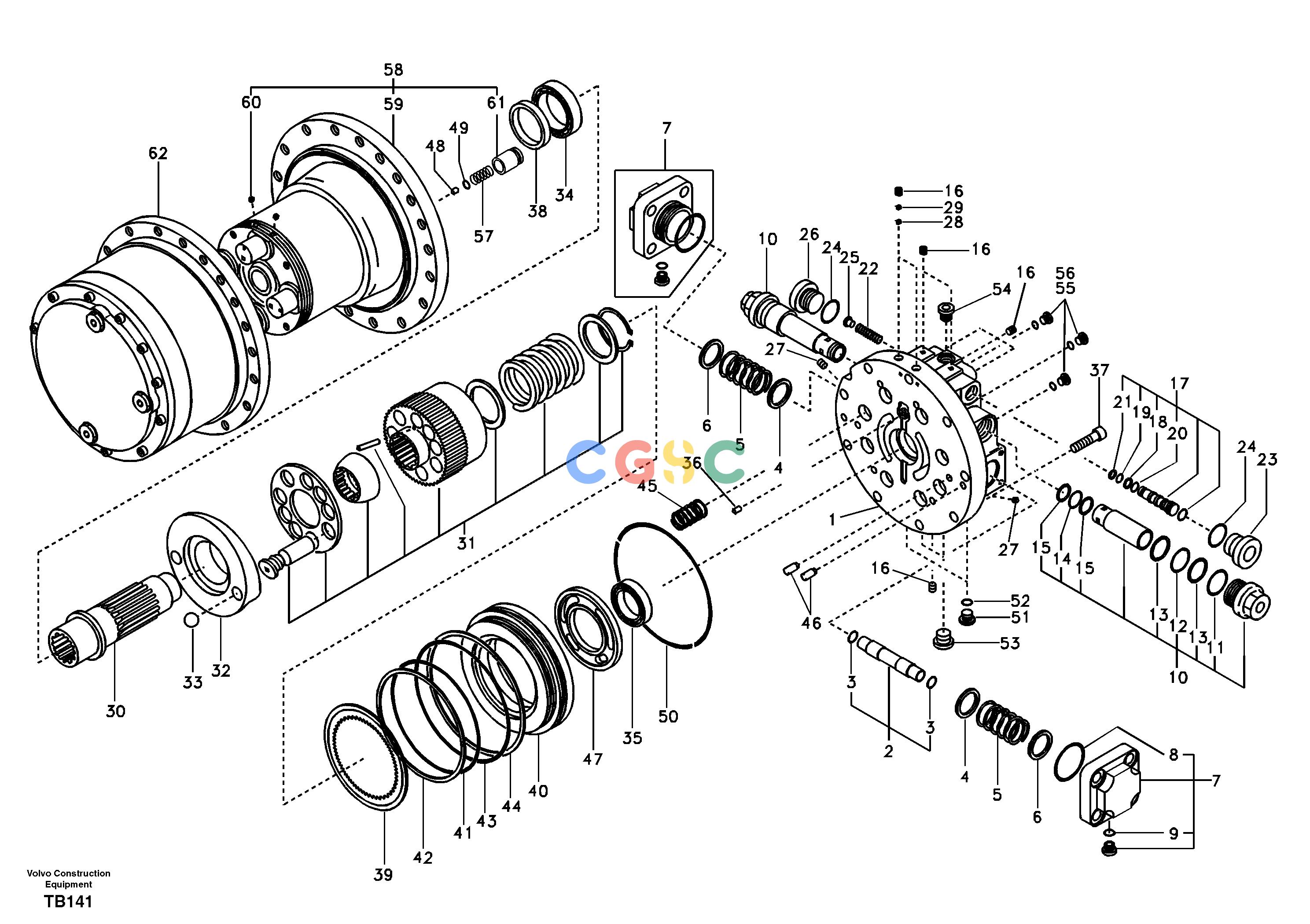

沃尔沃零件查询EC135B Travel motorSER NO 20001-200798277943-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
820 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14524182
|
[1] |
Drive unit
|
|
| 1. |
SA8230-33450
|
[1] |
Plate
|
|
| |
SA8230-33440
|
[1] |
Plate
|
|
| 2. |
SA8230-34310
|
[1] |
Plunger
|
|
| 3. |
VOE990557
|
[2] |
O-ring
|
|
| 4. |
SA8230-34150
|
[2] |
Seat
|
|
| 5. |
SA8230-34130
|
[2] |
Spring
|
|
| 6. |
SA8230-34160
|
[2] |
Seat
|
|
| 7. |
SA8230-34320
|
[2] |
Cap
|
|
| 8. |
|
[1] |
O-ring
|
|
| 9. |
|
[1] |
O-ring
|
|
| 10. |
SA8230-34330
|
[2] |
Valve
|
|
| 11. |
SA8230-32630
|
[1] |
O-ring
|
|
| 12. |
VOE983510
|
[1] |
O-ring
|
|
| 13. |
SA9566-30210
|
[2] |
Back-up ring
|
|
| 14. |
VOE983506
|
[1] |
O-ring
|
|
| 15. |
VOE14502038
|
[2] |
Ring
|
|
| 16. |
SA8230-32300
|
[11] |
Plug
|
|
| 17. |
SA8230-32380
|
[1] |
Valve
|
|
| 18. |
VOE983493
|
[1] |
O-ring
|
|
| 19. |
VOE990551
|
[1] |
O-ring
|
|
| 20. |
SA9566-10060
|
[1] |
Back-up ring
|
|
| 21. |
SA9566-10050
|
[1] |
Back-up ring
|
|
| 22. |
SA8230-33400
|
[1] |
Spring
|
|
| 23. |
SA8230-34050
|
[1] |
Plug
|
|
| 24. |
VOE990557
|
[2] |
O-ring
|
|
| 25. |
SA8230-33430
|
[1] |
Guide
|
|
| 26. |
SA8230-33940
|
[1] |
Plug
|
|
| 27. |
SA8230-34220
|
[2] |
Orifice
|
|
| 28. |
SA8230-34230
|
[2] |
Orifice
|
|
| 29. |
SA8230-32650
|
[2] |
Orifice
|
|
| 30. |
SA8230-32360
|
[1] |
Shaft
|
|
| 31. |
SA8230-32390
|
[1] |
Block
|
|
| 32. |
SA8230-33410
|
[1] |
Plate
|
|
| 33. |
SA8230-34020
|
[2] |
Ball
|
|
| 34. |
SA8230-33980
|
[1] |
Ball bearing
|
|
| 35. |
SA8230-33970
|
[1] |
Ball bearing
|
|
| 36. |
SA8230-32410
|
[1] |
Pin
|
|
| 37. |
SA8230-33230
|
[9] |
Bolt
|
|
| 38. |
SA8230-32420
|
[1] |
Seal
|
|
| 39. |
SA8230-34040
|
[1] |
Plate
|
|
| 40. |
SA8230-34030
|
[1] |
Piston
|
|
| 41. |
VOE960252
|
[1] |
O-ring
|
|
| 42. |
SA9566-41800
|
[1] |
Back-up ring
|
|
| 43. |
SA8230-33960
|
[1] |
O-ring
|
|
| 44. |
SA8230-33950
|
[1] |
Ring
|
|
| 45. |
SA8230-32330
|
[8] |
Spring
|
|
| 46. |
SA8230-32320
|
[4] |
Pin
|
|
| 47. |
SA8230-33930
|
[1] |
Plate
|
|
| 48. |
SA8230-34210
|
[1] |
Orifice
|
|
| 49. |
VOE983497
|
[4] |
O-ring
|
|
| 50. |
SA8230-34070
|
[1] |
O-ring
|
|
| 51. |
SA8230-34050
|
[2] |
Plug
|
|
| 52. |
VOE990557
|
[2] |
O-ring
|
|
| 53. |
SA8230-32700
|
[2] |
Plug
|
|
| 54. |
SA8230-32690
|
[1] |
Plug
|
|
| 55. |
SA8230-32350
|
[3] |
Plug
|
|
| 56. |
VOE983502
|
[3] |
O-ring
|
|
| 57. |
SA8230-33890
|
[2] |
Spring
|
|
| 58. |
SA8230-33550
|
[1] |
Holder
|
|
| 59. |
SA8230-32600
|
[1] |
Holder
|
|
| 60. |
SA8230-33390
|
[2] |
Plug
|
|
| 61. |
SA8230-34090
|
[2] |
Piston
|
|
| 62. |
SA8230-33470
|
[1] |
Travel gearbox
|
|
| 900. |
SA8230-33460
|
[1] |
Plate
|
INCL.1,2,16,17
|
| 100. |
SA8230-32400
|
[1] |
Sealing Kit
|
|
