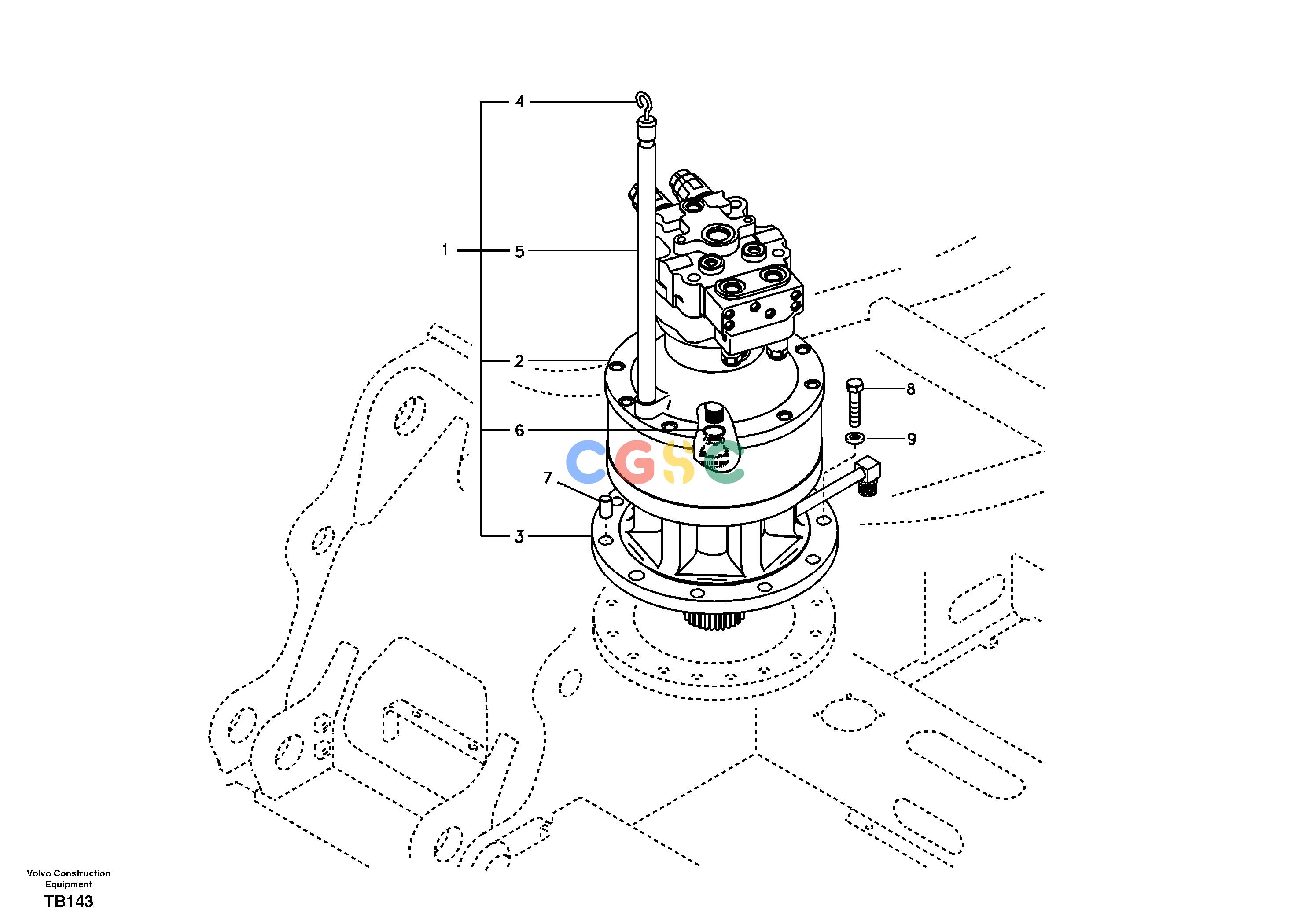

沃尔沃零件查询EC135B Swing motor with mounting partsSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
379 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14507899
|
[1] |
Drive unit
|
SER NO 20001-20020
|
| |
VOE14541065
|
[1] |
Drive unit
|
SER NO 20021-
|
| 2. |
VOE14524188
|
[1] |
Swing motor
|
|
| 3. |
VOE14507900
|
[1] |
Transmission
|
SER NO 20001-20020
|
| |
VOE14541064
|
[1] |
Swing gearbox
|
SER NO 20021-
|
| 4. |
VOE14512936
|
[1] |
Gauge
|
|
| 5. |
VOE14512938
|
[1] |
Pipe
|
|
| 6. |
VOE914462
|
[1] |
Snap ring
|
|
| 7. |
SA1050-63611
|
[1] |
Pin
|
|
| 8. |
VOE60110356
|
[9] |
Hexagon screw
|
|
| 9. |
VOE60110299
|
[9] |
Washer
|
|
