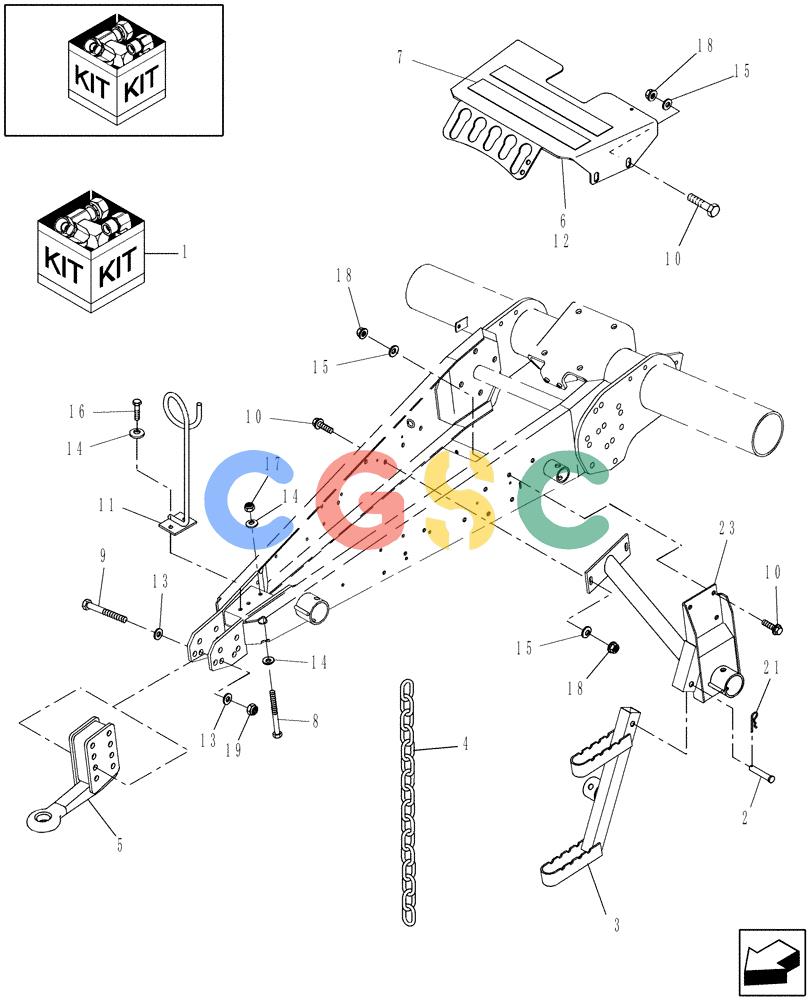

凯斯零件查询(RB454) - CASE IH ROUND BALER (7/07-1/14) (18.02) - DIA KIT, HIGH HITCH Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
554 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87347912
|
[1] |
DIA KIT, HARVESTER
|
PA
High Hitch, Includes: Instructions
|
| 2. |
270135
|
[1] |
CLEVIS PIN
|
NH
|
| 3. |
86979534
|
[1] |
STEP
|
PA
|
| 4. |
264035
|
[1] |
CHAIN
|
PA
Superseded by part number: 196348
|
| 5. |
87023114
|
[1] |
HITCH
|
PA
Ring
|
| 6. |
87756951
|
[1] |
STEP
|
PA
High Hitch, BR & BR-A Series Balers Only
|
| 7. |
263636
|
[2] |
ANTI-SKID STRIP
|
NH
|
| 8. |
86508574
|
[2] |
BOLT,Hex, M10 x 120mm, Cl 8.8
|
NH
|
| 9. |
321246
|
[4] |
BOLT,Hex, M16 x 2 x 120mm, Cl 8.8
|
NH
|
| 10. |
9670066
|
[10] |
FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8
|
NH
|
| 11. |
87042252
|
[1] |
SUPPORT
|
PA
|
| 12. |
87556966
|
[1] |
STEP
|
NH
High Hitch, BR7000 Series Balers Only
|
| 13. |
130358
|
[8] |
WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk
|
NH
Hardened, 5/8"
|
| 14. |
140045
|
[6] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 15. |
140046
|
[10] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 16. |
9804262
|
[2] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 17. |
100037
|
[2] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 18. |
86512497
|
[10] |
FLANGE NUT,M12 x 1.75, Cl 10
|
NH
|
| 19. |
86000441
|
[4] |
NUT,M16 x 2.0, Cl 8
|
NH
Prevailing Torque
|
| 20. |
129365
|
[1] |
COTTER PIN
|
NH
.094" x 2-5/16"
|
| 21. |
86625813
|
[1] |
TUBE
|
NH
Superseded by part number: 87032220
|
| 23. |
87032220
|
[1] |
MOUNTING PARTS
|
PA
|
