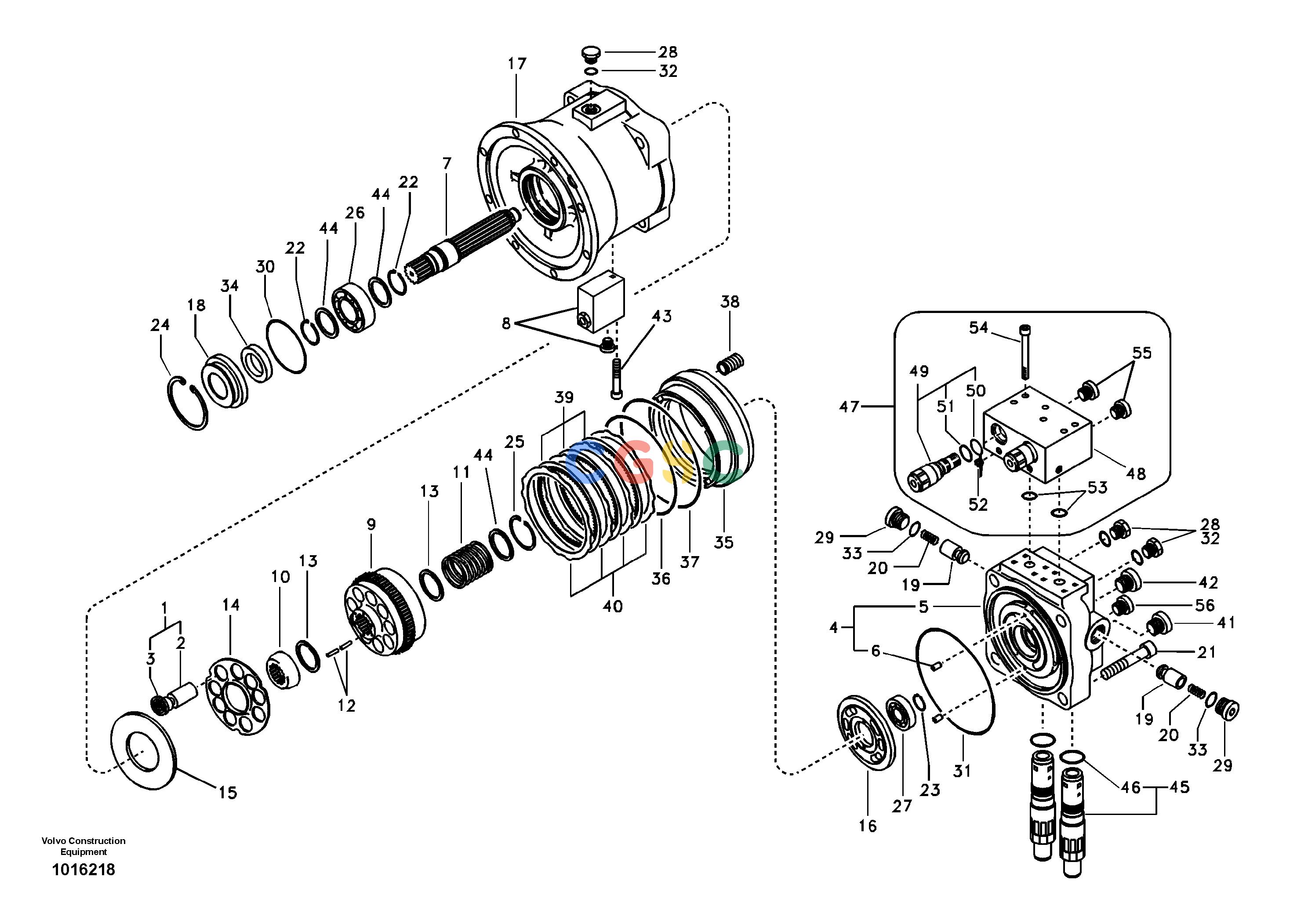

沃尔沃零件查询EC135B Swing motorSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
348 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14524188
|
[1] |
Swing motor
|
|
| 1. |
VOE14612049
|
[1] |
Piston
|
|
| 2. |
VOE14501617
|
[9] |
Piston
|
|
| 3. |
VOE14501618
|
[1] |
Seat
|
|
| 4. |
SA8230-30360
|
[1] |
Casing
|
|
| 5. |
VOE14501619
|
[1] |
Casing
|
|
| 6. |
VOE14501620
|
[2] |
Pin
|
|
| 7. |
SA8230-13670
|
[1] |
Shaft
|
|
| 8. |
VOE14511642
|
[1] |
Valve
|
|
| |
VOE14562621
|
[2] |
Plug
|
|
| |
VOE983493
|
[2] |
O-ring
|
|
| |
VOE983503
|
[1] |
O-ring
|
|
| 9. |
SA8230-13690
|
[1] |
Cylinder
|
|
| 10. |
SA8230-14100
|
[1] |
Retainer
|
|
| 11. |
SA8230-14130
|
[1] |
Spring
|
|
| 12. |
SA8230-26340
|
[12] |
Rod
|
|
| 13. |
SA8230-14120
|
[2] |
Spacer
|
|
| 14. |
SA8230-13920
|
[1] |
Plate
|
|
| 15. |
SA8230-14080
|
[1] |
Plate
|
|
| 16. |
SA8230-13930
|
[1] |
Valve plate
|
|
| 17. |
SA8230-13600
|
[1] |
Casing
|
|
| 18. |
SA8230-14090
|
[1] |
Cover
|
|
| 19. |
SA8230-14170
|
[2] |
Control plunger
|
|
| 20. |
SA8230-14180
|
[2] |
Spring
|
|
| 21. |
SA8240-03530
|
[4] |
Bolt
|
|
| 22. |
SA8230-25970
|
[2] |
Ring
|
|
| 23. |
SA8230-26960
|
[1] |
Ring
|
|
| 24. |
SA8230-25770
|
[1] |
Snap ring
|
|
| 25. |
SA8230-25720
|
[1] |
Ring
|
|
| 26. |
SA8230-26570
|
[1] |
Roller bearing
|
|
| 27. |
VOE14511641
|
[1] |
Roller bearing
|
|
| 28. |
SA8230-25640
|
[3] |
Plug
|
|
| 29. |
SA8230-25660
|
[2] |
Plug
|
|
| 30. |
VOE990592
|
[1] |
O-ring
|
|
| 31. |
SA8240-03361
|
[1] |
O-ring
|
|
| 32. |
VOE983502
|
[3] |
O-ring
|
|
| 33. |
VOE983509
|
[2] |
O-ring
|
|
| 34. |
SA8230-26860
|
[1] |
Seal
|
|
| 35. |
SA8230-13840
|
[1] |
Brake piston
|
|
| 36. |
SA8230-25510
|
[1] |
O-ring
|
|
| 37. |
SA8230-25520
|
[1] |
O-ring
|
|
| 38. |
SA8230-14140
|
[16] |
Spring
|
|
| 39. |
SA8230-13780
|
[3] |
Friction plate
|
|
| 40. |
SA8230-13730
|
[4] |
Separating plate
|
|
| 41. |
SA8230-26930
|
[1] |
Plug
|
|
| 42. |
SA8230-26920
|
[1] |
Plastic plug
|
|
| 43. |
VOE14511643
|
[3] |
Screw
|
|
| 44. |
SA8230-14110
|
[3] |
Spacer
|
|
| 45. |
SA8230-36550
|
[2] |
Relief valve
|
|
| 46. |
VOE990582
|
[1] |
O-ring
|
|
| 47. |
VOE14511644
|
[1] |
Block
|
|
| 48. |
VOE14511646
|
[1] |
Casing
|
|
| 49. |
VOE14684415
|
[2] |
Valve
|
|
| 50. |
VOE983509
|
[1] |
O-ring
|
|
| 51. |
VOE14625240
|
[1] |
Ring
|
|
| 52. |
VOE14560637
|
[4] |
Plug
|
|
| 53. |
VOE983511
|
[2] |
O-ring
|
|
| 54. |
SA8230-25920
|
[6] |
Bolt
|
|
| 55. |
SA8230-30430
|
[2] |
Plug
|
|
| 56. |
VOE14529759
|
[1] |
Plug
|
|
| 100. |
SA8230-14370
|
[1] |
Seal
|
|
