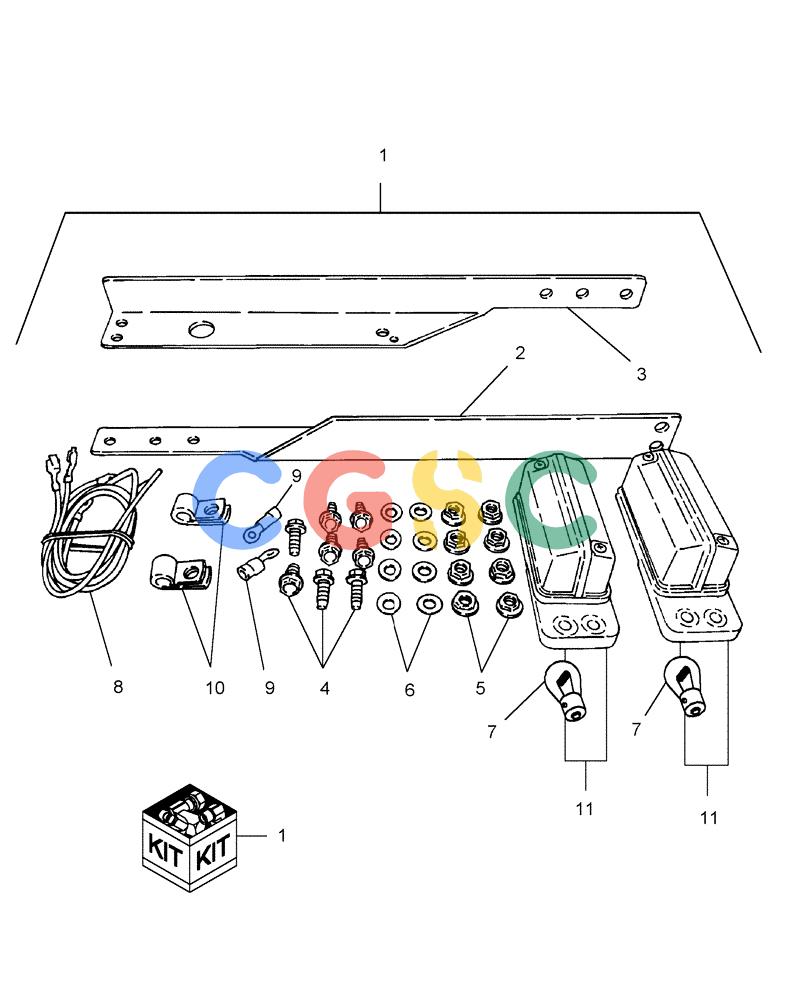

凯斯零件查询(RB454) - CASE IH ROUND BALER (7/07-1/14) (18.05) - DIA KIT, MARKER LIGHT KIT, EUROPE & R.O.W. Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
601 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87027307
|
[1] |
DIA KIT, HARVESTER
|
PA
Marker Light, Europe & R.O.W., Includes: Installation Instructions
|
| 2. |
87026608
|
[1] |
MOUNTING PARTS
|
PA
LH
|
| 3. |
87026714
|
[1] |
MOUNTING PARTS
|
PA
RH
|
| 4. |
844-6016
|
[8] |
BOLT,Hvy Hex, M6 x 16mm, Cl 8.8
|
CAS
Superseded by part number: 9804255
|
| 5. |
825-2406
|
[8] |
FLANGE NUT,M6 x 1, Cl 8.8
|
CAS
Superseded by part number: 9804276
|
| 6. |
322357
|
[8] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 7. |
353078
|
[2] |
BULB,T8/4, 12V, 4W
|
ZED
Superseded by part number: 3050199R91
|
| 8. |
87028063
|
[2] |
HARNESS
|
PA
Wire
|
| 9. |
PL
|
[2] |
PROCURE LOCALLY
|
BAS
#8 Ring Connector, AMP # 34122
|
| 10. |
853764
|
[2] |
CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type
|
NH
|
| 11. |
449531
|
[2] |
POSITION LAMP,Red
|
ZED
Side Marker
|
