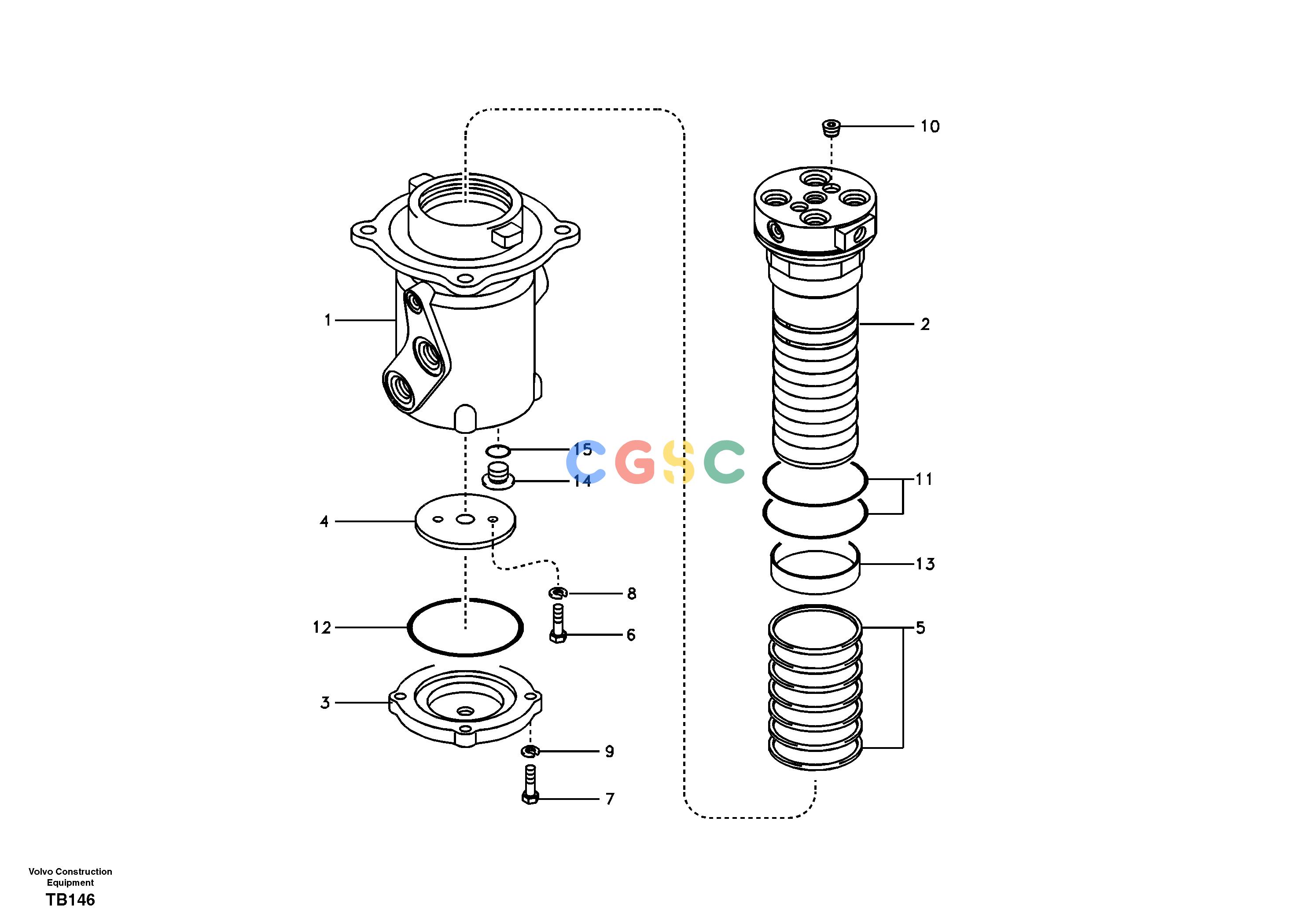

沃尔沃零件查询EC135B Turning jointSER NO 20001-200798277943-8277946NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
638 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
SA1146-00062
|
[1] |
Centre passage
|
|
| 1. |
SA1146-00071
|
[1] |
Hub
|
|
| 2. |
|
[1] |
Shaft
|
|
| 3. |
SA1146-00090
|
[1] |
Cover
|
|
| 4. |
SA1146-00101
|
[1] |
Spacer
|
|
| 5. |
VOE14507705
|
[7] |
Seal
|
|
| 6. |
VOE983251
|
[2] |
Hexagon screw
|
|
| 7. |
VOE978933
|
[4] |
Hexagon screw
|
|
| 8. |
VOE955922
|
[2] |
Spring washer
|
|
| 9. |
VOE955923
|
[4] |
Spring washer
|
|
| 10. |
SA9415-43032
|
[2] |
Plug
|
|
| 11. |
VOE990645
|
[2] |
O-ring
|
|
| 12. |
VOE990601
|
[1] |
O-ring
|
|
| 13. |
SA9611-10025
|
[1] |
Bearing
|
|
| 14. |
SA1146-00670
|
[4] |
Plug
|
|
| 15. |
VOE983524
|
[4] |
O-ring
|
|
| 100. |
VOE14514937
|
[1] |
Seal
|
|
