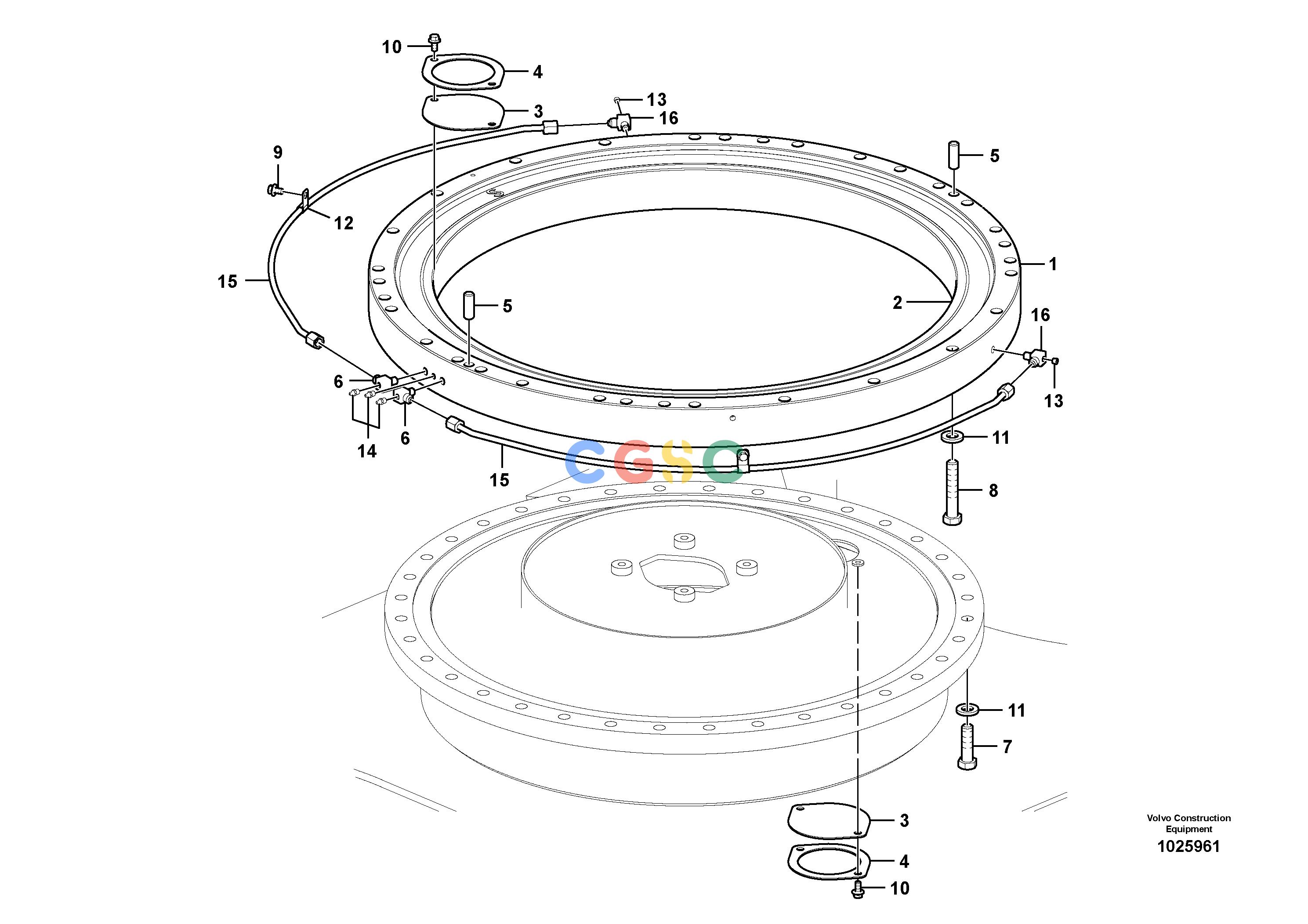

沃尔沃零件查询EC135B Swing systemSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
780 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14563340
|
[1] |
Swing gear
|
SER NO 20001-20070
|
| |
VOE14563340
|
[1] |
Swing gear
|
SER NO 20071-
|
| 2. |
VOE14618789
|
[2] |
Seal
|
|
| 3. |
VOE14531013
|
[2] |
Cover
|
|
| 4. |
VOE14531014
|
[2] |
Gasket
|
|
| 5. |
SA1050-63450
|
[2] |
Pin
|
|
| 6. |
VOE14531862
|
[4] |
Elbow
|
SER NO 20001-20070
|
| |
VOE14555862
|
[2] |
Elbow
|
SER NO 20071-
|
| 7. |
VOE978942
|
[33] |
Hexagon screw
|
|
| 8. |
VOE993077
|
[36] |
Hexagon screw
|
|
| 9. |
VOE946471
|
[2] |
Flange screw
|
|
| 10. |
VOE946441
|
[4] |
Flange screw
|
|
| 11. |
VOE60110299
|
[69] |
Washer
|
|
| 12. |
SA9315-01002
|
[2] |
Insulating clip
|
|
| 13. |
SA9415-43012
|
[2] |
Plug
|
SER NO 20001-20070
|
| 14. |
SA9481-11003
|
[3] |
Nipple
|
SER NO 20001-20070
|
| |
VOE914167
|
[3] |
Lubricating nipple
|
SER NO 20071-
|
| 15. |
VOE14524174
|
[2] |
Tube
|
|
| 16. |
VOE14555861
|
[2] |
Elbow
|
SER NO 20071-
|
