沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FControlsControl for top Installation, PC740, TwinEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
784 次

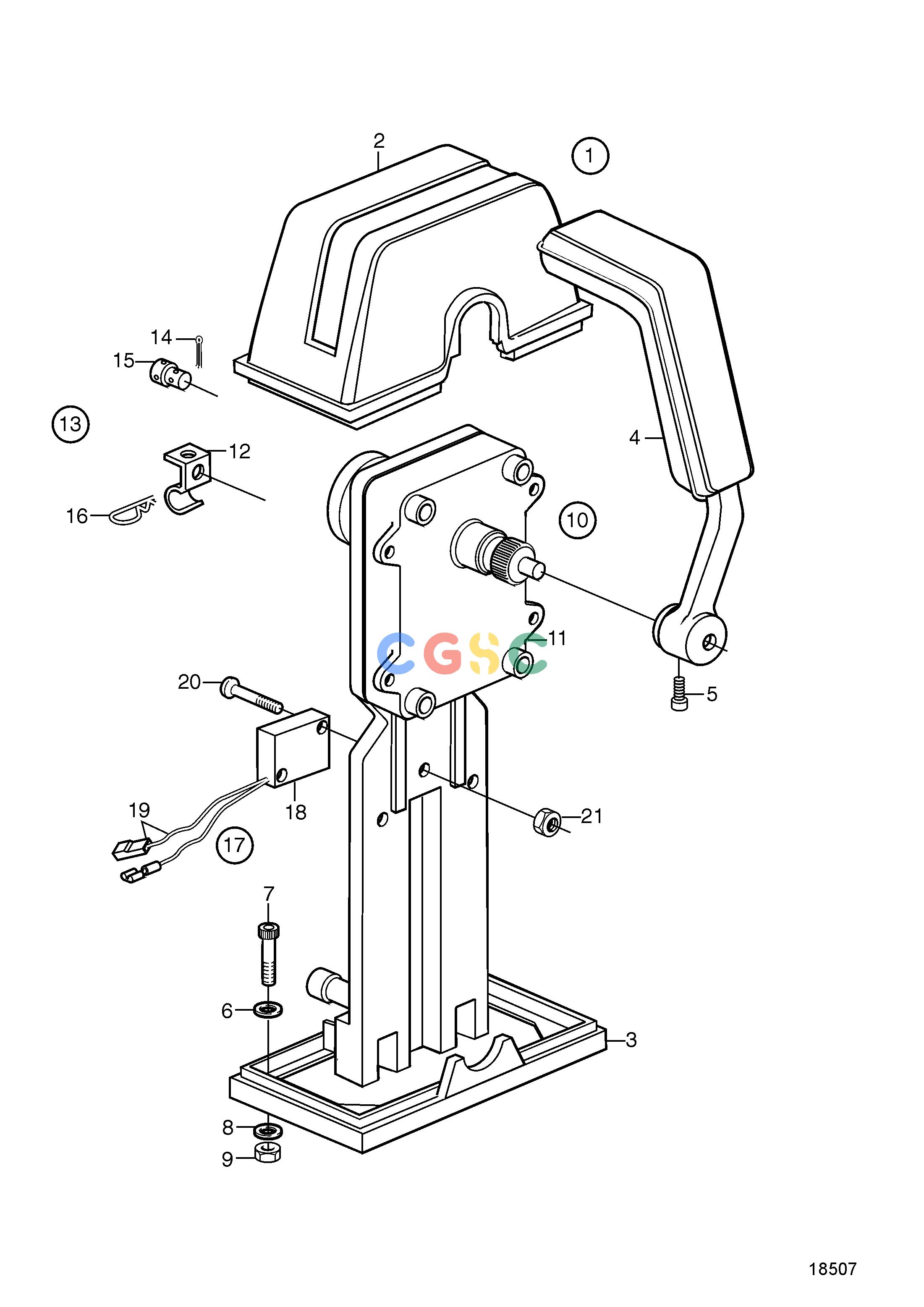

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
851603
|
[1] |
Mounting kit
|
|
| 2. |
850824
|
[1] |
Cover
|
(839477)
|
| 3. |
839479
|
[1] |
Plate
|
|
| 4. |
839475
|
[2] |
Hand lever
|
|
| 5. |
839693
|
[2] |
Lock screw
|
|
| 6. |
940090
|
[2] |
Washer
|
|
| 7. |
947671
|
[6] |
Hex. socket screw
|
|
| 8. |
960138
|
[6] |
Washer
|
|
| 9. |
955780
|
[6] |
Hexagon nut
|
|
| 10. |
851600
|
[2] |
Control
|
|
| 11. |
851666
|
[2] |
Control mechanism
|
|
| 12. |
853423
|
[2] |
Retainer
|
|
| 13. |
851712
|
[2] |
Connector kit
|
|
| 14. |
17253
|
[4] |
Split pin
|
|
| 15. |
839638
|
[4] |
Cube
|
|
| 16. |
852924
|
[2] |
Locking pin
|
|
| 17. |
855352
|
[2] |
Neutral position con
|
|
| 18. |
850200
|
[2] |
Toggle switch
|
|
| 19. |
7746500_142
|
|
cables and terminals
|
|
| 20. |
946177
|
[4] |
Cross recessed screw
|
|
| 21. |
947536
|
[4] |
Hexagon nut
|
|
