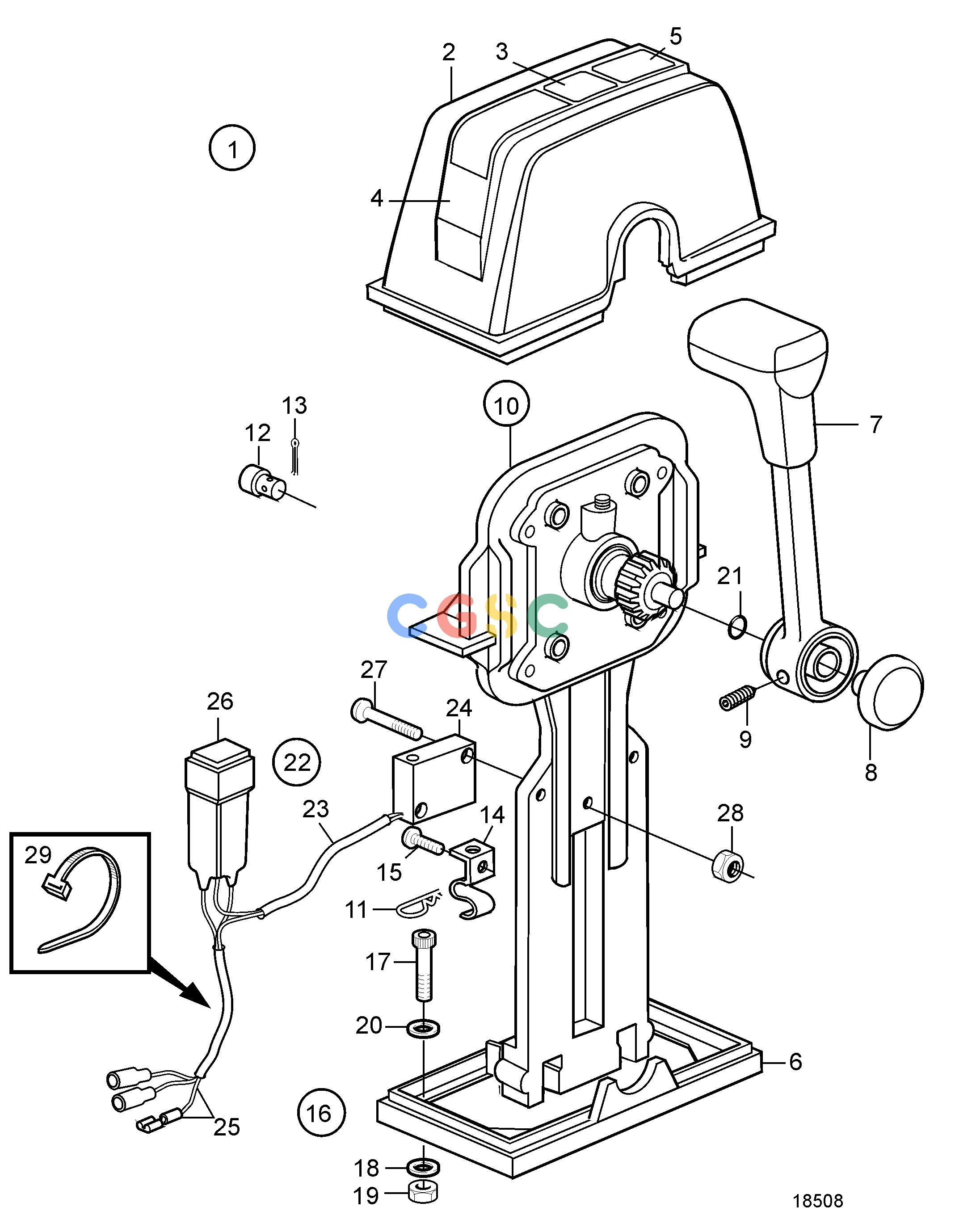

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FControlsControl for top Installation, PC840, SingleEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
173 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
853168
|
[1] |
Mounting kit
|
For single installation.
|
| 2. |
1140046
|
[1] |
Cover
|
|
| 3. |
851896
|
[2] |
Decal
|
|
| 4. |
851892
|
[1] |
Crossbar
|
|
| 5. |
|
|
|
|
| 6. |
839474
|
[1] |
Plate
|
|
| 7. |
852347
|
[1] |
Hand lever
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
Included in complete handle.
|
| 9. |
|
|
|
Included in complete handle.
|
| 10. |
851600
|
[1] |
Control
|
|
| 11. |
852924
|
[1] |
Locking pin
|
|
| 12. |
839638
|
[1] |
Cube
|
|
| 13. |
17253
|
[1] |
Split pin
|
|
| 14. |
853423
|
[1] |
Retainer
|
|
| 15. |
839664
|
[1] |
Screw
|
|
| 16. |
|
|
|
|
| 17. |
947671
|
[4] |
Hex. socket screw
|
|
| 18. |
960138
|
[4] |
Washer
|
|
| 19. |
955780
|
[4] |
Hexagon nut
|
|
| 20. |
940090
|
[4] |
Washer
|
|
| 21. |
925058
|
[1] |
O-ring
|
|
| 22. |
855352
|
[1] |
Neutral position con
|
|
| 23. |
839619
|
[1] |
Cable kit
|
|
| 24. |
850200
|
[1] |
Toggle switch
|
|
| 25. |
7746500_142
|
|
cables and terminals
|
|
| 26. |
876037
|
[1] |
Relay kit
|
|
| 27. |
946177
|
[2] |
Cross recessed screw
|
|
| 28. |
947536
|
[2] |
Hexagon nut
|
|
| 29. |
948211
|
[1] |
Cable tie
|
|
