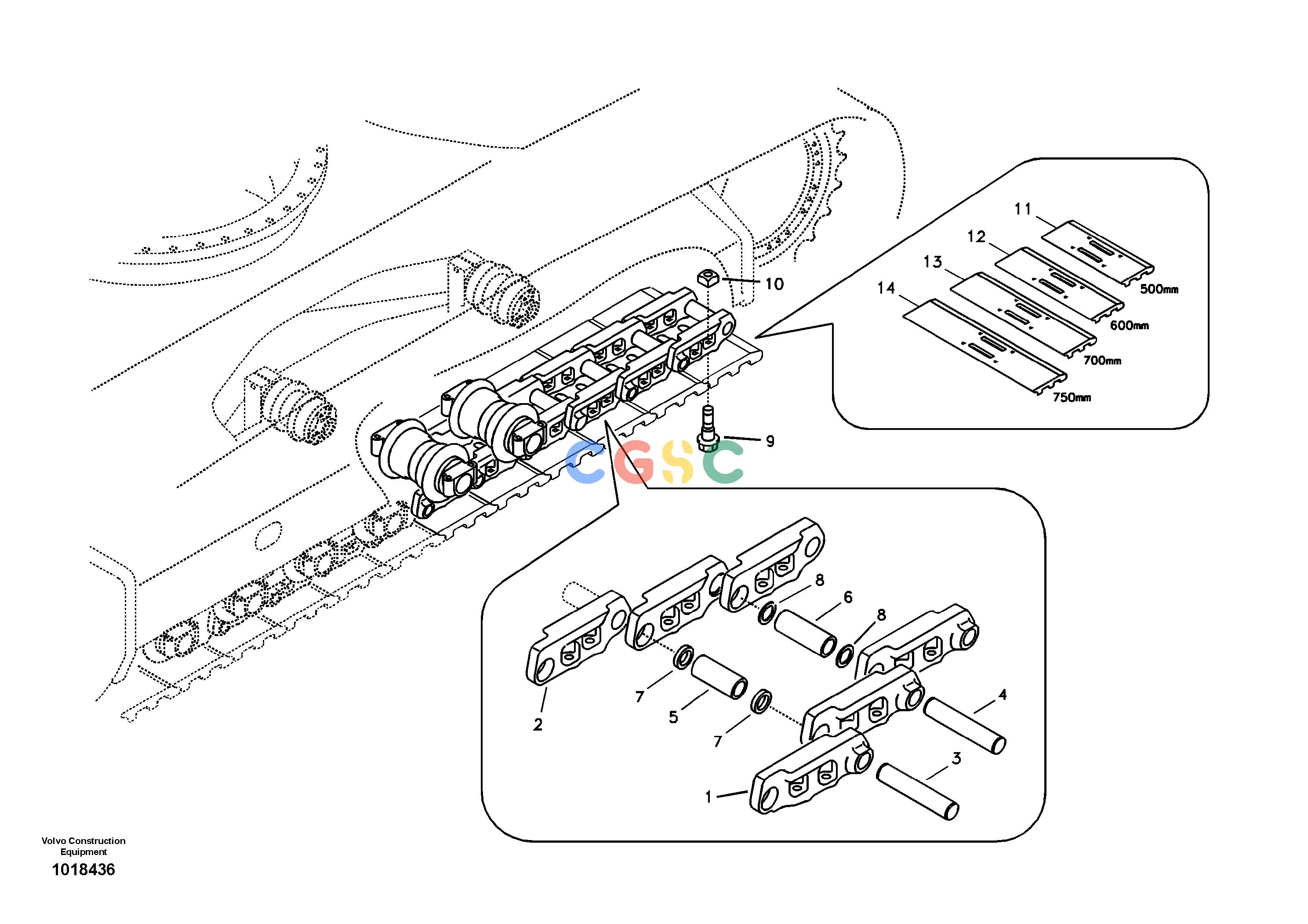

沃尔沃零件查询EC135B Track chainSER NO 20001-200798277925-8277926VOE8277925NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
729 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14529872
|
[2] |
Link
|
S/N -20018
|
| |
VOE14532472
|
[2] |
Link
|
S/N 20019-
|
| 1. |
SA1082-02551
|
[46] |
Link
|
LH
S/N -20018
|
| 1. |
VOE14533871
|
[46] |
Link
|
LH
S/N 20019-
|
| 2. |
SA1082-02561
|
[46] |
Link
|
RH
S/N -20018
|
| 2. |
VOE14533872
|
[46] |
Link
|
RH
S/N 20019-
|
| 3. |
VOE14529873
|
[1] |
Spindle
|
MASTER
S/N -20018
|
| 3. |
VOE14533873
|
[1] |
Pin
|
MASTER
S/N 20019-
|
| 4. |
SA1082-02571
|
[45] |
Pin
|
REGULAR
S/N -20018
|
| 4. |
VOE14533874
|
[45] |
Pin
|
REGULAR
S/N 20019-
|
| 5. |
SA1082-02601
|
[1] |
Bushing
|
MASTER
S/N -20018
|
| 5. |
VOE14533875
|
[1] |
Bushing
|
MASTER
S/N 20019-
|
| 6. |
SA1182-00630
|
[45] |
Bushing
|
REGULAR
S/N -20018
|
| 6. |
VOE14533876
|
[45] |
Bushing
|
REGULAR
S/N 20019-
|
| 7. |
SA1082-02631
|
[2] |
Spacer
|
S/N -20018
|
| 7. |
VOE14533877
|
[2] |
Spacer
|
S/N 20019-
|
| 8. |
SA1182-00640
|
[90] |
Seal
|
S/N -20018
|
| 8. |
VOE14533878
|
[90] |
Seal
|
S/N 20019-
|
| 9. |
VOE14563050
|
[368] |
Bolt
|
|
| 10. |
VOE14663701
|
[368] |
Nut
|
|
| 11. |
VOE14532371
|
[92] |
Track shoe
|
500MM TRI 46
|
| 12. |
VOE14532346
|
|
Track shoe
|
600MM TRI 46
|
| 13. |
VOE14532347
|
|
Track shoe
|
700MM TRI 46
|
| 14. |
VOE14532349
|
|
Track shoe
|
750MM TRI 46
|
