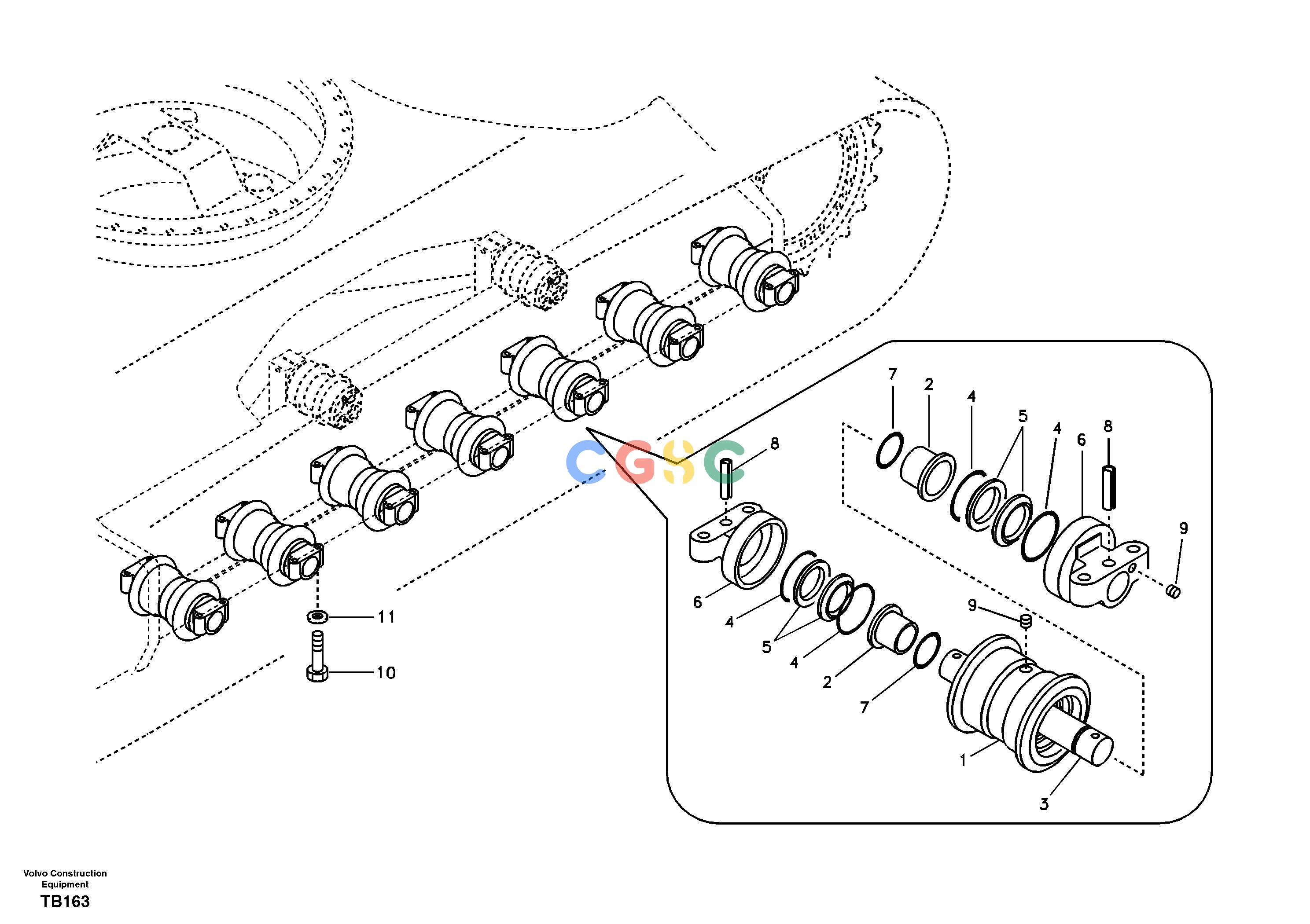

沃尔沃零件查询EC135B Bottom rollerSER NO 20001-200798277950-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
204 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14527280
|
[14] |
Roller
|
|
| 1. |
VOE14527316
|
[1] |
Roller
|
|
| 2. |
VOE14527276
|
[2] |
Bushing
|
|
| 3. |
VOE14532328
|
[1] |
Shaft
|
|
| 4. |
VOE14532292
|
[4] |
O-ring
|
|
| 5. |
VOE14532291
|
[4] |
Ring
|
|
| 6. |
VOE14527320
|
[2] |
Support
|
|
| 7. |
VOE14532312
|
[2] |
O-ring
|
|
| 8. |
VOE14532311
|
[2] |
Pin
|
|
| 9. |
SA9415-43012
|
[1] |
Plug
|
|
| 10. |
VOE978941
|
[56] |
Hexagon screw
|
|
| 11. |
VOE60110299
|
[56] |
Washer
|
|
| 100. |
VOE14502929
|
[1] |
Seal
|
|
