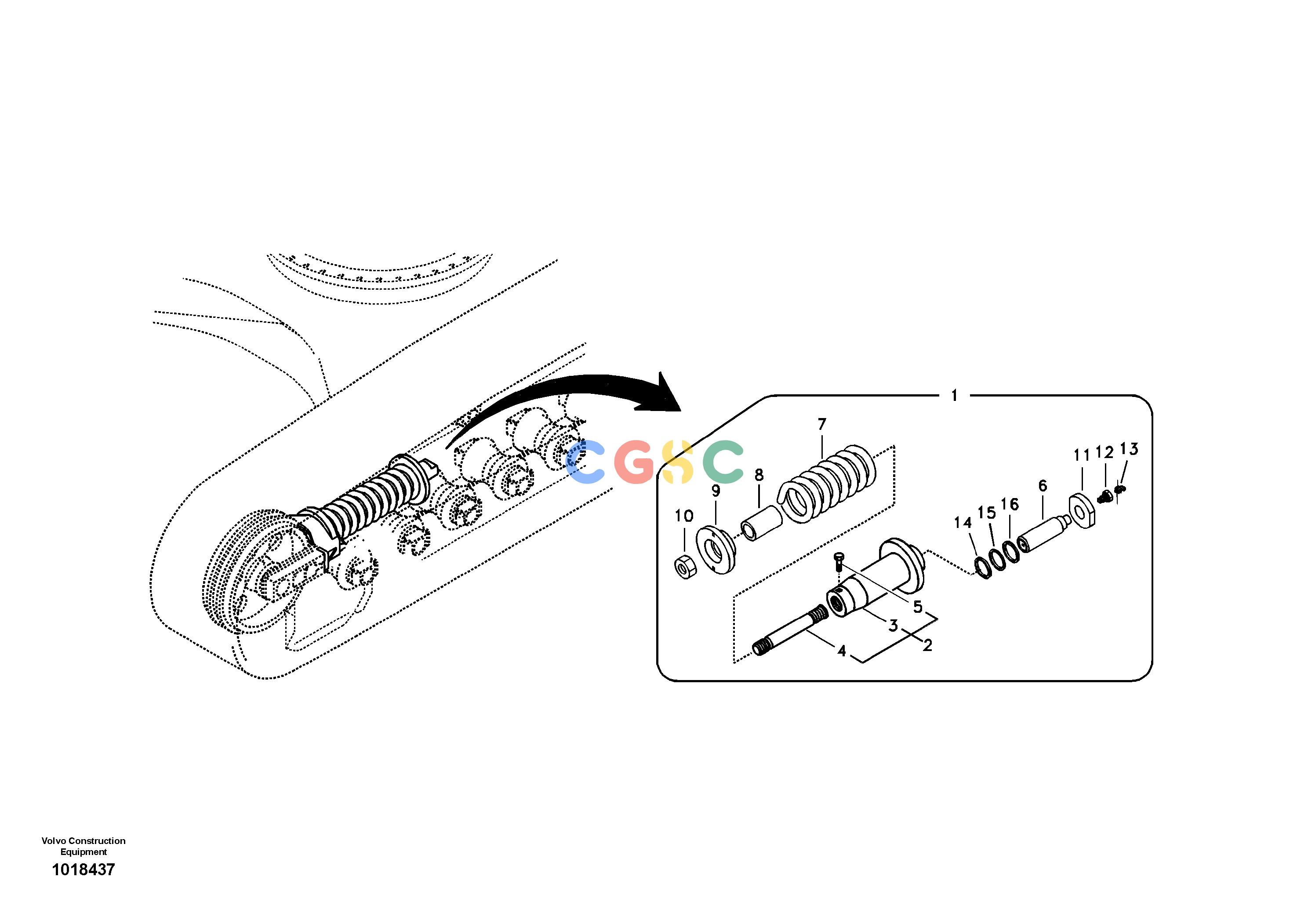

沃尔沃零件查询EC135B Undercarriage, spring packageSER NO 20001-200798277950-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
335 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14535049
|
[2] |
Recoil spring
|
|
| 2. |
VOE14535051
|
[1] |
Body
|
|
| 3. |
VOE14535052
|
[1] |
Body
|
|
| 4. |
VOE14532445
|
[1] |
Rod
|
|
| 5. |
VOE997434
|
[1] |
Hexagon screw
|
|
| 6. |
VOE14535050
|
[1] |
Piston
|
|
| 7. |
VOE14532285
|
[1] |
Spring
|
|
| 8. |
VOE14532446
|
[1] |
Stopper
|
|
| 9. |
VOE14535053
|
[1] |
Plate
|
|
| 10. |
VOE14532448
|
[1] |
Nut
|
|
| 11. |
VOE14532284
|
[1] |
Plate
|
|
| 12. |
VOE14526406
|
[1] |
Valve
|
|
| 13. |
SA9481-11003
|
[1] |
Nipple
|
|
| 14. |
|
[1] |
Packing
|
|
| 15. |
|
[1] |
Ring
|
|
| 16. |
|
[1] |
Seal
|
|
| 100. |
SA8038-00010
|
[1] |
Seal
|
|
