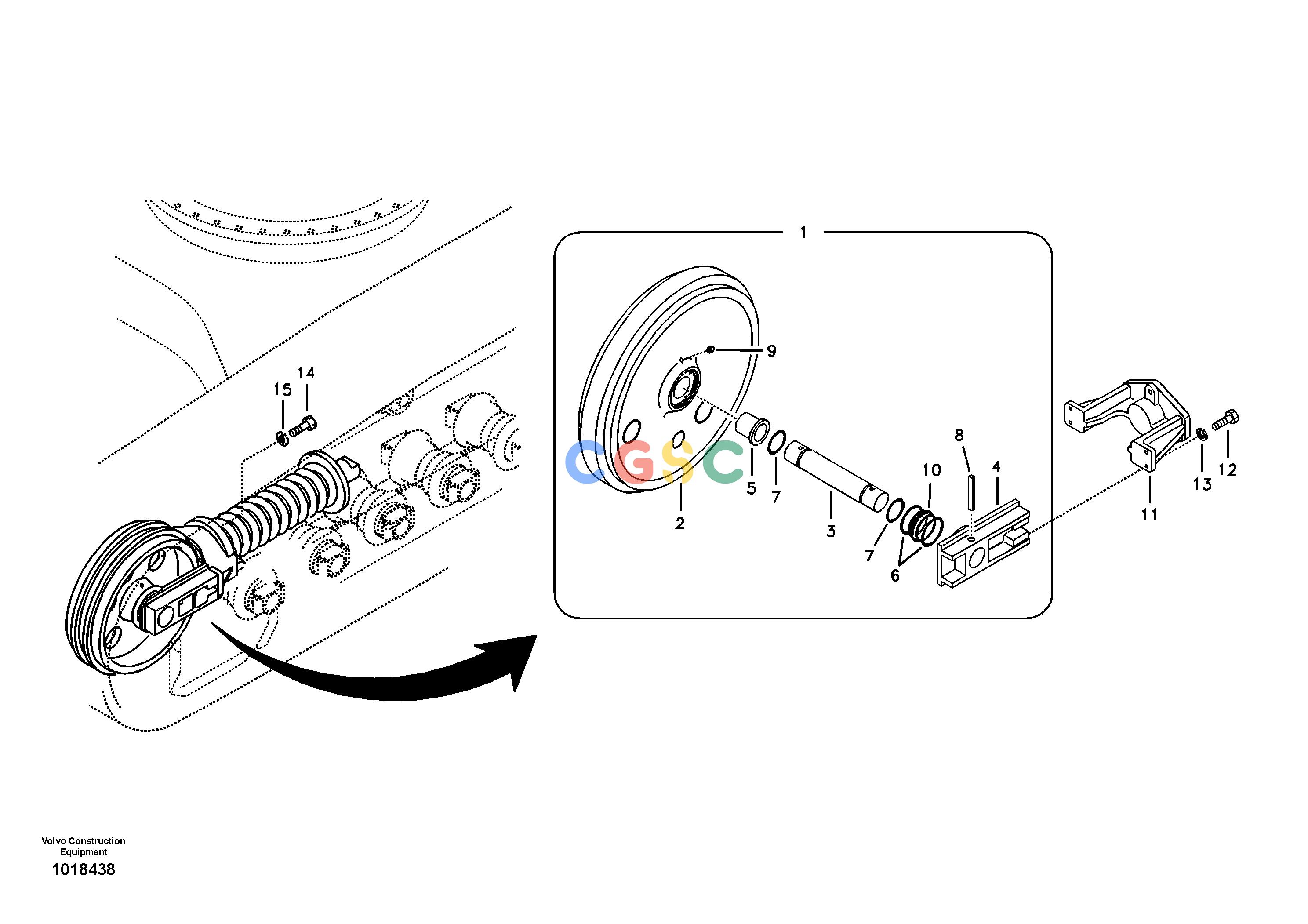

沃尔沃零件查询EC135B Front idlerSER NO 20001-200798277950-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
132 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14532329
|
[2] |
Idler
|
|
| 1. |
VOE14532326
|
[1] |
Idler
|
|
| 2. |
SA1081-04010
|
[1] |
Bearing shell
|
|
| 3. |
VOE14532327
|
[1] |
Shaft
|
|
| 4. |
VOE14514676
|
[2] |
Support
|
|
| 5. |
VOE14532288
|
[2] |
Bushing
|
|
| 6. |
VOE14532292
|
[2] |
O-ring
|
|
| 7. |
VOE14532290
|
[2] |
O-ring
|
|
| 8. |
VOE14532289
|
[2] |
Pin
|
|
| 9. |
VOE14532276
|
[1] |
Plug
|
|
| 10. |
VOE14532291
|
[2] |
Ring
|
|
| 11. |
SA1081-00821
|
[1] |
Bracket
|
|
| 12. |
VOE993029
|
[4] |
Hexagon screw
|
|
| 13. |
VOE955923
|
[4] |
Spring washer
|
|
| 14. |
VOE997462
|
[4] |
Hexagon screw
|
|
| 15. |
VOE955926
|
[4] |
Spring washer
|
|
| 100. |
VOE14502929
|
[2] |
Seal
|
|
