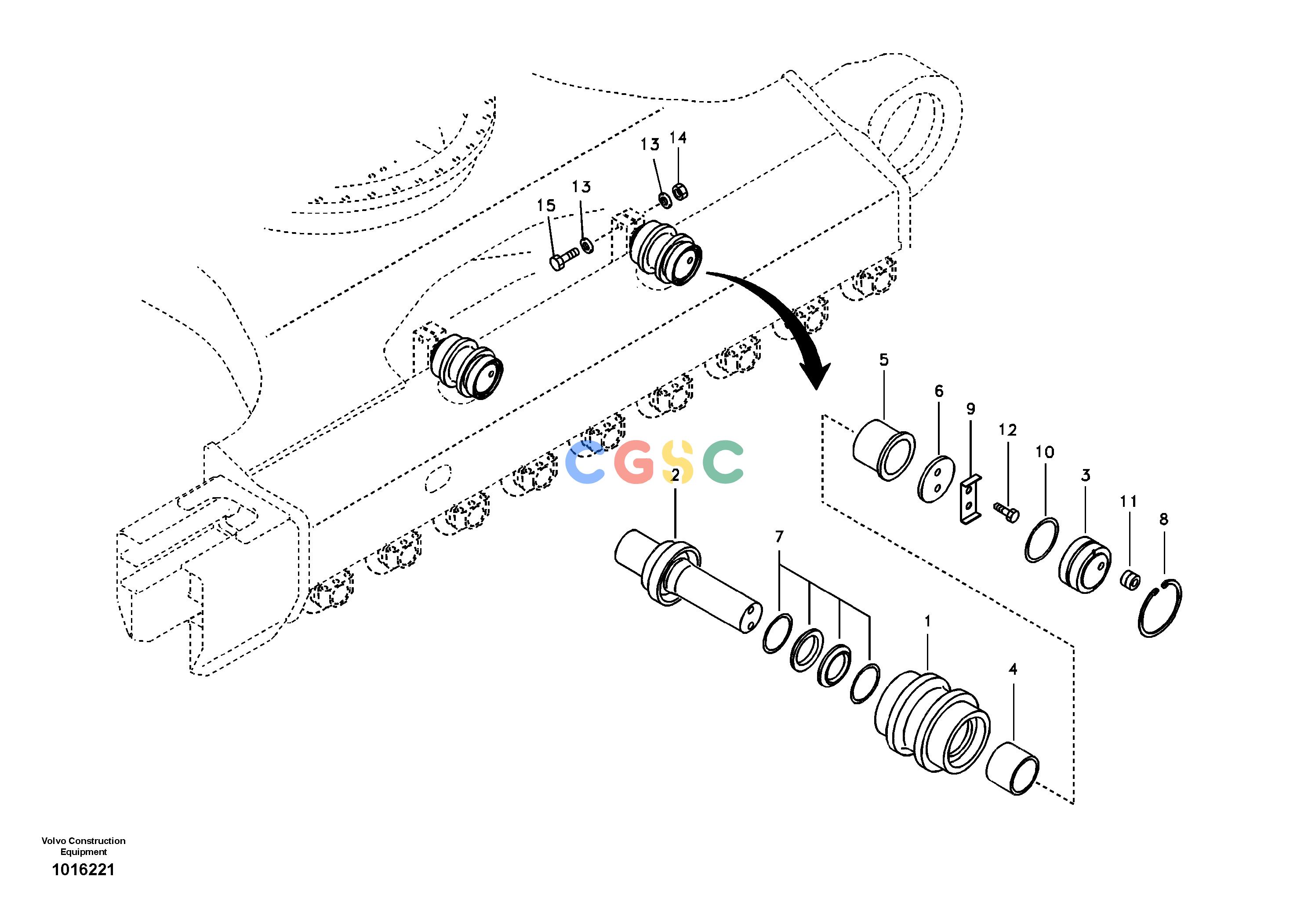

沃尔沃零件查询EC135B Top rollerSER NO 20001-200798277950-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
235 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14532433
|
[2] |
Roller
|
|
| 1. |
SA1181-01110
|
[1] |
Shell
|
|
| 2. |
VOE14532436
|
[1] |
Shaft
|
|
| 3. |
VOE14532437
|
[1] |
Cover
|
|
| 4. |
VOE14532438
|
[1] |
Bushing
|
|
| 5. |
VOE14532439
|
[1] |
Bushing
|
|
| 6. |
VOE14532440
|
[1] |
Plate
|
|
| 7. |
VOE14531427
|
[1] |
Seal
|
|
| |
SA1081-01230
|
[2] |
Ring
|
|
| |
SA1081-01470
|
[2] |
O-ring
|
|
| 8. |
VOE13914536
|
[1] |
Snap ring
|
|
| 9. |
VOE14532278
|
[1] |
Button
|
|
| 10. |
VOE990589
|
[1] |
O-ring
|
|
| 11. |
VOE14532276
|
[1] |
Plug
|
|
| 12. |
VOE983251
|
[2] |
Hexagon screw
|
|
| 13. |
VOE60110287
|
[4] |
Washer
|
|
| 14. |
VOE979022
|
[2] |
Hexagon nut
|
|
| 15. |
VOE990520
|
[2] |
Hexagon screw
|
|
