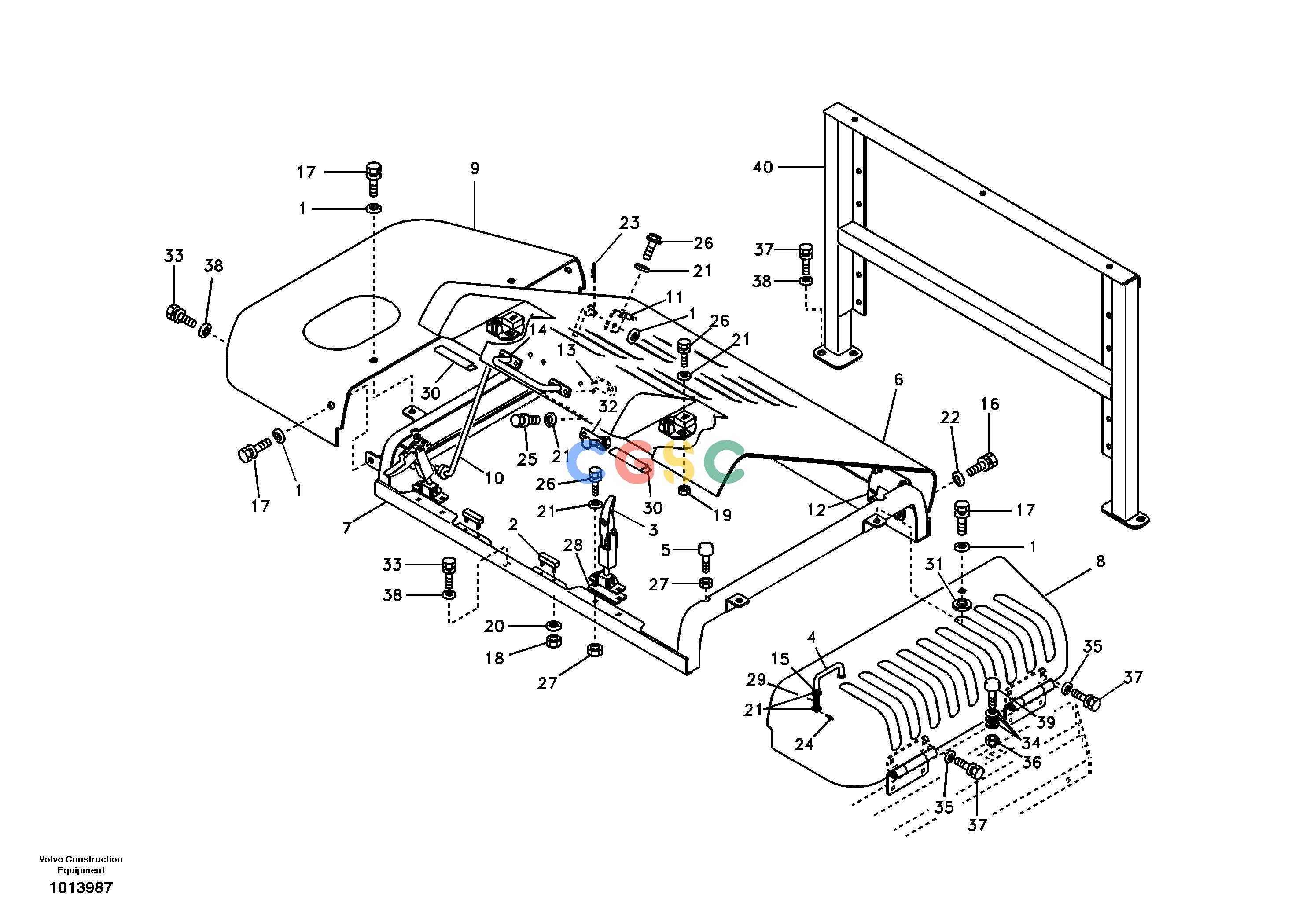

沃尔沃零件查询EC135B Cowl frame, cover and hoodSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
590 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14528590
|
[1] |
Bonnet
|
|
| 1. |
VOE14522862
|
[11] |
Washer
|
|
| 2. |
VOE14527467
|
[2] |
Cushion
|
|
| 3. |
VOE14521945
|
[2] |
Catch
|
|
| 4. |
VOE14527470
|
[1] |
Hand-hold
|
|
| 5. |
VOE14508848
|
[4] |
Bumper
|
|
| 6. |
VOE14528591
|
[1] |
Door
|
|
| 7. |
VOE14510052
|
[1] |
Frame
|
|
| 8. |
VOE14510054
|
[1] |
Cover
|
LH
|
| 9. |
VOE14517709
|
[1] |
Cover
|
RH
|
| 10. |
VOE14510163
|
[1] |
Rod
|
|
| 11. |
VOE14510477
|
[1] |
Plate
|
|
| 12. |
VOE14512752
|
[2] |
Hinge
|
|
| 13. |
VOE14512713
|
[2] |
Clamping plate
|
|
| 14. |
VOE14513443
|
[1] |
Hand-hold
|
|
| 15. |
VOE14514081
|
[2] |
Grommet
|
|
| 16. |
VOE978933
|
[4] |
Hexagon screw
|
|
| 17. |
VOE997446
|
[10] |
Hexagon screw
|
|
| 18. |
SA9131-10500
|
[4] |
Jam nut
|
|
| 19. |
VOE14880450
|
[4] |
Nut
|
|
| 20. |
VOE13940090
|
[4] |
Washer
|
|
| 21. |
VOE993835
|
[18] |
Plain washer
|
|
| 22. |
VOE992042
|
[4] |
Plain washer
|
|
| 23. |
SA9323-02920
|
[1] |
Split Pin
|
|
| 24. |
SA9326-10000
|
[2] |
Pin
|
|
| 25. |
VOE983244
|
[4] |
Hexagon screw
|
|
| 26. |
VOE983244
|
[10] |
Hexagon screw
|
|
| 27. |
VOE983303
|
[8] |
Hexagon nut
|
|
| 28. |
VOE14517728
|
[2] |
Plate
|
|
| 29. |
VOE14517765
|
[2] |
Spring
|
|
| 30. |
VOE14880934
|
[2] |
Weatherstrip
|
|
| 31. |
VOE14881062
|
[2] |
Shim
|
|
| 32. |
VOE14528583
|
[2] |
Bracket
|
|
| 33. |
VOE997446
|
[8] |
Hexagon screw
|
|
| 34. |
VOE993835
|
[3] |
Plain washer
|
|
| 35. |
VOE992042
|
[4] |
Plain washer
|
|
| 36. |
VOE983303
|
[1] |
Hexagon nut
|
|
| 37. |
VOE978933
|
[8] |
Hexagon screw
|
|
| 38. |
VOE14522862
|
[12] |
Washer
|
|
| 39. |
VOE14508848
|
[1] |
Bumper
|
|
| 40. |
VOE14518469
|
[1] |
Support
|
|
