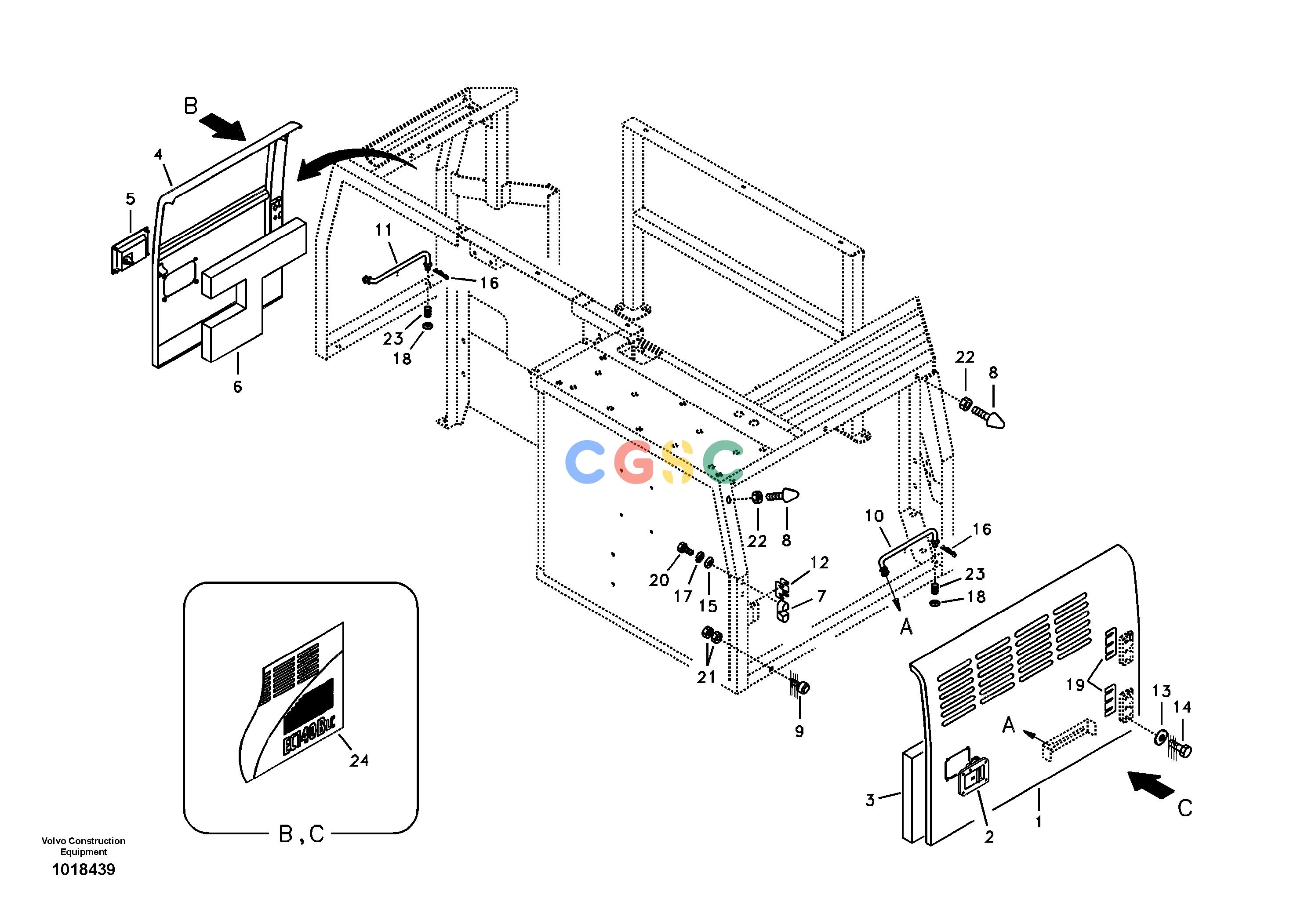

沃尔沃零件查询EC135B Door, sideSER NO 20001-200798277787-8277950NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
338 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14519017
|
[1] |
Door
|
LH
|
| 2. |
VOE14508854
|
[1] |
Latch
|
|
| 3. |
VOE14512372
|
[1] |
Sponge
|
|
| 4. |
VOE14519037
|
[1] |
Door
|
RH
|
| 5. |
VOE14637804
|
[1] |
Latch
|
|
| 6. |
VOE14512374
|
[1] |
Sponge
|
|
| 7. |
VOE14527456
|
[2] |
Door stop
|
|
| 8. |
VOE14527458
|
[3] |
Bolt
|
|
| 9. |
VOE14508848
|
[2] |
Bumper
|
|
| 10. |
VOE14511974
|
[1] |
Rod
|
LH
|
| 11. |
VOE14511975
|
[1] |
Rod
|
RH
|
| 12. |
VOE14514515
|
[2] |
Plate
|
|
| 13. |
VOE14527678
|
[8] |
Washer
|
|
| 14. |
VOE991637
|
[8] |
Hexagon screw
|
|
| 15. |
VOE993835
|
[4] |
Plain washer
|
|
| 16. |
SA9326-10000
|
[2] |
Pin
|
|
| 17. |
VOE955921
|
[4] |
Spring washer
|
|
| 18. |
VOE960148
|
[2] |
Plain washer
|
|
| 19. |
VOE14881062
|
[4] |
Shim
|
|
| 20. |
VOE983243
|
[4] |
Hexagon screw
|
|
| 21. |
VOE983303
|
[2] |
Hexagon nut
|
|
| 22. |
VOE983304
|
[3] |
Hexagon nut
|
|
| 23. |
VOE14517154
|
[2] |
Spring
|
|
| 24. |
VOE14513995
|
|
Decal
|
LC
|
