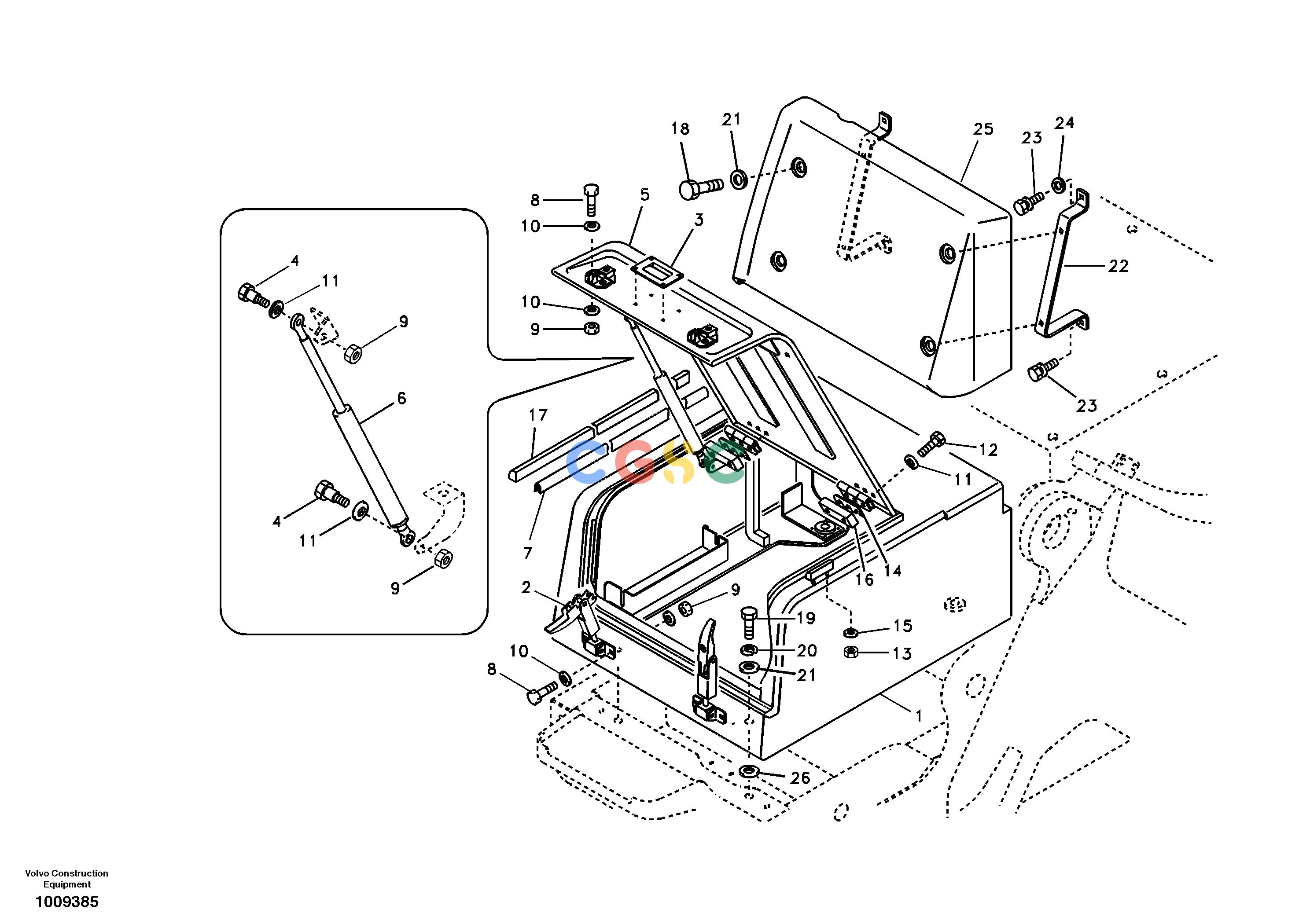

沃尔沃零件查询EC135B Tool box, cowlSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
556 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14525563
|
[1] |
Tool box
|
SER NO 20001-20034
|
| |
VOE14542976
|
[1] |
Tool box
|
SER NO 20035-20279
|
| |
VOE14562339
|
[1] |
Tool box
|
SER NO 20280-
|
| 1. |
VOE14507976
|
[1] |
Body
|
|
| 2. |
VOE14521945
|
[2] |
Catch
|
|
| 3. |
VOE14508837
|
[1] |
Handle
|
SER NO 20001-20279
|
| 4. |
VOE14527463
|
[2] |
Bolt
|
|
| 5. |
VOE14525565
|
[1] |
Door
|
SER NO 20001-20034
|
| |
VOE14542978
|
[1] |
Door
|
SER NO 20035-20279
|
| |
VOE14562340
|
[1] |
Door
|
SER NO 20280-
|
| 6. |
VOE14507978
|
[1] |
Gas Spring
|
|
| 7. |
VOE14880939
|
[1] |
Weatherstrip
|
SER NO 20001-20279
|
| 8. |
VOE983244
|
[8] |
Hexagon screw
|
|
| 9. |
VOE14880450
|
[10] |
Nut
|
|
| 10. |
VOE993835
|
[16] |
Plain washer
|
|
| 11. |
VOE992040
|
[8] |
Plain washer
|
|
| 12. |
VOE983252
|
[6] |
Hexagon screw
|
|
| 13. |
SA9131-10500
|
[4] |
Jam nut
|
|
| 14. |
VOE14881061
|
[2] |
Shim
|
|
| 15. |
VOE13940090
|
[4] |
Washer
|
|
| 16. |
VOE14881056
|
[2] |
Plate
|
|
| 17. |
VOE14521944
|
[1] |
Cushion
|
|
| 18. |
VOE997446
|
[4] |
Hexagon screw
|
|
| 19. |
VOE978935
|
[4] |
Hexagon screw
|
|
| 20. |
VOE955923
|
[4] |
Spring washer
|
|
| 21. |
VOE14522862
|
[8] |
Washer
|
|
| 22. |
VOE14513034
|
[2] |
Support
|
|
| 23. |
VOE946329
|
[4] |
Flange screw
|
|
| 24. |
VOE960148
|
[2] |
Plain washer
|
|
| 25. |
VOE14520745
|
[1] |
Cover
|
|
| 26. |
VOE14881064
|
[4] |
Shim
|
|
