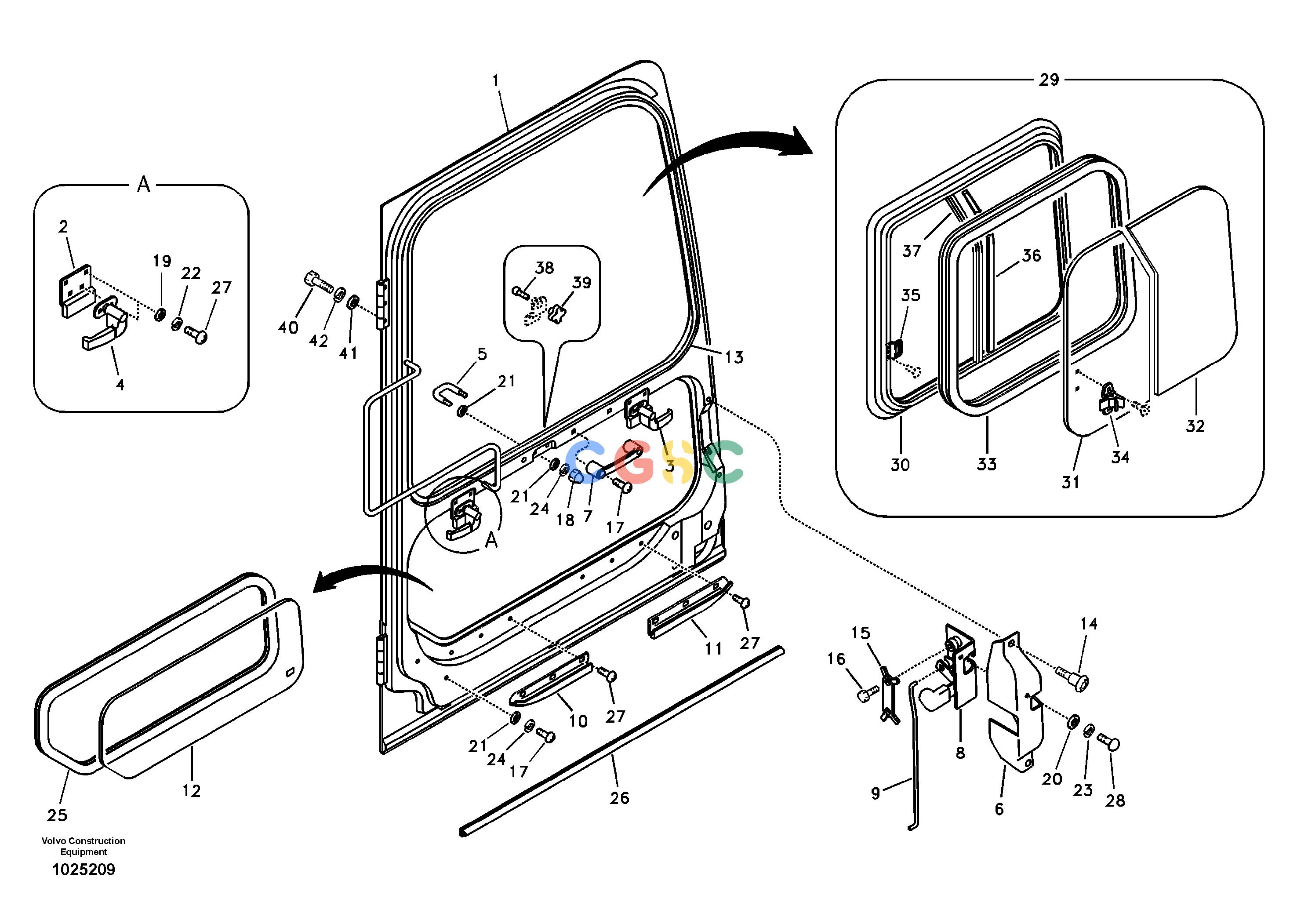

沃尔沃零件查询EC135B Door, operator's cabSER NO 20001-200798277142-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
885 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14520550
|
[1] |
Door
|
|
| 1. |
VOE14517122
|
[1] |
Door
|
|
| 2. |
VOE14506763
|
[2] |
Plate
|
|
| 3. |
VOE14506764
|
[1] |
Handle
|
|
| 4. |
VOE14506765
|
[1] |
Handle
|
|
| 5. |
VOE14506766
|
[1] |
Striker plate
|
|
| 6. |
VOE14506767
|
[1] |
Cover
|
|
| 7. |
VOE14506768
|
[1] |
Handle
|
|
| 8. |
VOE14699400
|
[1] |
Lock
|
|
| 9. |
VOE14506770
|
[1] |
Rod
|
|
| 10. |
VOE14506860
|
[1] |
Stop
|
|
| 11. |
VOE14506861
|
[1] |
Stop
|
|
| 12. |
VOE14508460
|
[1] |
Glass
|
|
| 13. |
VOE14508693
|
[1] |
Seal
|
|
| 14. |
VOE14511328
|
[1] |
Moulding fastener
|
|
| 15. |
VOE14513798
|
[1] |
Plate
|
|
| 16. |
SA9011-20606
|
[2] |
Hexagon screw
|
|
| 17. |
VOE14880445
|
[4] |
Cross recessed screw
|
|
| 18. |
VOE14880424
|
[2] |
Cap nut
|
|
| 19. |
VOE940090
|
[8] |
Plain washer
|
|
| 20. |
VOE955892
|
[1] |
Plain washer
|
|
| 21. |
VOE13955894
|
[6] |
Washer
|
|
| 22. |
VOE955918
|
[8] |
Spring washer
|
|
| 23. |
VOE955919
|
[1] |
Spring washer
|
|
| 24. |
VOE955921
|
[4] |
Spring washer
|
|
| 25. |
VOE14880436
|
[1] |
Weatherstrip
|
|
| 26. |
VOE14515453
|
[1] |
Weatherstrip
|
|
| 27. |
VOE969405
|
[14] |
Six point socket screw
|
|
| 28. |
VOE997500
|
[1] |
Six point socket screw
|
|
| 29. |
VOE14529999
|
[1] |
Window
|
|
| |
VOE14506777
|
[1] |
Stopping device
|
|
| 30. |
VOE14530647
|
[1] |
Frame
|
|
| 31. |
VOE14530648
|
[1] |
Glass
|
|
| 32. |
VOE14530649
|
[1] |
Glass
|
|
| 33. |
VOE14521277
|
[1] |
Weatherstrip
|
|
| 34. |
VOE14515078
|
[1] |
Lock
|
|
| 35. |
VOE14530651
|
[1] |
Catch
|
|
| 36. |
VOE14515081
|
[1] |
Seal
|
|
| 37. |
VOE14530650
|
[1] |
Frame
|
|
| 38. |
VOE14530652
|
[1] |
Stopping device
|
|
| 39. |
VOE14530653
|
[1] |
Knob
|
|
| 40. |
VOE983251
|
[6] |
Hexagon screw
|
|
| 41. |
VOE960148
|
[6] |
Plain washer
|
|
| 42. |
VOE955922
|
[6] |
Spring washer
|
|
