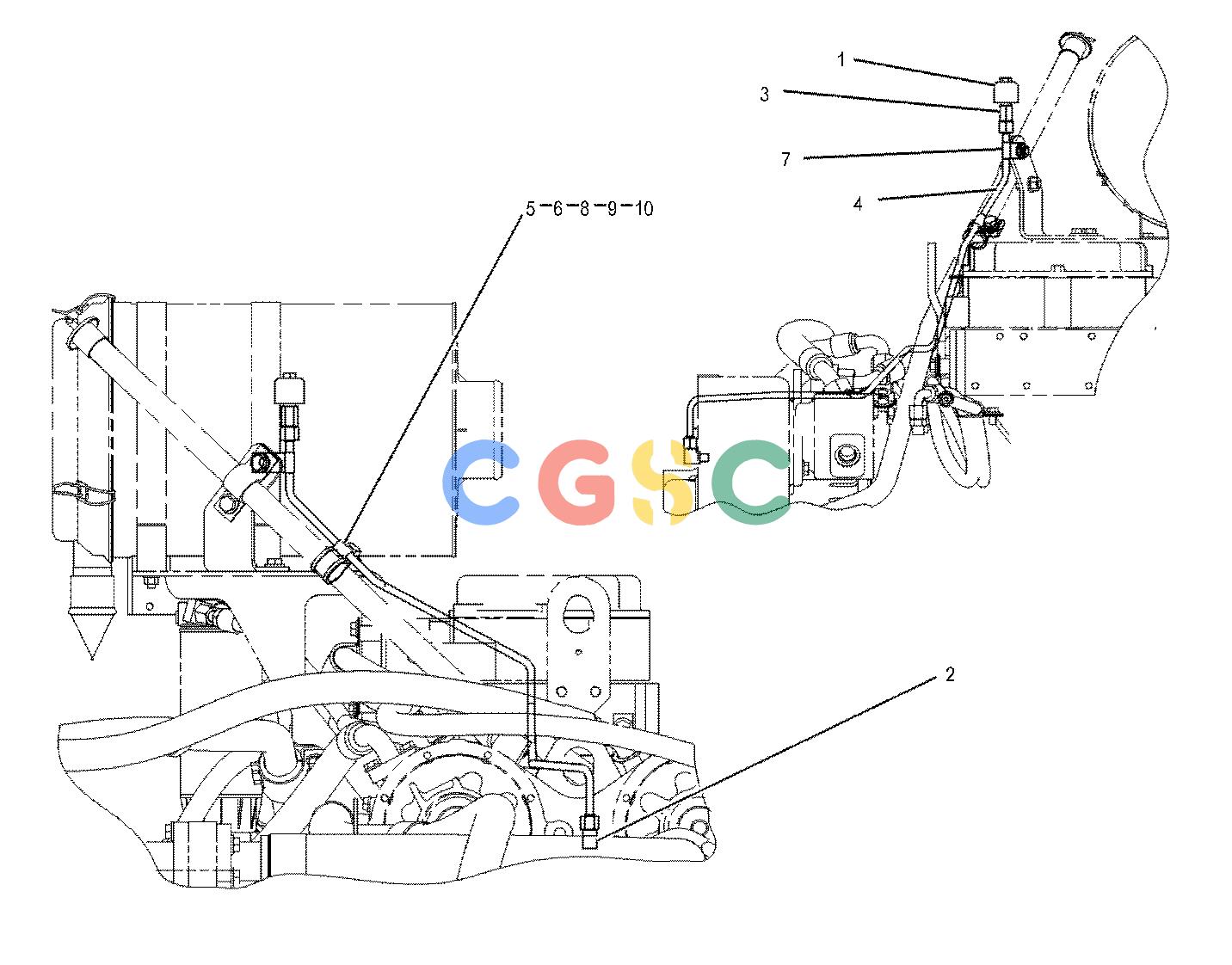

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 4H-6112 | [1] | BREATHER(POWER TRAIN) | |
| 2. | 2T-2305 | [1] | ELBOW | |
| 6V-8397 | [1] | SEAL-O-RING | ||
| 3. | 6V-8397 | [1] | SEAL-O-RING | |
| 7X-7934 | [1] | ADAPTER | ||
| 4. | 202-3066 | [1] | TUBE AS | |
| 5. | 2T-3019 | [1] | CLIP(LOOP) | |
| 6. | 2U-2749 | [1] | CLIP | |
| 7. | 7N-3718 | [1] | CLIP | |
| 8. | 8T-4192M | [1] | BOLT(M12X1.75X25-MM) | |
| 9. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 10. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| M | METRIC PART | |||
