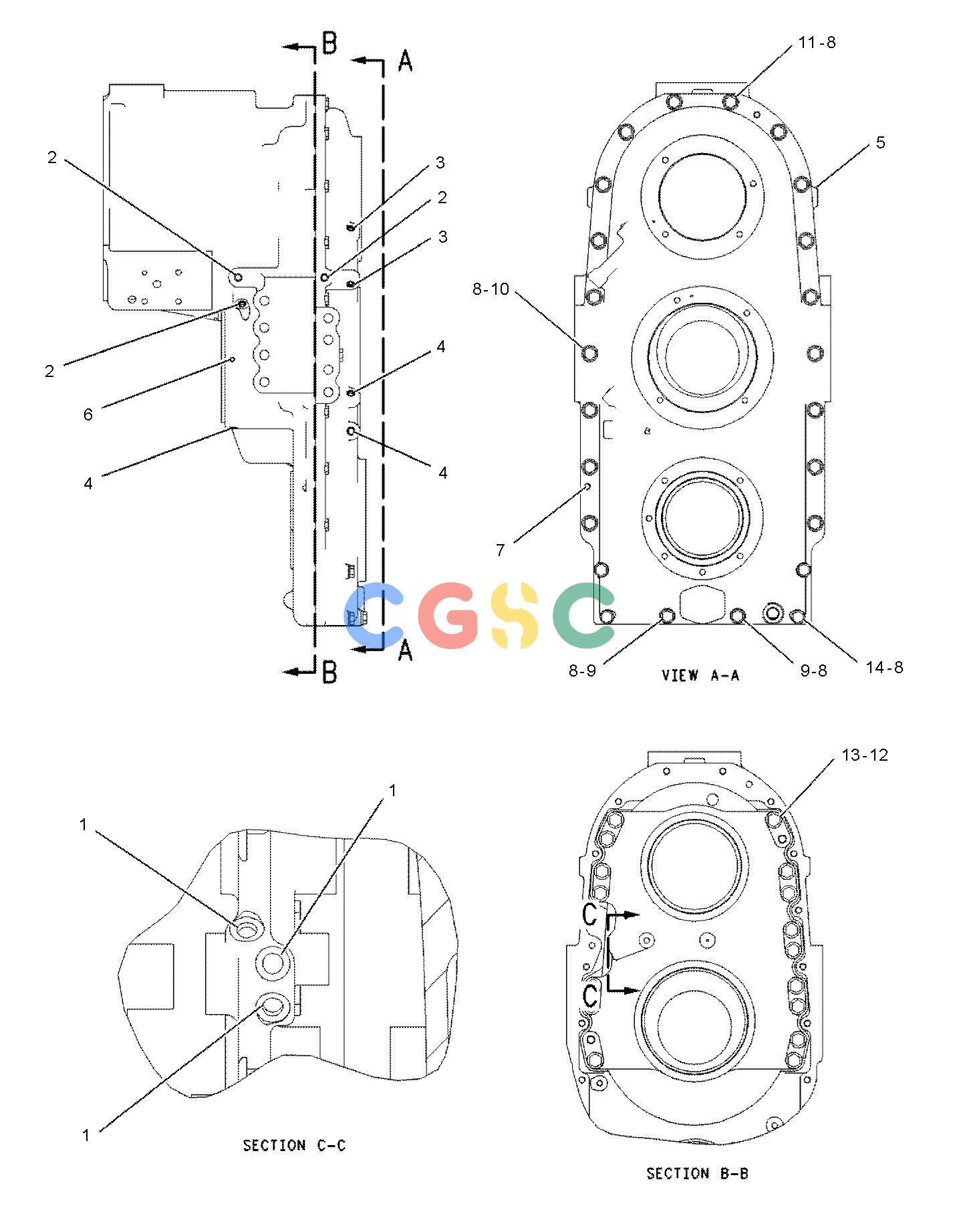

卡特零件查询（725） 148-9304: CASE GP-TRANSFER
广数供应链运营团队, 14 02月, 2025，浏览：
336 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4B-9782 | [3] | BALL | |
| 2. | 7T-6496 | [3] | PLUG | |
| 3. | 9G-9506 | [2] | PLUG | |
| 4. | 9W-6068 | [3] | PLUG | |
| 5. | 197-7900 | [1] | CASE AS | |
| | 5M-7937 | [2] | DOWEL | |
| 6. | 148-9359 | [1] | PLUG | |
| 7. | 5B-5821 | [2] | DOWEL | |
| 8. | 8T-4121 | [24] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4178M | [2] | BOLT(M10X1.5X90-MM) | |
| 10. | 8T-4185M | [2] | BOLT(M10X1.5X50-MM) | |
| 11. | 8T-4195M | [16] | BOLT(M10X1.5X30-MM) | |
| 12. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 13. | 8T-4956M | [16] | BOLT(M12X1.75X35-MM) | |
| 14. | 8T-5005M | [4] | BOLT(M10X1.5X70-MM) | |
| | M | | METRIC PART |
