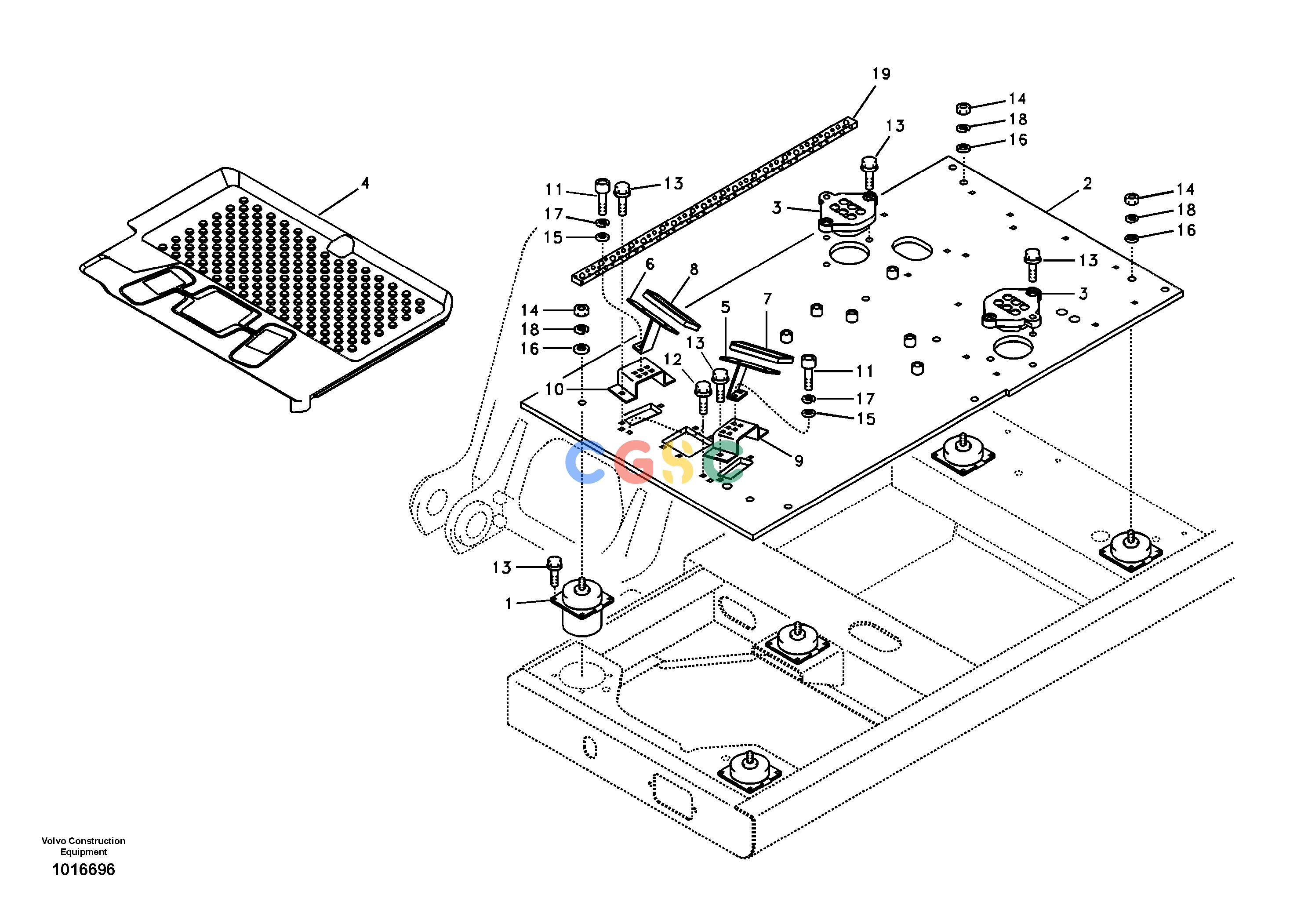

沃尔沃零件查询EC135B Cabin floorSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
952 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14526166
|
[5] |
Bracket
|
|
| 2. |
VOE14503678
|
[1] |
Plate
|
SER NO 20001-20018
|
| |
VOE14540303
|
[1] |
Plate
|
SER NO 20019-
|
| 3. |
VOE14514048
|
[2] |
Seal
|
|
| 4. |
VOE14530488
|
[1] |
Floor
|
SER NO 20001-20018
|
| |
VOE14531641
|
[1] |
Floor
|
SER NO 20019-
|
| 5. |
VOE14521974
|
[1] |
Plate
|
LH
|
| 6. |
VOE14521975
|
[1] |
Plate
|
RH
|
| 7. |
VOE14522035
|
[1] |
Cover
|
LH
|
| 8. |
VOE14522036
|
[1] |
Cover
|
RH
|
| 9. |
VOE14508623
|
[1] |
Bracket
|
|
| 10. |
VOE14508624
|
[1] |
Bracket
|
|
| 11. |
VOE984066
|
[4] |
Hex. socket screw
|
|
| 12. |
VOE946471
|
[4] |
Flange screw
|
|
| 13. |
VOE60113094
|
[30] |
Flange screw
|
|
| 14. |
VOE997410
|
[5] |
Hexagon nut
|
|
| 15. |
VOE13955894
|
[4] |
Washer
|
|
| 16. |
VOE955900
|
[5] |
Plain washer
|
|
| 17. |
VOE955921
|
[4] |
Spring washer
|
|
| 18. |
VOE955926
|
[5] |
Spring washer
|
|
