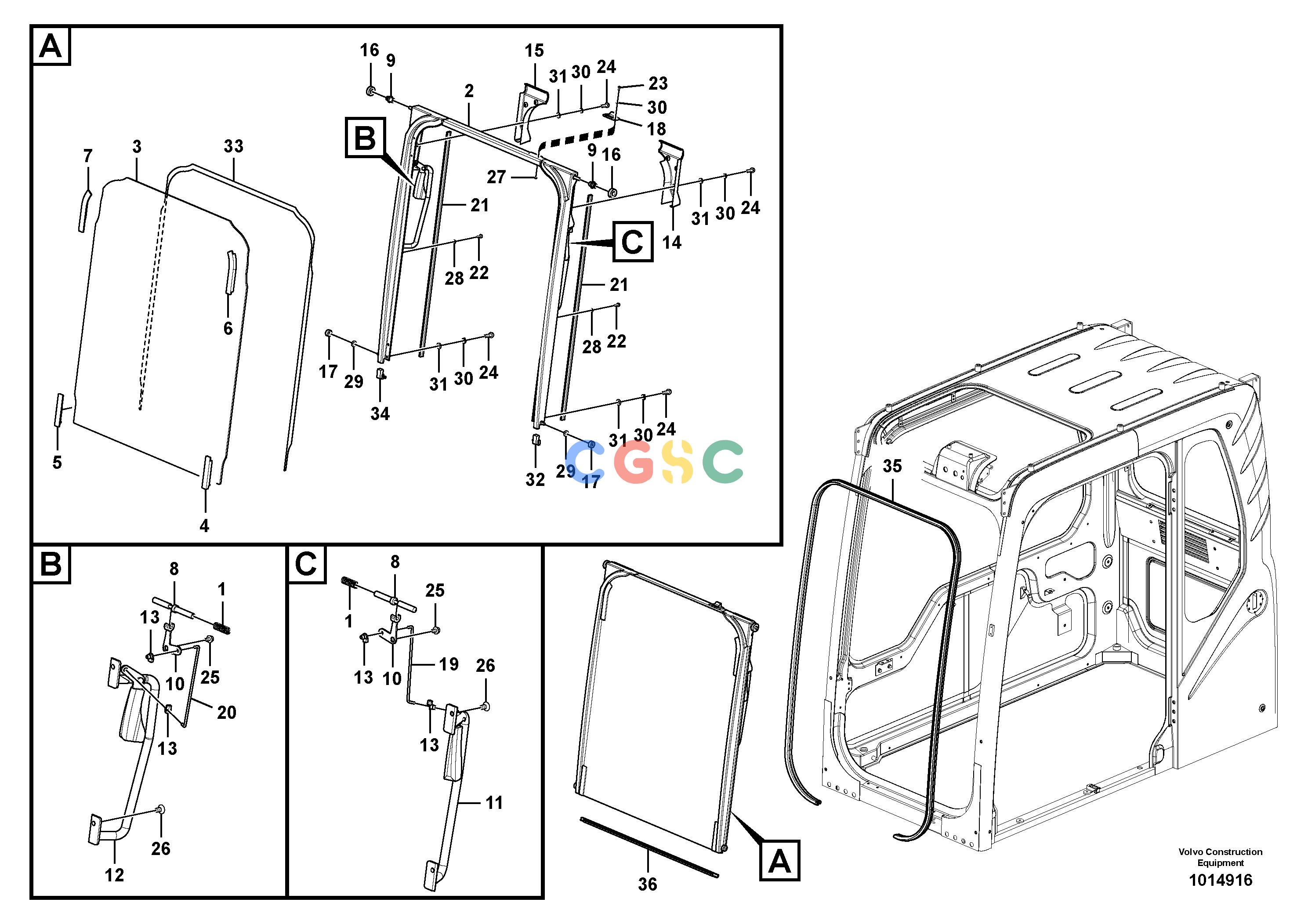

沃尔沃零件查询EC135B WindshieldSER NO 20001-200798277142-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
874 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14506805
|
[1] |
Windscreen
|
|
| 1. |
VOE14527403
|
[2] |
Spring
|
|
| 2. |
VOE14506806
|
[1] |
Shield
|
|
| 3. |
VOE14506807
|
[1] |
Glass
|
|
| 4. |
VOE14506808
|
[1] |
Block
|
|
| 5. |
VOE14506809
|
[1] |
Block
|
|
| 6. |
VOE14506810
|
[1] |
Block
|
|
| 7. |
VOE14506811
|
[1] |
Block
|
|
| 8. |
VOE14506812
|
[2] |
Pin
|
SER NO 20001-20019
|
| |
VOE14538705
|
[2] |
Pin
|
SER NO 20020-
|
| 9. |
VOE14506813
|
[2] |
Bushing
|
|
| 10. |
VOE14506814
|
[2] |
Control lever
|
LH
|
| 11. |
VOE14524719
|
[1] |
Handle
|
|
| 12. |
VOE14524720
|
[1] |
Handle
|
|
| 13. |
VOE14506818
|
[4] |
Fitting
|
|
| 14. |
VOE14506819
|
[1] |
Cover
|
|
| 15. |
VOE14506820
|
[1] |
Cover
|
|
| 16. |
VOE14527692
|
[2] |
Roller
|
|
| 17. |
VOE14527693
|
[2] |
Roller
|
|
| 18. |
VOE14506825
|
[1] |
Stopping device
|
|
| 19. |
VOE14508073
|
[1] |
Rod
|
|
| 20. |
VOE14508074
|
[1] |
Rod
|
|
| 21. |
VOE14508377
|
[2] |
Weatherstrip
|
|
| 22. |
VOE969515
|
[2] |
Six point socket screw
|
|
| 23. |
VOE969405
|
[2] |
Six point socket screw
|
|
| 24. |
VOE969407
|
[14] |
Six point socket screw
|
|
| 25. |
VOE965175
|
[2] |
Flange screw
|
|
| 26. |
VOE969841
|
[4] |
Six point socket screw
|
|
| 27. |
VOE14880423
|
[2] |
Cap nut
|
|
| 28. |
VOE14880426
|
[2] |
Washer
|
|
| 29. |
VOE13955894
|
[2] |
Washer
|
|
| 30. |
VOE955918
|
[16] |
Spring washer
|
|
| 31. |
VOE940090
|
[14] |
Plain washer
|
|
| 32. |
VOE14520282
|
[1] |
Plug
|
LH
|
| 33. |
VOE14517763
|
[1] |
Rubber plate
|
|
| 34. |
VOE14520283
|
[1] |
Plug
|
RH
|
| 35. |
VOE14508497
|
[1] |
Weatherstrip
|
|
| 36. |
VOE14510496
|
[1] |
Channel
|
|
