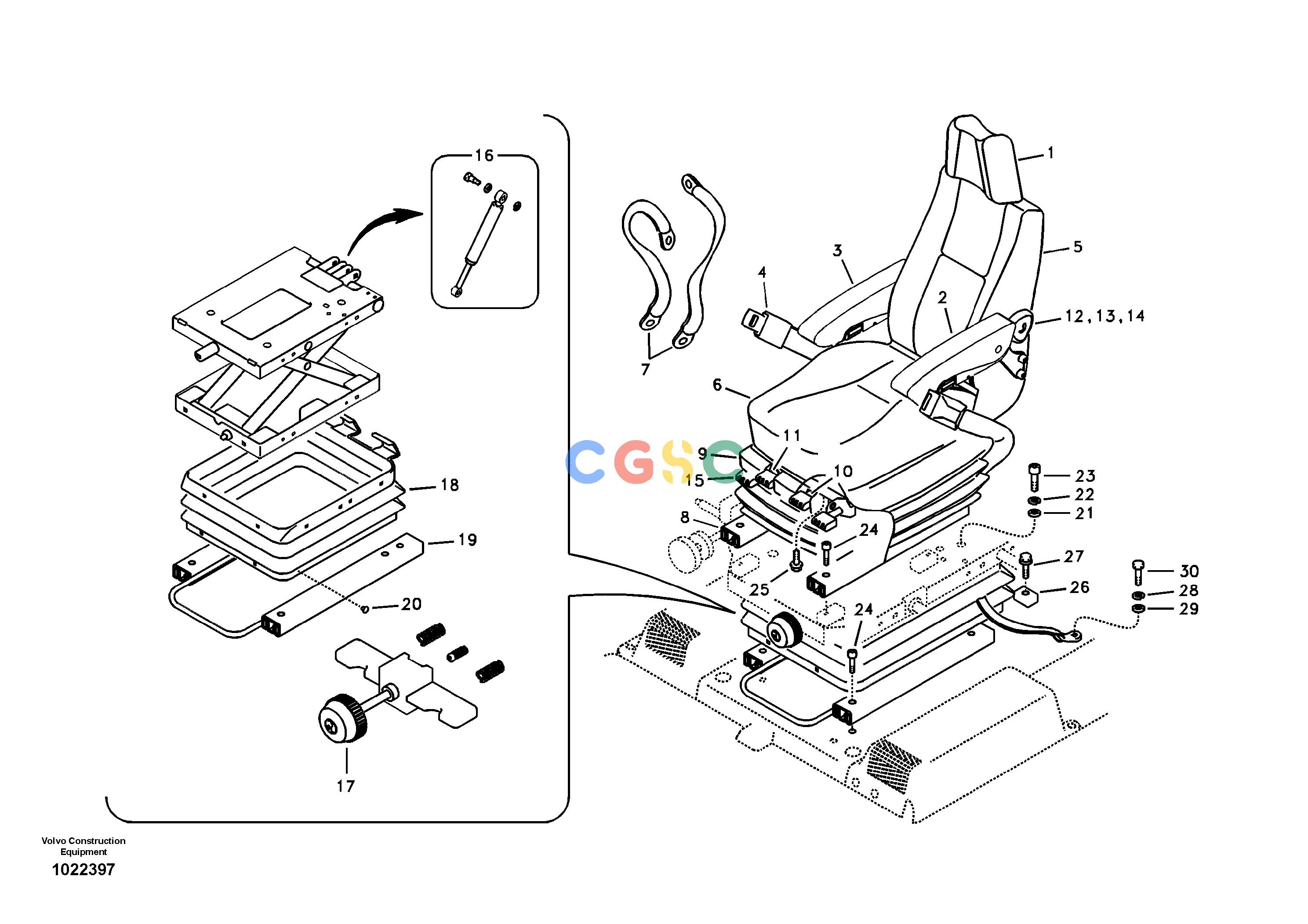

沃尔沃零件查询EC135B Operator seat with fitting partsSER NO 20001-200798277143-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
755 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14659740
|
[1] |
Seat
|
|
| 1. |
SA2067-00100
|
[1] |
Head restraint
|
|
| 2. |
VOE14551181
|
[1] |
Arm rest
|
|
| 3. |
VOE14551182
|
[1] |
Arm rest
|
|
| 4. |
VOE14553766
|
[1] |
Seat belt
|
|
| 5. |
VOE14521384
|
[1] |
Backrest cushion
|
|
| |
VOE14513755
|
[1] |
Cover
|
|
| 6. |
VOE14521385
|
[1] |
Seat cushion
|
|
| |
VOE14513756
|
[1] |
Cover
|
|
| 7. |
VOE14513753
|
[1] |
Belt
|
|
| 8. |
VOE14513757
|
[1] |
Slide block
|
|
| 9. |
VOE14513758
|
[1] |
Bellows
|
|
| 10. |
VOE14517890
|
[1] |
Lever kit
|
LO SLIDE
|
| 11. |
VOE14517891
|
[1] |
Lever kit
|
UP SLIDE
|
| 12. |
VOE11715069
|
[1] |
Lumbar support
|
|
| 13. |
VOE14501383
|
[1] |
Cable
|
|
| 14. |
VOE14527286
|
[1] |
Knob
|
|
| 15. |
VOE14538608
|
[1] |
Slide
|
|
| |
VOE14521988
|
[1] |
Support
|
|
| 16. |
VOE14528085
|
[1] |
Damper
|
|
| 17. |
VOE14513765
|
[1] |
Adjusting device
|
|
| 18. |
VOE14536523
|
[1] |
Bellows
|
|
| 19. |
VOE14513761
|
[1] |
Spool
|
|
| 20. |
VOE14518572
|
[0001] |
Clip kit
|
|
| 21. |
VOE13955894
|
[4] |
Washer
|
|
| 22. |
VOE955921
|
[4] |
Spring washer
|
|
| 23. |
VOE984077
|
[4] |
Hex. socket screw
|
|
| 24. |
VOE984064
|
[8] |
Hex. socket screw
|
|
| 25. |
VOE946544
|
[2] |
Flange screw
|
|
| 26. |
VOE14503686
|
[1] |
Bracket
|
|
| 27. |
VOE60113082
|
[2] |
Flange screw
|
|
| 28. |
VOE955922
|
[2] |
Spring washer
|
|
| 29. |
VOE960148
|
[2] |
Plain washer
|
|
| 30. |
VOE983256
|
[2] |
Hexagon screw
|
|
