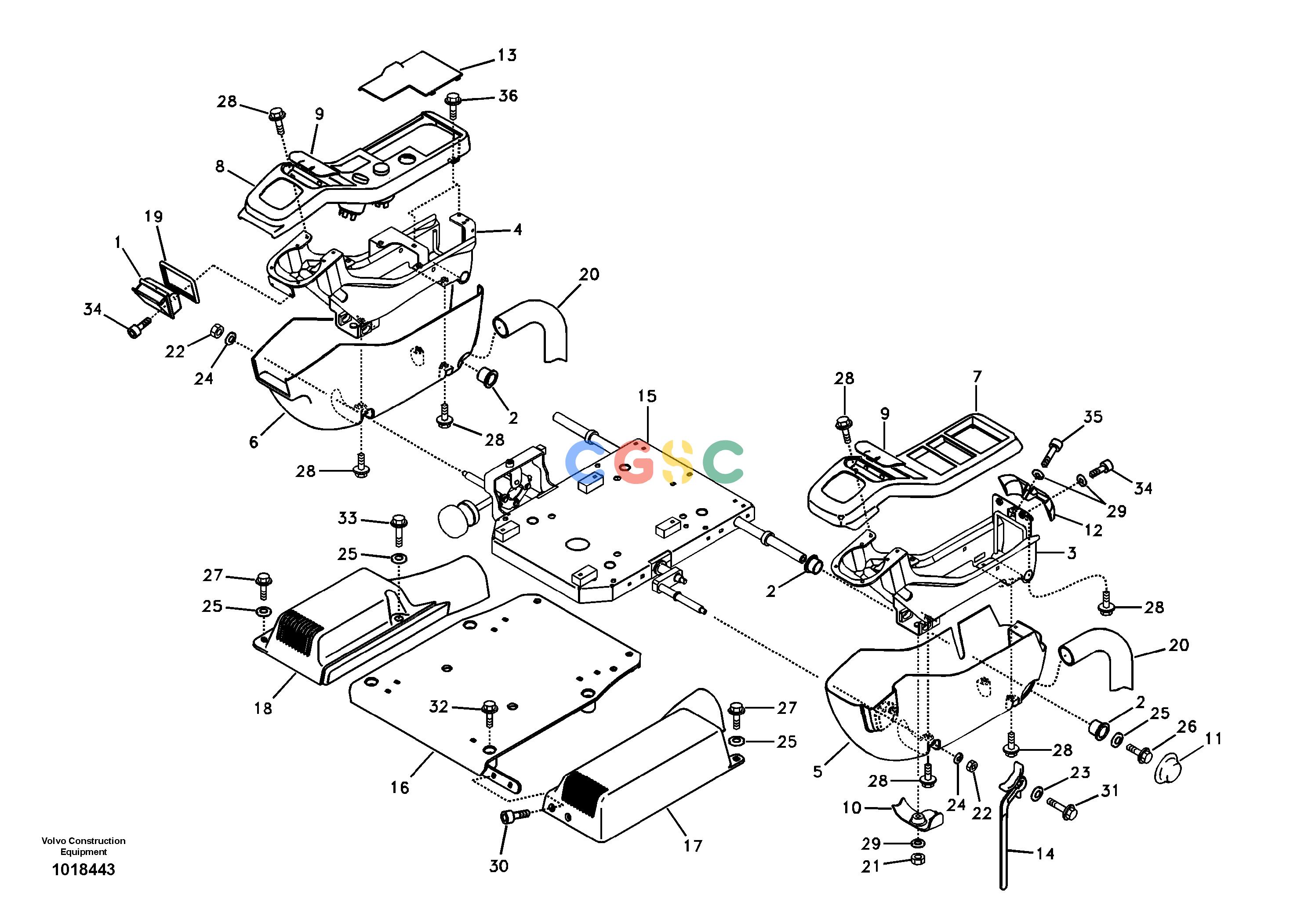

沃尔沃零件查询EC135B Instrument panel, control panelSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
945 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14526153
|
[1] |
Ashtray
|
|
| 2. |
VOE14523095
|
[4] |
Bushing
|
|
| 3. |
VOE14508313
|
[1] |
Support
|
|
| 4. |
VOE14535490
|
[1] |
Support
|
S/N 10001-12923
|
| |
VOE14567680
|
[1] |
Support
|
S/N 12924-
|
| 5. |
VOE14508315
|
[1] |
Cover
|
|
| 6. |
VOE14508316
|
[1] |
Cover
|
|
| 7. |
VOE14531638
|
[1] |
Cover
|
|
| 8. |
VOE14595820
|
[1] |
Cover
|
|
| 9. |
VOE14508319
|
[2] |
Clip
|
|
| 10. |
VOE14508320
|
[1] |
Clip
|
|
| 11. |
VOE14508321
|
[1] |
Clip
|
|
| 12. |
VOE14508322
|
[1] |
Clip
|
|
| 13. |
VOE14508323
|
[1] |
Cover
|
|
| 14. |
VOE14508324
|
[1] |
Control lockout lever
|
|
| 15. |
VOE14508352
|
[1] |
Support
|
|
| 16. |
VOE14508395
|
[1] |
Support
|
|
| 17. |
VOE14508396
|
[1] |
Cover
|
|
| 18. |
VOE14508397
|
[1] |
Cover
|
|
| 19. |
VOE14508442
|
[1] |
Seal
|
|
| 20. |
VOE14515539
|
[2] |
Cover
|
|
| 21. |
VOE14880449
|
[1] |
Lock nut
|
|
| 22. |
VOE14880450
|
[2] |
Nut
|
|
| 23. |
SA9285-11000
|
[1] |
Plain washer
|
|
| 24. |
VOE11117464
|
[2] |
Plain washer
|
|
| 25. |
SA9285-16000
|
[6] |
Plain washer
|
|
| 26. |
VOE946471
|
[2] |
Flange screw
|
|
| 27. |
VOE60113094
|
[3] |
Flange screw
|
|
| 28. |
VOE946544
|
[0010] |
Flange screw
|
|
| 29. |
VOE955892
|
[4] |
Plain washer
|
|
| 30. |
VOE969843
|
[2] |
Six point socket screw
|
|
| 31. |
VOE965175
|
[1] |
Flange screw
|
|
| 32. |
VOE965186
|
[4] |
Flange screw
|
|
| 33. |
VOE13965187
|
[1] |
Screw
|
|
| 34. |
VOE969422
|
[4] |
Six point socket screw
|
|
| 35. |
VOE969587
|
[1] |
Six point socket screw
|
|
| 36. |
VOE965175
|
[2] |
Flange screw
|
|
