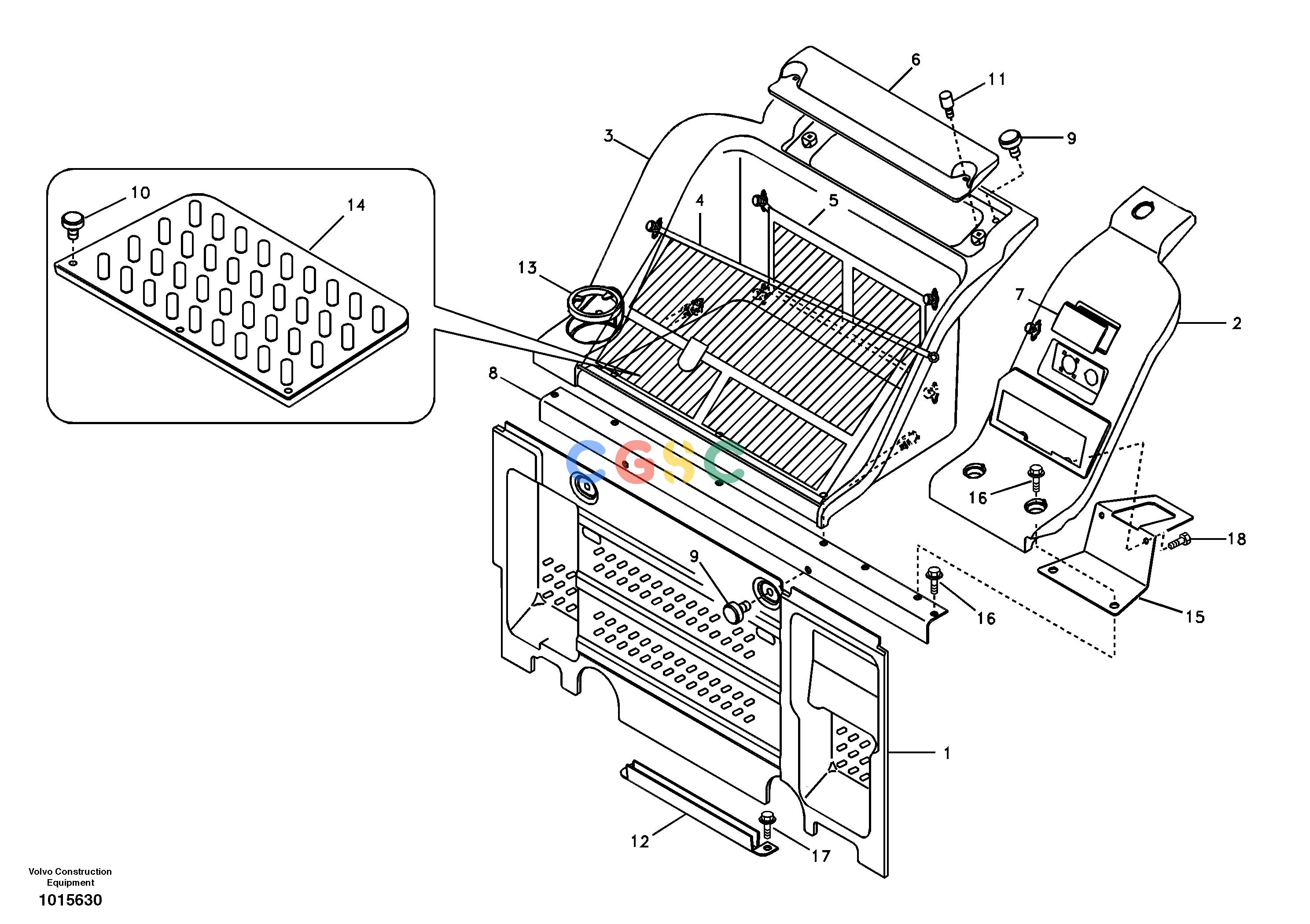

沃尔沃零件查询EC135B Instrument panel, radio panelSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
745 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14508088
|
[1] |
Cover
|
|
| 2. |
VOE14530485
|
[1] |
Cover
|
|
| 3. |
VOE14530487
|
[1] |
Cover
|
|
| 4. |
VOE14530481
|
[1] |
Net
|
|
| 5. |
VOE14530482
|
[1] |
Net
|
|
| 6. |
VOE14508095
|
[1] |
Cover
|
|
| 7. |
VOE14508094
|
[1] |
Cover
|
|
| 8. |
VOE14508091
|
[1] |
Support
|
|
| 9. |
VOE14508096
|
[4] |
Knob
|
|
| 10. |
VOE14508097
|
[3] |
Knob
|
|
| 11. |
VOE14508098
|
[2] |
Knob
|
|
| 12. |
VOE14508099
|
[1] |
Channel
|
|
| 13. |
VOE14508100
|
[1] |
Cup holder
|
|
| 14. |
VOE14530489
|
[1] |
Floor mat
|
|
| 15. |
VOE14523088
|
[1] |
Support
|
|
| 16. |
VOE946440
|
[5] |
Flange screw
|
|
| 17. |
VOE946441
|
[2] |
Flange screw
|
|
| 18. |
VOE983241
|
[2] |
Hexagon screw
|
|
