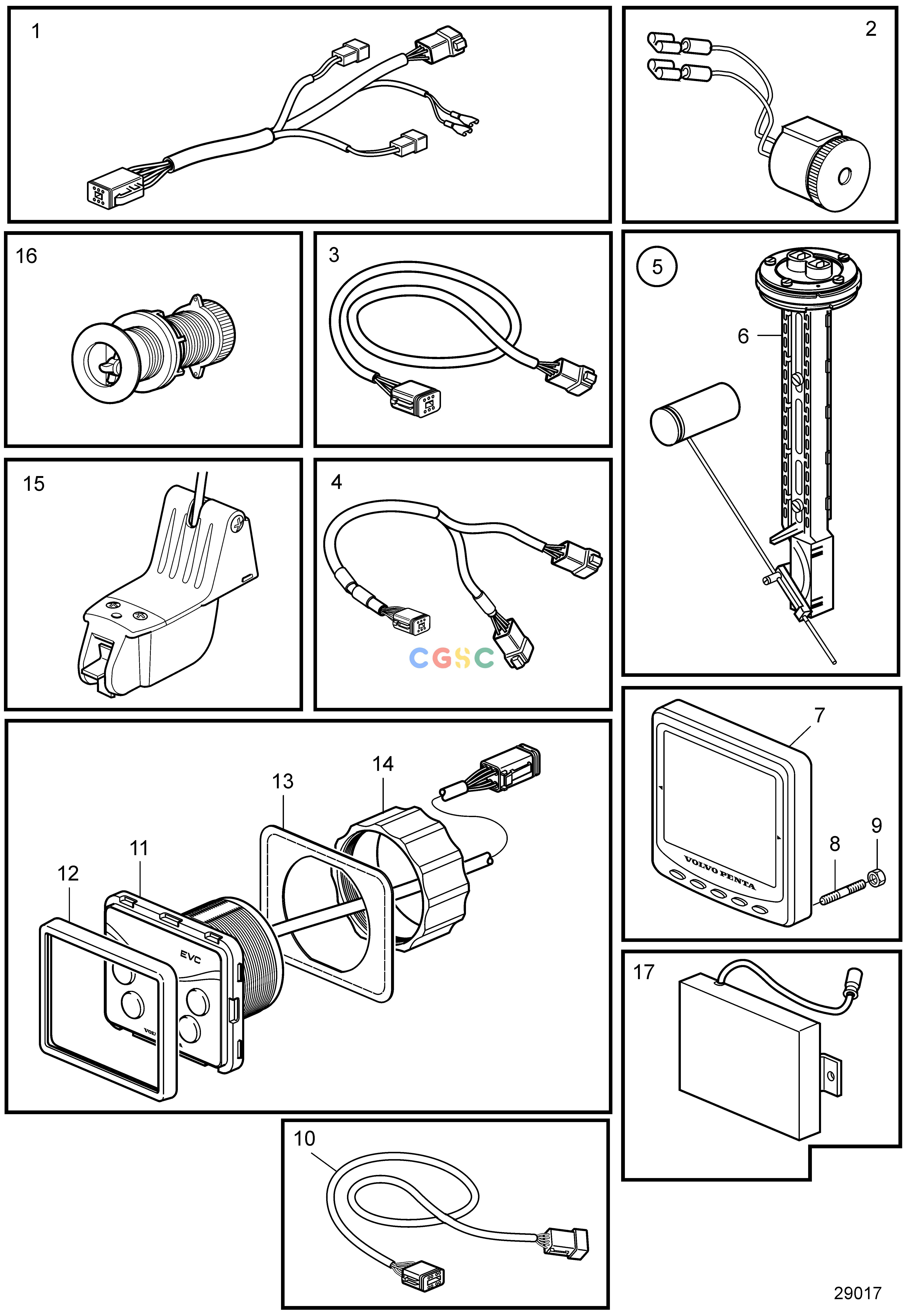

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FElectrical SystemEVC Control Unit and Cables D1-D2EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
898 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3888589
|
[1] |
Wiring harness
|
|
| 2. |
3817974
|
[1] |
Alarm
|
|
| 3. |
3889410
|
[1] |
Extension cable
|
L=1500mm
|
| 3. |
3842733
|
[1] |
Extension cable
|
L=3000mm
|
| 3. |
3842734
|
[1] |
Extension cable
|
L=5000mm
|
| 3. |
3842735
|
[1] |
Extension cable
|
L=7000mm
|
| 3. |
3842736
|
[1] |
Extension cable
|
L=9000mm
|
| 3. |
3842737
|
[1] |
Extension cable
|
L=11000mm
|
| 4. |
3588206
|
[1] |
Cable kit, y-split
|
|
| 4. |
874760
|
[1] |
Cable kit
|
For secondary helm station
|
| 5. |
3812291
|
[1] |
Sensor kit
|
Replaced by 21575479
|
| 5. |
21575479
|
[1] |
Sensor kit
|
|
| 6. |
873772
|
[1] |
Tank sensor
|
|
| 7. |
21173162
|
[1] |
Display
|
|
| 8. |
830928
|
[4] |
Stud
|
|
| 9. |
830930
|
[4] |
Wing nut
|
|
| 10. |
3588207
|
[1] |
Cable kit
|
|
| 11. |
21144348
|
[1] |
Control panel
|
Replaced by 21785135
|
| 11. |
21785135
|
[1] |
Control panel
|
|
| 12. |
3808131
|
[1] |
Frame
|
Replaced by 21467057
|
| 12. |
21467057
|
[1] |
Frame
|
|
| 13. |
3808135
|
[1] |
Gasket
|
|
| 14. |
3808134
|
[1] |
Nut
|
|
| 15. |
3587055
|
[1] |
Sensor
|
Mounted on transom
|
| 16. |
3587054
|
[1] |
Sensor
|
Through hull
|
| 17. |
3889758
|
[1] |
Converter
|
|
