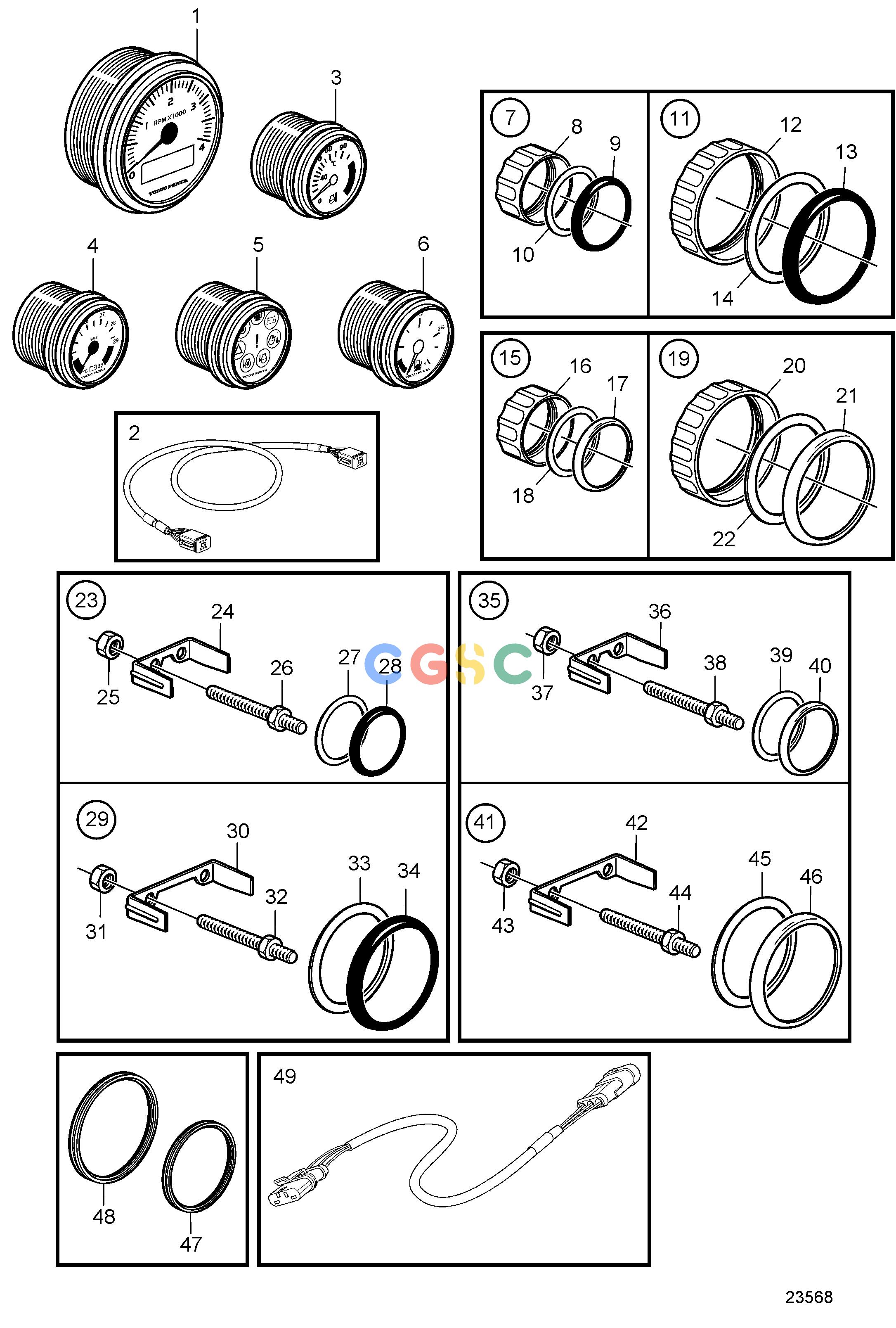

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FElectrical SystemEVC Electrical Materials and Instrument D1-D2EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
205 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3885694
|
[1] |
Tachometer
|
Black, 4000rpm
|
| 1. |
3885695
|
[1] |
Tachometer
|
White, 4000rpm
|
| 2. |
3886666
|
[1] |
Cable
|
L=1500mm
|
| 2. |
21166002
|
[1] |
Wiring harness
|
L=7000mm
|
| 2. |
21166003
|
[1] |
Wiring harness
|
L=9000mm
|
| 2. |
21166004
|
[1] |
Wiring harness
|
L=13000mm
|
| 3. |
874904
|
[1] |
Thermometer, coolant water
|
Black 0-120°C
|
| 3. |
874921
|
[1] |
Thermometer, coolant water
|
White 0-120°C
|
| 3. |
874918
|
[1] |
Thermometer, coolant water
|
Black 40-250 °F
|
| 3. |
874931
|
[1] |
Thermometer, coolant water
|
White 40-250 °F
|
| 4. |
881649
|
[1] |
Voltmeter
|
12V, black
|
| 4. |
881658
|
[1] |
Voltmeter
|
12V, white
|
| 5. |
874915
|
[1] |
Instrument, alarm
|
Black D=52mm
|
| 5. |
874927
|
[1] |
Instrument, alarm
|
White D=52mm
|
| 6. |
874914
|
[1] |
Fuel gauge
|
Black D=52mm
|
| 6. |
874926
|
[1] |
Fuel gauge
|
White D=52mm
|
| 7. |
874709
|
[1] |
Mounting kit
|
Black D=52mm
|
| 8. |
874450
|
[1] |
Attaching ring
|
|
| 9. |
874448
|
[1] |
Ring
|
|
| 10. |
874707
|
[1] |
Gasket
|
|
| 11. |
874708
|
[1] |
Mounting kit
|
Black D=85mm
|
| 12. |
874449
|
[1] |
Attaching ring
|
|
| 13. |
874447
|
[1] |
Ring
|
|
| 14. |
874706
|
[1] |
Gasket
|
|
| 15. |
874733
|
[1] |
Mounting kit
|
Chrome D=52mm
|
| 16. |
874450
|
[1] |
Attaching ring
|
|
| 17. |
874731
|
[1] |
Ring
|
|
| 18. |
874707
|
[1] |
Gasket
|
|
| 19. |
874732
|
[1] |
Mounting kit
|
Chrome D=85mm
|
| 20. |
874449
|
[1] |
Attaching ring
|
|
| 21. |
874730
|
[1] |
Ring
|
|
| 22. |
874706
|
[1] |
Gasket
|
|
| 23. |
881611
|
[1] |
Brace kit
|
Black D=52mm
|
| 24. |
881607
|
[1] |
Brace
|
|
| 25. |
881610
|
[2] |
Nut
|
|
| 26. |
881609
|
[2] |
Stud
|
|
| 27. |
874707
|
[1] |
Gasket
|
|
| 28. |
874448
|
[1] |
Ring
|
|
| 29. |
881612
|
[1] |
Brace kit
|
Black D=85mm
|
| 30. |
881608
|
[1] |
Brace
|
|
| 31. |
881610
|
[2] |
Nut
|
|
| 32. |
881609
|
[2] |
Stud
|
|
| 33. |
874706
|
[1] |
Gasket
|
|
| 34. |
874447
|
[1] |
Ring
|
|
| 35. |
881613
|
[1] |
Brace kit
|
Chrome D=52mm
|
| 36. |
881607
|
[1] |
Brace
|
|
| 37. |
881610
|
[2] |
Nut
|
|
| 38. |
881609
|
[2] |
Stud
|
|
| 39. |
874707
|
[1] |
Gasket
|
|
| 40. |
874731
|
[1] |
Ring
|
|
| 41. |
881614
|
[1] |
Brace kit
|
Chrome D=85mm
|
| 42. |
881608
|
[1] |
Brace
|
|
| 43. |
881610
|
[2] |
Nut
|
|
| 44. |
881609
|
[2] |
Stud
|
|
| 45. |
874706
|
[1] |
Gasket
|
|
| 46. |
874730
|
[1] |
Ring
|
|
| 47. |
874843
|
[1] |
X-ring, sealing
|
For flush mounting., D=52mm
|
| 48. |
874844
|
[1] |
X-ring, sealing
|
For flush mounting., D=85mm
|
| 49. |
874759
|
[1] |
Extension cable, instrument
|
L=1000mm
|
| 49. |
3807043
|
[1] |
Extension cable, instrument
|
L=3000mm
|
