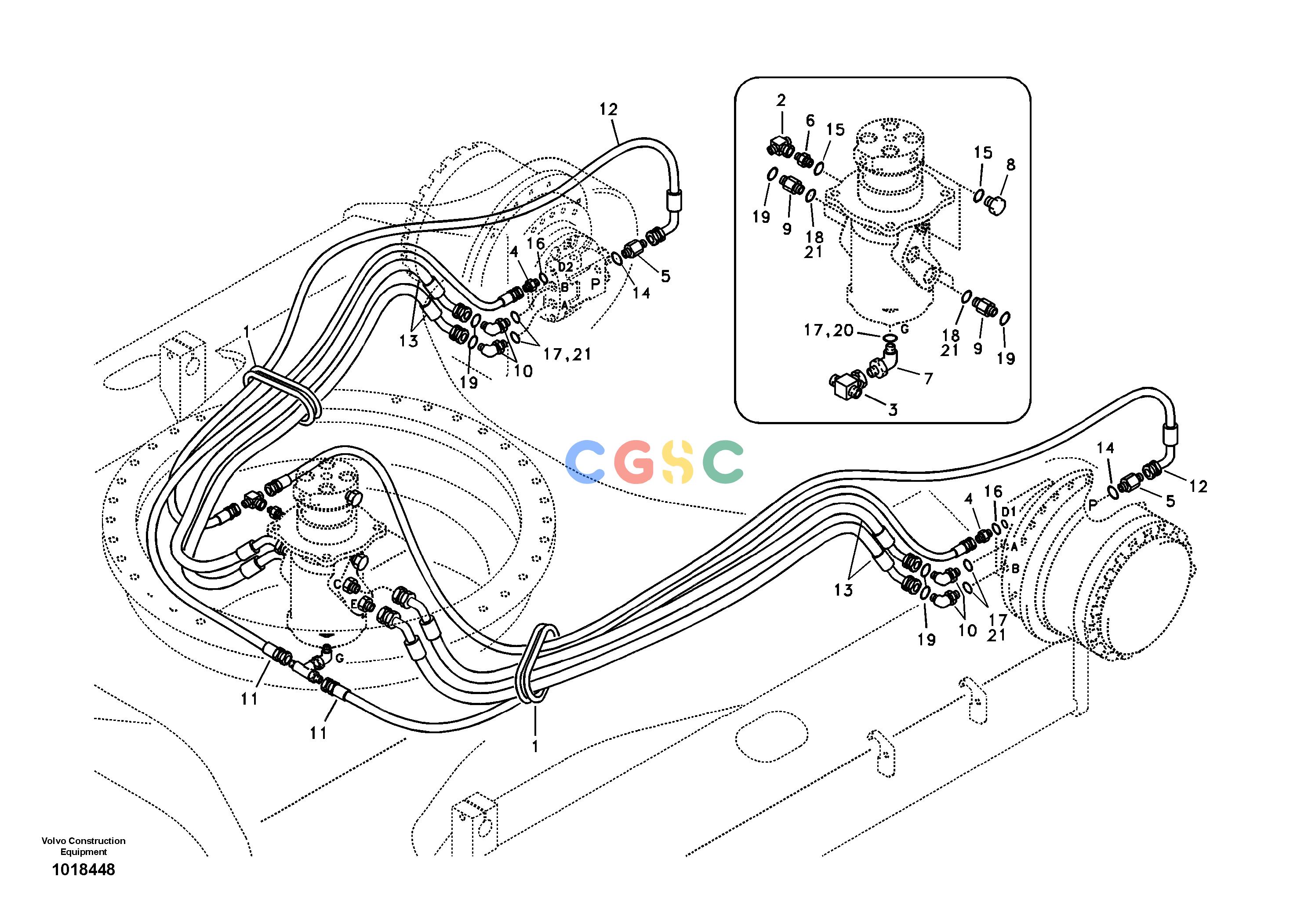

沃尔沃零件查询EC135B Turning joint line, turning joint to travel motorSER NO 20001-200798277943-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
491 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14513937
|
[2] |
Grommet
|
|
| 2. |
VOE14720827
|
[1] |
T-nipple
|
|
| 3. |
SA9411-92200
|
[1] |
T-nipple
|
|
| 4. |
VOE14883808
|
[2] |
Nipple
|
|
| 5. |
SA9412-11090
|
[2] |
Nipple
|
|
| 6. |
SA9412-11130
|
[1] |
Nipple
|
|
| 7. |
SA9413-11210
|
[1] |
Elbow
|
|
| 8. |
SA9415-11031
|
[2] |
Plug
|
|
| 9. |
VOE14884872
|
[4] |
Nipple
|
|
| 10. |
SA9419-31020
|
[4] |
Connector
|
|
| 11. |
SA9451-04334
|
[2] |
Hose assembly
|
|
| 12. |
SA9453-02247
|
[2] |
Hose assembly
|
|
| 13. |
SA9459-04661
|
[4] |
Hose
|
|
| 14. |
VOE983502
|
[2] |
O-ring
|
|
| 15. |
VOE983505
|
[3] |
O-ring
|
|
| 16. |
VOE990557
|
[2] |
O-ring
|
|
| 17. |
VOE983524
|
[5] |
O-ring
|
|
| 18. |
VOE983527
|
[4] |
O-ring
|
|
| 19. |
VOE981289
|
[8] |
O-ring
|
|
