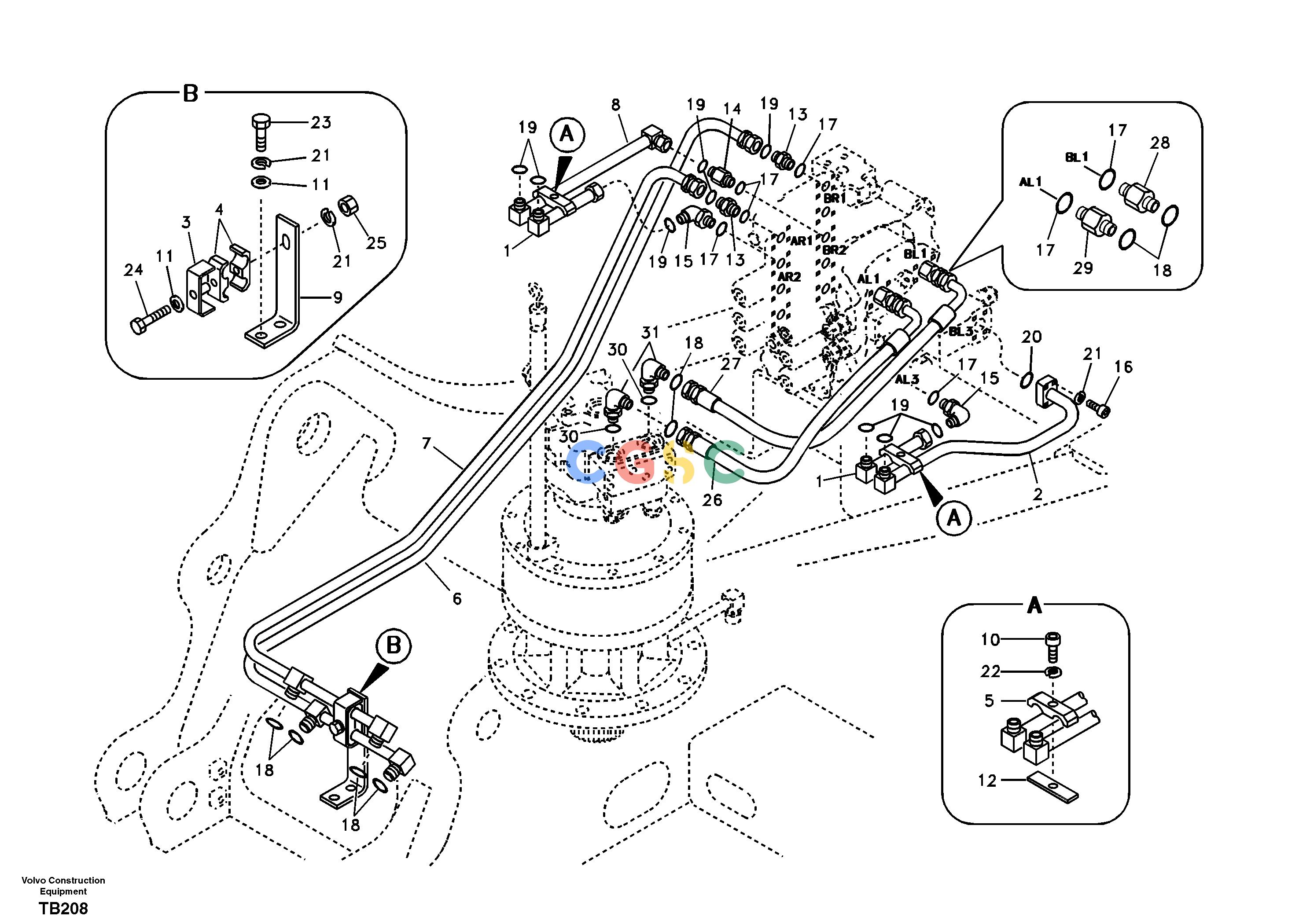

沃尔沃零件查询EC135B Hydraulic system, control valve to boom and swingSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
609 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14674390
|
[2] |
Pipe
|
|
| 2. |
VOE14674391
|
[1] |
Pipe
|
|
| 3. |
SA1142-03910
|
[1] |
Clamp
|
|
| 4. |
SA1142-03960
|
[2] |
Clamp
|
|
| 5. |
SA1174-55850
|
[2] |
Clamp
|
|
| 6. |
VOE14507888
|
[1] |
Pipe
|
|
| 7. |
VOE14507889
|
[1] |
Pipe
|
|
| 8. |
VOE14513886
|
[1] |
Pipe
|
|
| 9. |
VOE14513951
|
[1] |
Plate
|
|
| 10. |
VOE60110356
|
[2] |
Hexagon screw
|
|
| 11. |
VOE992040
|
[3] |
Plain washer
|
|
| 12. |
VOE14881207
|
[2] |
Clamp
|
|
| 13. |
SA9419-11040
|
[2] |
Connector
|
|
| 14. |
SA9419-11050
|
[1] |
Connector
|
|
| 15. |
SA9419-21030
|
[2] |
Connector
|
|
| 16. |
VOE984082
|
[4] |
Hex. socket screw
|
|
| 17. |
VOE983524
|
[7] |
O-ring
|
|
| 18. |
VOE990738
|
[8] |
O-ring
|
|
| 19. |
VOE981289
|
[9] |
O-ring
|
|
| 20. |
VOE13948700
|
[1] |
O-ring
|
|
| 21. |
VOE955922
|
[7] |
Spring washer
|
|
| 22. |
VOE955926
|
[2] |
Spring washer
|
|
| 23. |
VOE983252
|
[2] |
Hexagon screw
|
|
| 24. |
VOE983257
|
[1] |
Hexagon screw
|
|
| 25. |
VOE983304
|
[1] |
Hexagon nut
|
|
| 26. |
SA9402-04611
|
[1] |
Hose
|
|
| 27. |
SA9402-04612
|
[1] |
Hose
|
|
| 28. |
SA9419-11020
|
[1] |
Connector
|
|
| 29. |
SA9419-11030
|
[1] |
Connector
|
|
| 30. |
VOE990557
|
[2] |
O-ring
|
|
| 31. |
SA9419-21010
|
[2] |
Connector
|
|
