沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FElectrical SystemEVC Electrical System D1-D2EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
677 次

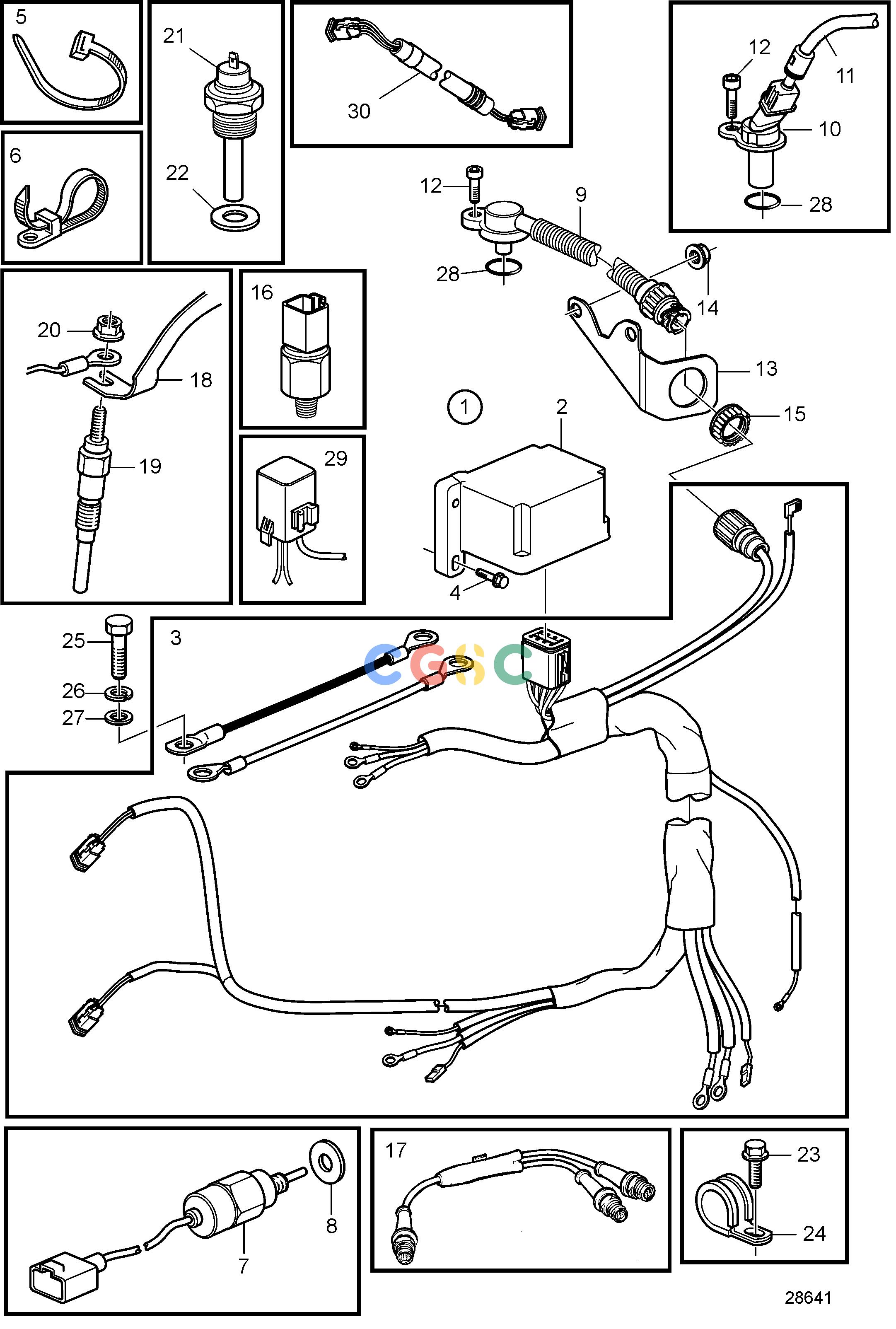

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3885724
|
[1] |
Electrical distribut
|
|
| 2. |
21120710
|
[1] |
Control unit
|
Replaced by 21261871
|
| 2. |
21261871
|
[1] |
Control unit
|
Replaced by 21511215
|
| 2. |
21511215
|
[1] |
Electronic unit
|
Replaced by 21558939
|
| 2. |
21558939
|
[1] |
Electronic unit
|
Replaced by 22594274
|
| 2. |
22594274
|
[1] |
Electronic unit
|
|
| 3. |
3843674
|
[1] |
Wiring harness
|
|
| 4. |
948356
|
[2] |
Flange screw
|
|
| 5. |
948211
|
[8] |
Cable tie
|
|
| 6. |
948616
|
[1] |
Cable tie
|
|
| 7. |
3584127
|
[1] |
Stop solenoid
|
|
| 8. |
3580092
|
[1] |
Sealing ring
|
|
| 9. |
3944124
|
[1] |
Sensor
|
Speed Sensor Ø24mm
|
| 10. |
21426987
|
[1] |
Speed monitor
|
Speed Sensor Ø20mm
|
| 11. |
21644164
|
[1] |
Wiring harness
|
D1-13, D1-20
|
| 11. |
22458494
|
[1] |
Wiring harness
|
D1-13, SN5102248947A-, D1-20, SN5102372982A-
|
| 11. |
21644172
|
[1] |
Wiring harness
|
D1-30, D2-40
|
| 11. |
22458501
|
[1] |
Wiring harness
|
D1-30, SN5102166410A-, D2-40, SN5102029787A-
|
| 12. |
942001
|
[1] |
Hex. socket screw
|
|
| 13. |
|
|
|
|
| 14. |
|
|
|
|
| 15. |
3963413
|
[1] |
Ring
|
|
| 16. |
21250645
|
[1] |
Pressure switch
|
|
| 17. |
1140598
|
[1] |
Distributing contact
|
For double steering positions.
|
| 18. |
3809642
|
[1] |
Current bar
|
D1-13
|
| 18. |
3812103
|
[1] |
Current bar
|
D1-20
|
| 18. |
3883705
|
[1] |
Current bar
|
D1-20, D1-30
|
| 18. |
3886459
|
[1] |
Current bar
|
D2-40
|
| 19. |
3809641
|
[4] |
Glow plug
|
D2-40
|
| 20. |
3883704
|
[4] |
Nut
|
D2-40
|
| 21. |
827151
|
[1] |
Temperature sensor
|
|
| 22. |
947624
|
[1] |
Gasket
|
|
| 23. |
945081
|
[1] |
Clamp
|
D2-40B
|
| 24. |
947107
|
[1] |
Flange screw
|
D2-40B
|
| 25. |
946502
|
[1] |
Flange screw
|
Ground (hull)
|
| 26. |
955898
|
[1] |
Washer
|
0,2mm
|
| 27. |
940280
|
[1] |
Spring washer
|
1.2mm
|
| 28. |
974673
|
[1] |
O-ring
|
|
| 29. |
3594745
|
[1] |
Wiring harness
|
|
| 30. |
21138239
|
[1] |
Wiring harness
|
|
