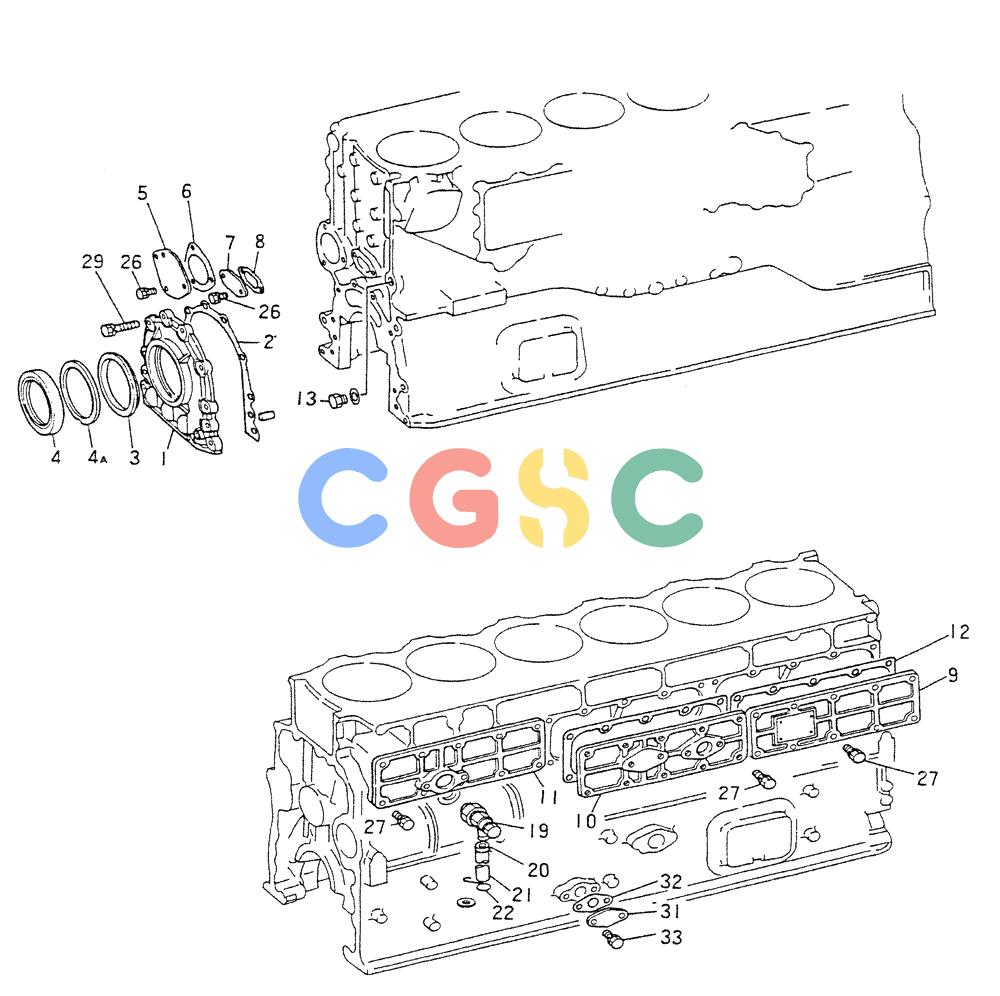

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K909A, K912A, K916, & K935 (1/76-12/06) (01-021) - ENGINE ATTACHING PARTS Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
608 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CT-KS09 | [1] | ENGINE ATTACHMENT PARTS(M8) | |
| . . | 6D221CT-KS04 | [1] | ENGINE ATTACHMENT PARTS(M8) | |
| . . | 6D221CT-KS03 | [1] | ENGINE ATTACHMENT PARTS(M8) | |
| . . | 6D221CT-KS01 | [1] | ENGINE ATTACHMENT PARTS(M8) | |
| 1. | VAME051471 | [1] | COVER, FRONT COVER,FR | COVER, FRONT COVER,FR |
| 2. | VA3090713201 | [1] | O-RING | KOBGASKET,FR COVER Superseded by part number: 133177A1 |
| 3. | VAME060125 | [1] | SLINGER | KOBSLINGER Superseded by part number: 133179A1 |
| 4. | VAME060124 | [1] | OIL SEAL | KOBOILSEAL Superseded by part number: 133160A1 |
| 5. | VA3090703500 | [1] | COVER | KOBCOVER |
| 6. | VA3090702501 | [1] | GASKET | KOBGASKET Superseded by part number: 133173A1 |
| 7. | VA3090702600 | [1] | COVER | |
| 8. | VA3090702701 | [1] | GASKET GASKET | GASKET GASKET |
| 9. | VAME051003 | [1] | COVER | KOBCOVER,SIDE |
| 10. | VA3090703800 | [1] | COVER,SIDE | |
| 11. | VAME051344 | [1] | SIDE PLATE | KOBCOVER,SIDE Superseded by part number: ME051344 |
| 12. | VAME051168 | [3] | GASKET | KOBGASKET,SIDE COVER Superseded by part number: 346195A1 |
| 13. | VAMH037723 | [1] | PLUG | KOBPLUG,SCREW |
| . . | VAMF660071 | [1] | PACKING | KOBGASKET 27 |
| 19. | VA3170705201 | [1] | COCK | KOBWATER Superseded by part number: 133149A1 |
| 20. | VAM5666040 | [1] | CLAMP,HOSE 16 | |
| 21. | VA3090705800 | [1] | PIPE | KOBPIPE,DRAIN COCK L = 380 Superseded by part number: 3090705800 |
| 22. | VA3000715301 | [1] | CLAMP | KOBCLAMP |
| . . | VAMF450006 | [1] | NUT | KOBWASHER,PLAIN 10 Superseded by part number: 133247A1 |
| 26. | VAMF300841 | [5] | SCREW | KOBBOLT,W/WSR 10X20 Superseded by part number: 132461A1 |
| 27. | VAMF303365 | [28] | WASHER | KOBBOLT,W/WSR 10X30 Superseded by part number: 133169A1 |
| . . | VAMF300851 | [1] | BOLT BOLT,W/WSR 10X50 | BOLT BOLT,W/WSR 10X50 |
| . . | VAMF300847 | [1] | BOLT | KOBBOLT,W/WSR 10X35 |
| 29. | VAMF303390 | [8] | BOLT,W/WSR 12X35 | |
| 31. | VAME051241 | [1] | COVER | KOBCOVER Superseded by part number: ME051241 |
| 32. | VA3123612600 | [1] | GASKET | KOBGASKET Superseded by part number: 133176A1 |
| 33. | VAMF300841 | [2] | SCREW | KOBBOLT,W/WSR 10X20 Superseded by part number: 132461A1 |
