神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K909A, K912A, K916, & K935 (1/76-12/06) (01-022) - ENGINE SUPPORT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
735 次

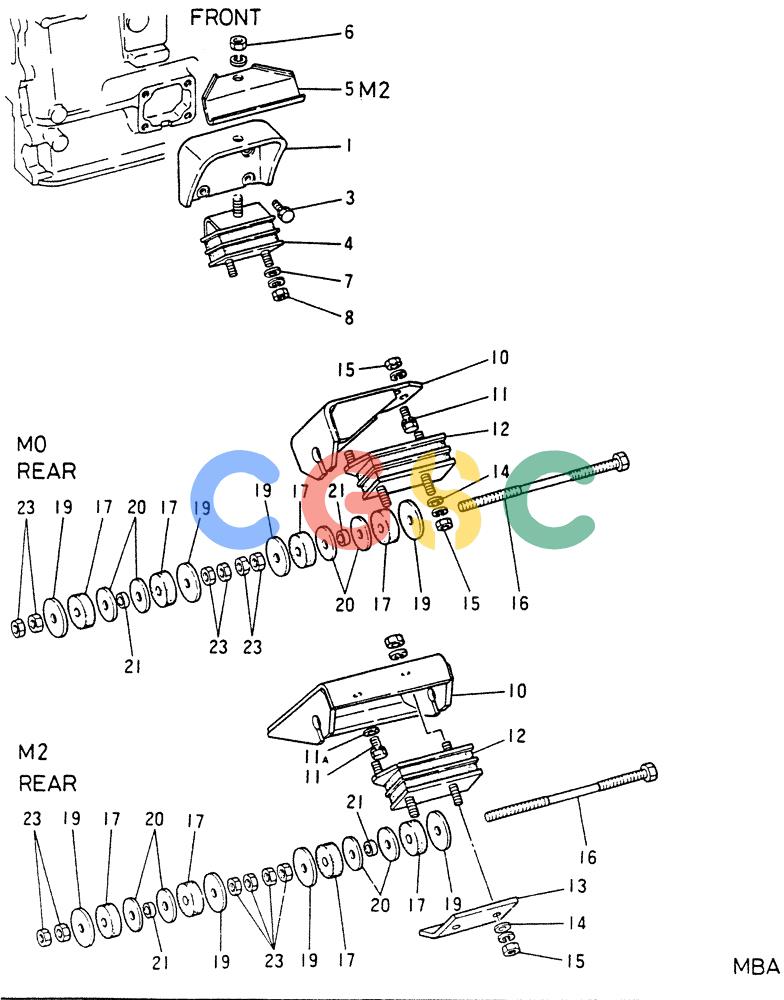

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221C2-KS06 | [1] | ENGINE SUPPORT(M2) | |
| 1. | VAME058192 | [2] | BRACKET,MOUNTING FR | |
| 3. | VAMF300896 | [8] | BOLT,W/WSR 14X35 | |
| 4. | VAME058166 | [2] | CUSHION,RUBBER,FRONT CUSHION,RUBBER FR | CUSHION,RUBBER,FRONT CUSHION,RUBBER FR |
| 5. | VAME058104 | [1] | COVER,CUSHION RUBBER FR LH (FOR M2) | |
| 6. | VAMF430009 | [2] | NUT | KOBNUT 16 |
| . . | VAMF450409 | [2] | WASHER | KOBWASHER,SPG 16 |
| 7. | VAMH005009 | [4] | WASHER PLAIN WASHER,CTR BOLT | WASHER PLAIN WASHER,CTR BOLT |
| 8. | VAMF430008 | [4] | NUT | KOBNUT 14 |
| . . | VAMF450408 | [4] | WASHER | KOBWASHER,SPG 14 |
| 10. | VA3091490800 | [2] | BRACKET,MOUNTING RE (FOR M0) | |
| . . | VAME058264 | [1] | LH (FOR M2) | |
| . . | VAME058259 | [1] | RH (FOR M2) | |
| 11. | VAMF300868 | [8] | BOLT | KOBBOLT,W/WSR 12X30 (FOR M0) |
| . . | VA1720623100 | [8] | BOLT 14X35 (FOR M2) | |
| 11A. | VAMH005064 | [8] | WASHER WASHER T=2.3 (FOR M2) | WASHER WASHER T=2.3 (FOR M2) |
| 12. | VAME058168 | [2] | CUSHION,RUBBER,REAR CUSHION,RUBBER RE | CUSHION,RUBBER,REAR CUSHION,RUBBER RE |
| 13. | VA3091491400 | [2] | PLATE,STOPPER (FOR M2) | |
| 14. | VAMH005009 | [4] | WASHER PLAIN WASHER,CTR BOLT | WASHER PLAIN WASHER,CTR BOLT |
| 15. | VAMF430008 | [8] | NUT | KOBNUT 14 |
| 16. | VA3001453403 | [2] | ROD | KOBROD,THRUST |
| 17. | VA3001453200 | [8] | SEAT | KOBSEAT,RUBBER |
| 19. | VA3001453600 | [8] | PLATE | KOBPLATE,SEAT |
| 20. | VA3001490900 | [8] | WASHER | KOBWASHER |
| 21. | VA3001453500 | [4] | PIECE PIECE | PIECE PIECE |
| 23. | VAMF430730 | [12] | NUT | KOBNUT 18 |
