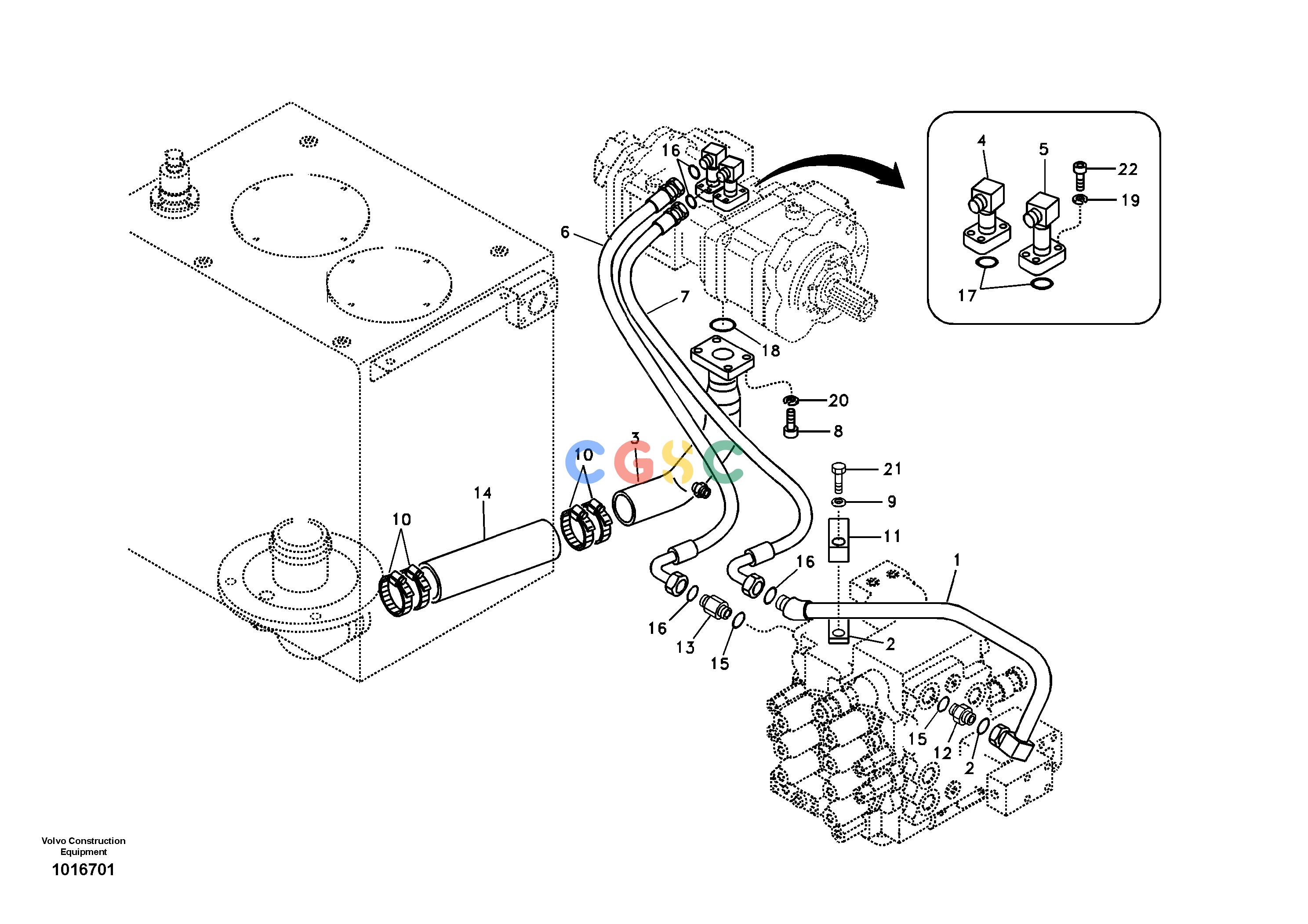

沃尔沃零件查询EC135B Hydraulic system, hydraulic tank to hydraulic pumpSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
450 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14677139
|
[1] |
Pipe
|
|
| 2. |
VOE981290
|
[1] |
O-ring
|
|
| 3. |
VOE14516998
|
[1] |
Pipe
|
|
| 4. |
VOE14517786
|
[1] |
Pipe
|
|
| 5. |
VOE14517787
|
[1] |
Pipe
|
|
| 6. |
VOE14880321
|
[1] |
Hose assembly
|
|
| 7. |
VOE14880322
|
[1] |
Hose assembly
|
|
| 8. |
VOE984089
|
[4] |
Hex. socket screw
|
|
| 9. |
VOE992042
|
[1] |
Plain washer
|
|
| 10. |
SA9312-10400
|
[4] |
Hose clamp
|
|
| 11. |
VOE14881234
|
[1] |
Clamp
|
|
| 12. |
SA9419-11060
|
[1] |
Connector
|
|
| 13. |
SA9419-11050
|
[1] |
Connector
|
|
| 14. |
VOE14881387
|
[1] |
Rubber hose
|
|
| 15. |
VOE983524
|
[2] |
O-ring
|
|
| 16. |
VOE990740
|
[4] |
O-ring
|
|
| 17. |
VOE990742
|
[2] |
O-ring
|
|
| 18. |
VOE980102
|
[1] |
O-ring
|
|
| 19. |
VOE955922
|
[8] |
Spring washer
|
|
| 20. |
VOE955923
|
[4] |
Spring washer
|
|
| 21. |
VOE980755
|
[1] |
Hexagon screw
|
|
| 22. |
VOE997437
|
[8] |
Hexagon screw
|
|
