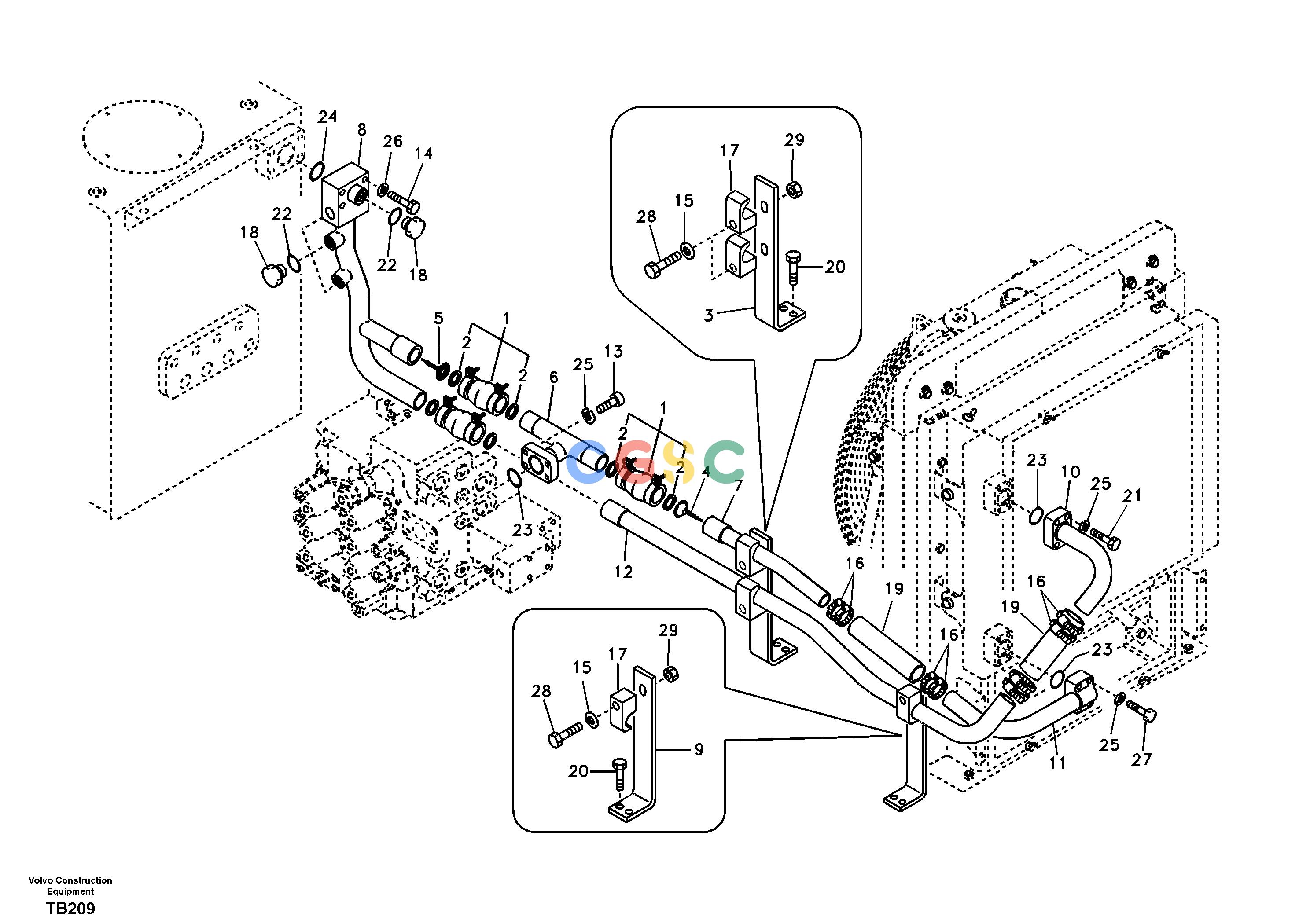

沃尔沃零件查询EC135B Hydraulic system, hydraulic tank to hydraulic oil coolerSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
496 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14531072
|
[3] |
Flexible coupling
|
|
| 2. |
VOE14524449
|
[2] |
Gasket Kit
|
|
| 3. |
SA1142-03700
|
[1] |
Bracket
|
|
| 4. |
VOE14531081
|
[1] |
Valve
|
|
| 5. |
VOE14531082
|
[1] |
Valve
|
|
| 6. |
VOE14507902
|
[1] |
Pipe
|
|
| 7. |
VOE14507903
|
[1] |
Pipe
|
|
| 8. |
VOE14507905
|
[1] |
Pipe
|
|
| 9. |
VOE14507906
|
[1] |
Bracket
|
|
| 10. |
VOE14510202
|
[1] |
Pipe
|
|
| 11. |
VOE14510203
|
[1] |
Pipe
|
|
| 12. |
VOE14516997
|
[1] |
Pipe
|
|
| 13. |
VOE984081
|
[4] |
Hex. socket screw
|
|
| 14. |
VOE991638
|
[4] |
Hexagon screw
|
|
| 15. |
VOE60110299
|
[3] |
Washer
|
|
| 16. |
VOE11109241
|
[8] |
Clamp
|
|
| 17. |
VOE14881236
|
[3] |
Clamp
|
|
| 18. |
SA9415-11061
|
[4] |
Plug
|
|
| 19. |
VOE14881380
|
[2] |
Rubber hose
|
|
| 20. |
VOE60113094
|
[4] |
Flange screw
|
|
| 21. |
VOE984082
|
[4] |
Hex. socket screw
|
|
| 22. |
VOE983527
|
[4] |
O-ring
|
|
| 23. |
VOE13949238
|
[3] |
O-ring
|
|
| 24. |
VOE13949239
|
[1] |
O-ring
|
|
| 25. |
VOE955922
|
[12] |
Spring washer
|
|
| 26. |
VOE955923
|
[4] |
Spring washer
|
|
| 27. |
VOE983256
|
[4] |
Hexagon screw
|
|
| 28. |
VOE978941
|
[3] |
Hexagon screw
|
|
| 29. |
VOE997410
|
[3] |
Hexagon nut
|
|
