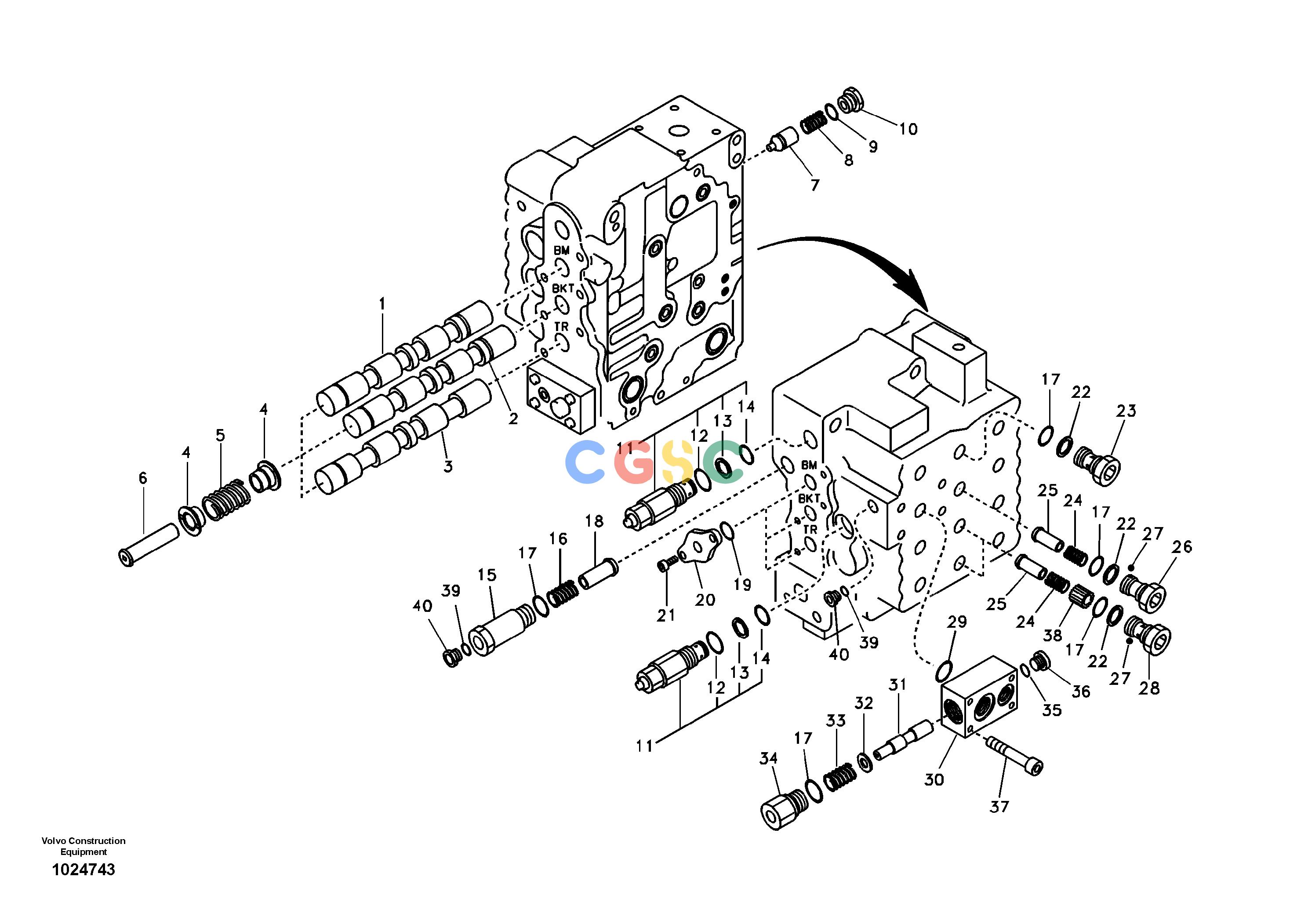

沃尔沃零件查询EC135B Main control valve, boom and bucket and travel RhSER NO 20001-200798278027-NoneVOE8278027NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
176 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14550306
|
[1] |
Control valve
|
|
| 1. |
VOE14517607
|
[1] |
Plunger
|
|
| 2. |
VOE14517608
|
[1] |
Plunger
|
|
| 3. |
VOE14501625
|
[1] |
Plunger
|
|
| 4. |
SA8230-12260
|
[6] |
Guide
|
|
| 5. |
SA8230-13110
|
[3] |
Spring
|
|
| 6. |
SA8230-11860
|
[3] |
Cap
|
|
| 7. |
SA8230-11360
|
[1] |
Valve block
|
|
| 8. |
SA8230-13120
|
[1] |
Spring
|
|
| 9. |
SA7273-11000
|
[1] |
O-ring
|
|
| 10. |
SA8230-12000
|
[1] |
Cap
|
|
| 11. |
VOE14552387
|
[2] |
Relief valve
|
|
| 12. |
VOE968564
|
[1] |
O-ring
|
|
| 13. |
VOE14552388
|
[1] |
Ring
|
|
| 14. |
VOE14601515
|
[1] |
O-ring
|
|
| 15. |
SA7273-10310
|
[1] |
Cap
|
|
| 16. |
SA7273-10661
|
[1] |
Spring
|
|
| 17. |
VOE983510
|
[6] |
O-ring
|
|
| 18. |
SA7273-10192
|
[1] |
Valve
|
|
| 19. |
VOE990564
|
[3] |
O-ring
|
|
| 20. |
SA8230-10550
|
[3] |
Retainer
|
|
| 21. |
SA8230-22990
|
[6] |
Hex. socket screw
|
|
| 22. |
VOE14880817
|
[4] |
Back-up ring
|
|
| 23. |
SA8230-32780
|
[1] |
Cap
|
|
| 24. |
SA7273-10480
|
[3] |
Spring
|
|
| 25. |
SA7273-10070
|
[3] |
Valve
|
|
| 26. |
SA8230-11630
|
[1] |
Cap
|
|
| 27. |
SA7273-10790
|
[3] |
Ball
|
|
| 28. |
SA8230-32830
|
[2] |
Cap
|
|
| 29. |
VOE968564
|
[1] |
O-ring
|
|
| 30. |
SA8230-32720
|
[1] |
Manifold
|
|
| 31. |
VOE14548722
|
[1] |
Slide
|
|
| 32. |
SA7273-10730
|
[1] |
Shim
|
|
| 33. |
SA7273-10670
|
[1] |
Spring
|
|
| 34. |
SA8230-11790
|
[1] |
Cap
|
|
| 35. |
VOE983505
|
[1] |
O-ring
|
|
| 36. |
SA9415-11032
|
[1] |
Plug
|
|
| 37. |
VOE994026
|
[4] |
Hex. socket screw
|
|
| 38. |
SA8230-11180
|
[2] |
Non-return valve
|
|
| 39. |
VOE983502
|
[2] |
O-ring
|
|
| 40. |
SA7273-10751
|
[2] |
Cap
|
|
| 100. |
VOE14535506
|
[1] |
Seal
|
|
