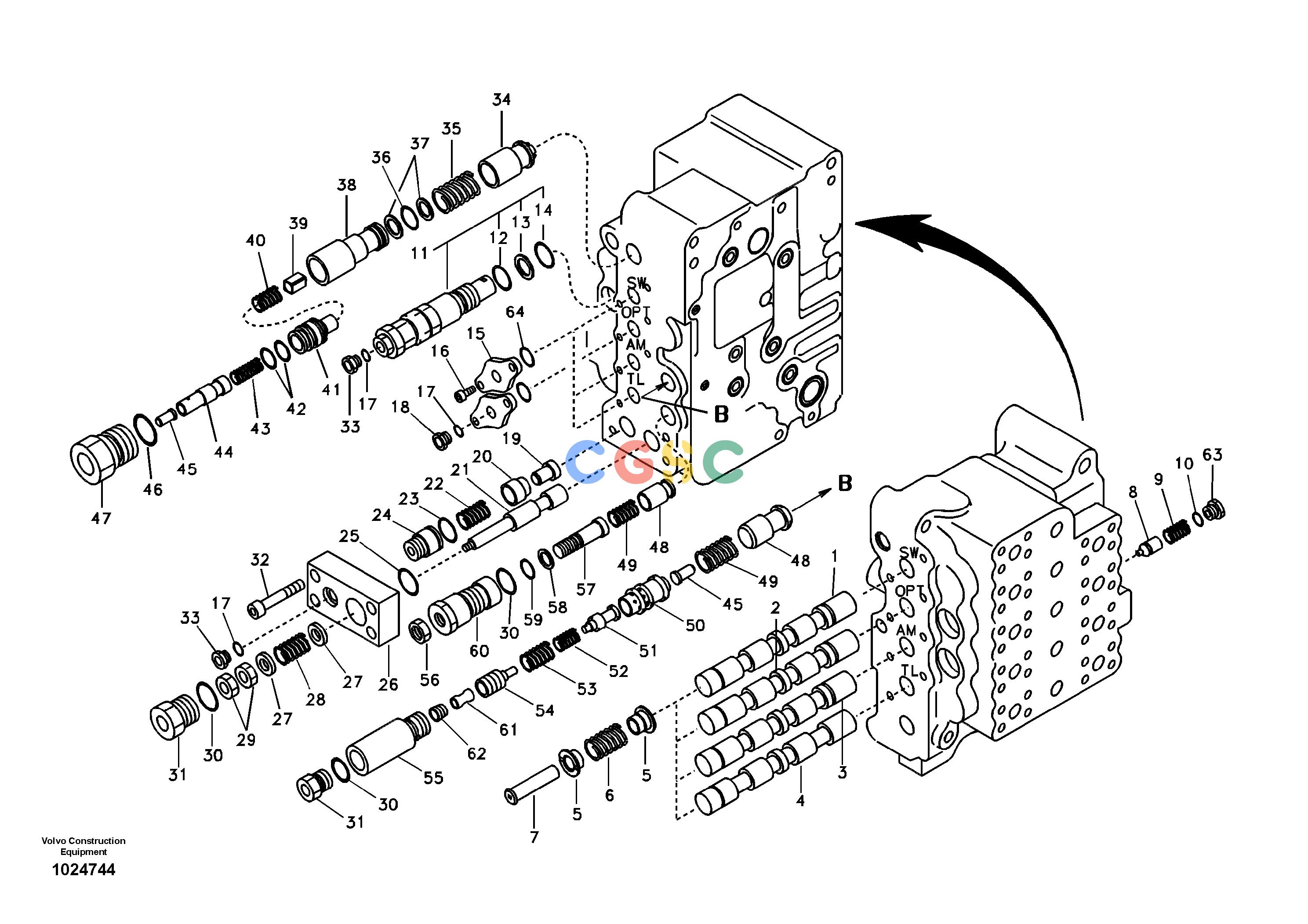

沃尔沃零件查询EC135B Main control valve, swing and option and dipper arm and travel LhSER NO 20001-200798278027-NoneVOE8278027NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
202 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14550306
|
[1] |
Control valve
|
|
| 1. |
VOE14535503
|
[1] |
Plunger
|
|
| 2. |
SA8230-10700
|
[1] |
Plunger
|
|
| 3. |
VOE14535504
|
[1] |
Plunger
|
|
| 4. |
VOE14501625
|
[1] |
Plunger
|
|
| 5. |
SA8230-12260
|
[8] |
Guide
|
|
| 6. |
SA8230-13110
|
[4] |
Spring
|
|
| 7. |
SA8230-11860
|
[4] |
Cap
|
|
| 8. |
SA8230-11360
|
[1] |
Valve block
|
|
| 9. |
SA8230-13120
|
[1] |
Spring
|
|
| 10. |
SA7273-11000
|
[1] |
O-ring
|
|
| 11. |
VOE14552495
|
[1] |
Relief valve
|
|
| 12. |
VOE968564
|
[1] |
O-ring
|
|
| 13. |
VOE14552388
|
[1] |
Ring
|
|
| 14. |
VOE14601515
|
[1] |
O-ring
|
|
| 15. |
SA8230-10550
|
[4] |
Retainer
|
|
| 16. |
SA8230-22990
|
[8] |
Hex. socket screw
|
|
| 17. |
VOE983502
|
[3] |
O-ring
|
|
| 18. |
SA8230-11970
|
[1] |
Cap
|
|
| 19. |
SA8230-32760
|
[1] |
Poppet
|
|
| 20. |
SA8230-11440
|
[1] |
Control sleeve
|
|
| 21. |
SA8230-32910
|
[1] |
Spool
|
|
| 22. |
SA8230-12870
|
[1] |
Spring
|
|
| 23. |
VOE990606
|
[1] |
O-ring
|
|
| 24. |
SA8230-13330
|
[1] |
Guide
|
|
| 25. |
VOE990581
|
[1] |
O-ring
|
|
| 26. |
SA8230-10480
|
[1] |
Cover
|
|
| 27. |
SA8230-13320
|
[2] |
Guide
|
|
| 28. |
SA8230-32890
|
[1] |
Spring
|
|
| 29. |
SA8230-00690
|
[2] |
Nut
|
|
| 30. |
VOE983510
|
[3] |
O-ring
|
|
| 31. |
SA8230-11930
|
[2] |
Cap
|
|
| 32. |
SA8230-23030
|
[4] |
Bolt
|
|
| 33. |
SA7273-10751
|
[2] |
Cap
|
|
| 34. |
SA8230-11320
|
[1] |
Valve
|
|
| 35. |
SA7273-10580
|
[1] |
Spring
|
|
| 36. |
VOE990545
|
[1] |
O-ring
|
|
| 37. |
SA7273-10780
|
[2] |
Ring
|
|
| 38. |
SA7273-10210
|
[1] |
Sleeve
|
|
| 39. |
SA7273-10090
|
[1] |
Poppet
|
|
| 40. |
SA7273-10490
|
[1] |
Spring
|
|
| 41. |
SA7273-10240
|
[1] |
Sleeve
|
|
| 42. |
VOE968564
|
[2] |
O-ring
|
|
| 43. |
SA7273-10621
|
[1] |
Spring
|
|
| 44. |
SA8230-11070
|
[1] |
Piston
|
|
| 45. |
SA7273-10030
|
[2] |
Control plunger
|
|
| 46. |
VOE983525
|
[1] |
O-ring
|
|
| 47. |
SA8230-12090
|
[1] |
Cap
|
|
| 48. |
SA7273-11100
|
[2] |
Poppet
|
|
| 49. |
SA7273-11350
|
[2] |
Spring
|
|
| 50. |
VOE14517605
|
[1] |
Sleeve
|
|
| 51. |
SA7273-03140
|
[1] |
Spool
|
|
| 52. |
SA8230-32880
|
[1] |
Spring
|
|
| 53. |
SA8230-13170
|
[1] |
Spring
|
|
| 54. |
VOE14517604
|
[1] |
Piston
|
|
| 55. |
SA8230-32820
|
[1] |
Cap
|
|
| 56. |
SA8230-33180
|
[1] |
Nut
|
|
| 57. |
SA8230-32770
|
[1] |
Bolt
|
|
| 58. |
VOE14880813
|
[1] |
Back-up ring
|
|
| 59. |
VOE983496
|
[1] |
O-ring
|
|
| 60. |
SA8230-32810
|
[1] |
Cap
|
|
| 61. |
|
[1] |
Check valve
|
|
| 62. |
VOE14517614
|
[1] |
Plug
|
|
| 63. |
SA8230-12000
|
[1] |
Cap
|
|
| 64. |
VOE990564
|
[4] |
O-ring
|
|
| 100. |
VOE14535506
|
[1] |
Seal
|
|
