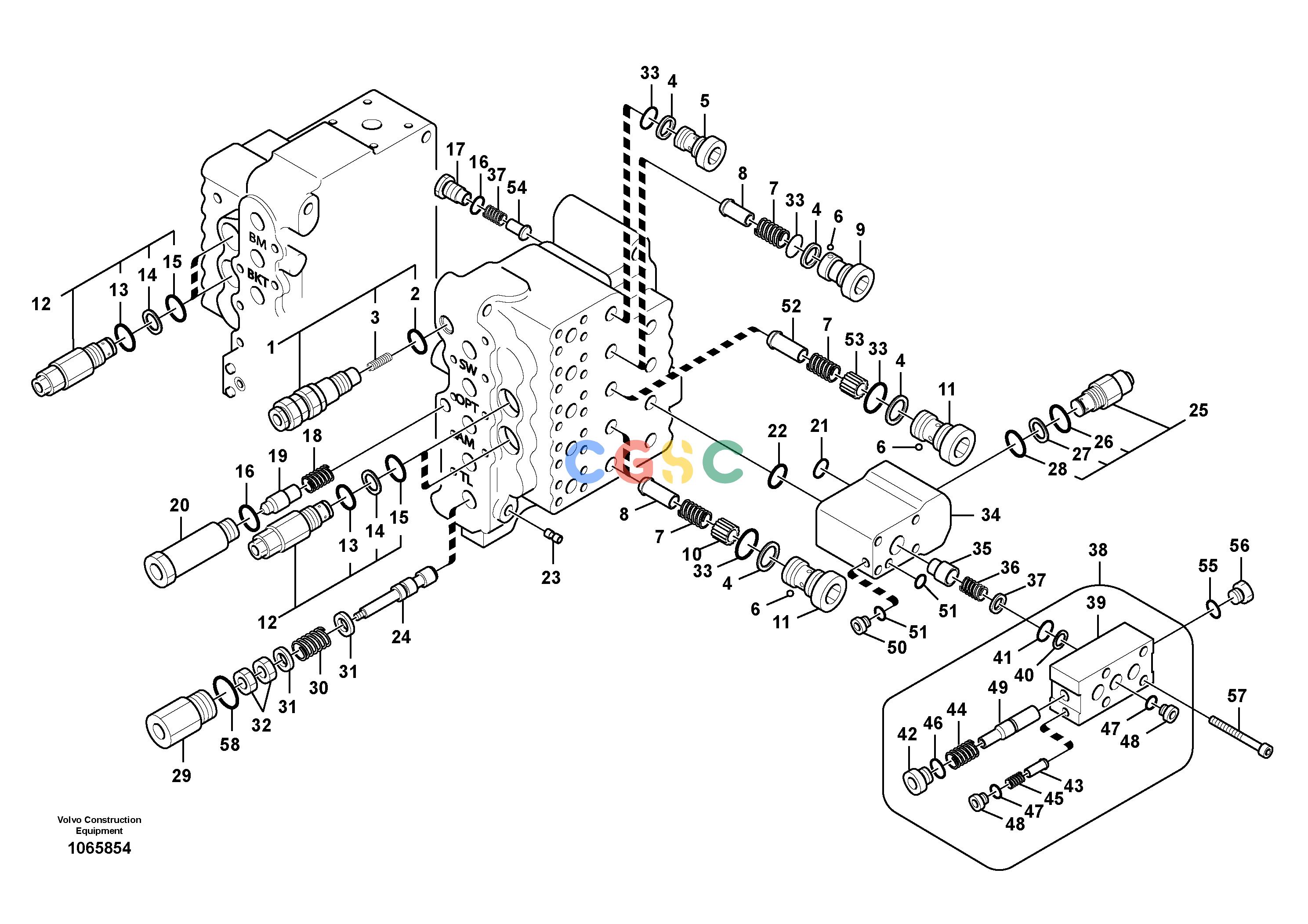

沃尔沃零件查询EC135B Main control valve, relief valve and dipper arm holdingSER NO 20001-200798278027-NoneVOE8278027NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
509 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14550306
|
[1] |
Control valve
|
|
| 1. |
VOE14513267
|
[1] |
Relief valve
|
|
| 2. |
VOE983510
|
[1] |
O-ring
|
|
| 3. |
SA7273-30490
|
[1] |
Spring
|
|
| 4. |
VOE14880817
|
[5] |
Back-up ring
|
|
| 5. |
SA8230-32780
|
[1] |
Cap
|
|
| 6. |
SA7273-10790
|
[4] |
Ball
|
|
| 7. |
SA7273-10480
|
[4] |
Spring
|
|
| 8. |
SA7273-10070
|
[3] |
Valve
|
|
| 9. |
SA8230-11630
|
[1] |
Cap
|
|
| 10. |
SA8230-11180
|
[2] |
Non-return valve
|
|
| 11. |
SA8230-32790
|
[3] |
Cap
|
|
| 12. |
VOE14552387
|
[4] |
Relief valve
|
|
| 13. |
VOE968564
|
[1] |
O-ring
|
|
| 14. |
VOE14552388
|
[1] |
Ring
|
|
| 15. |
VOE14601515
|
[1] |
O-ring
|
|
| 16. |
VOE983505
|
[2] |
O-ring
|
|
| 17. |
SA8230-11900
|
[1] |
Cap
|
|
| 18. |
SA7273-10560
|
[1] |
Spring
|
|
| 19. |
SA7273-10140
|
[1] |
Valve
|
|
| 20. |
SA8230-32800
|
[1] |
Cap
|
|
| 21. |
VOE968564
|
[1] |
O-ring
|
|
| 22. |
VOE983527
|
[1] |
O-ring
|
|
| 23. |
VOE14510988
|
[1] |
Throttle sleeve
|
|
| 24. |
SA8230-32730
|
[1] |
Spool
|
|
| 25. |
VOE14552089
|
[1] |
Relief valve
|
|
| 26. |
VOE993323
|
[1] |
O-ring
|
|
| 27. |
VOE14880816
|
[1] |
Back-up ring
|
|
| 28. |
VOE983507
|
[1] |
O-ring
|
|
| 29. |
SA8230-11920
|
[1] |
Cap
|
|
| 30. |
SA8230-32860
|
[1] |
Spring
|
|
| 31. |
SA8230-13320
|
[2] |
Guide
|
|
| 32. |
SA8230-00690
|
[2] |
Nut
|
|
| 33. |
VOE983510
|
[5] |
O-ring
|
|
| 34. |
VOE14535495
|
[1] |
Manifold
|
|
| 35. |
SA7273-10160
|
[1] |
Sleeve
|
|
| 36. |
SA7273-10600
|
[1] |
Spring
|
|
| 37. |
|
[1] |
Ring
|
|
| 38. |
VOE14535496
|
[1] |
Cover
|
|
| 39. |
VOE14535497
|
[1] |
Cover
|
|
| 40. |
VOE14880821
|
[1] |
Back-up ring
|
|
| 41. |
VOE983525
|
[1] |
O-ring
|
|
| 42. |
SA7273-10751
|
[1] |
Cap
|
|
| 43. |
SA8230-11170
|
[1] |
Non-return valve
|
|
| 44. |
SA8230-36120
|
[1] |
Spring
|
|
| 45. |
VOE14535499
|
[1] |
Spring
|
|
| 46. |
VOE983502
|
[1] |
O-ring
|
|
| 47. |
VOE983495
|
[2] |
O-ring
|
|
| 48. |
SA8230-11150
|
[2] |
Cap
|
|
| 49. |
VOE14535498
|
[1] |
Control plunger
|
|
| 50. |
VOE14601627
|
[1] |
Plug
|
|
| 51. |
VOE983495
|
[2] |
O-ring
|
|
| 52. |
VOE14540636
|
[1] |
Non-return valve
|
|
| 53. |
VOE14540637
|
[1] |
Non-return valve
|
|
| 54. |
SA8230-11260
|
[1] |
Valve block
|
|
| 55. |
VOE983502
|
[1] |
O-ring
|
|
| 56. |
SA7273-10751
|
[1] |
Cap
|
|
| 57. |
SA8230-00660
|
[4] |
Bolt
|
|
| 58. |
VOE990579
|
[1] |
O-ring
|
|
| 100. |
VOE14535506
|
[1] |
Seal
|
|
