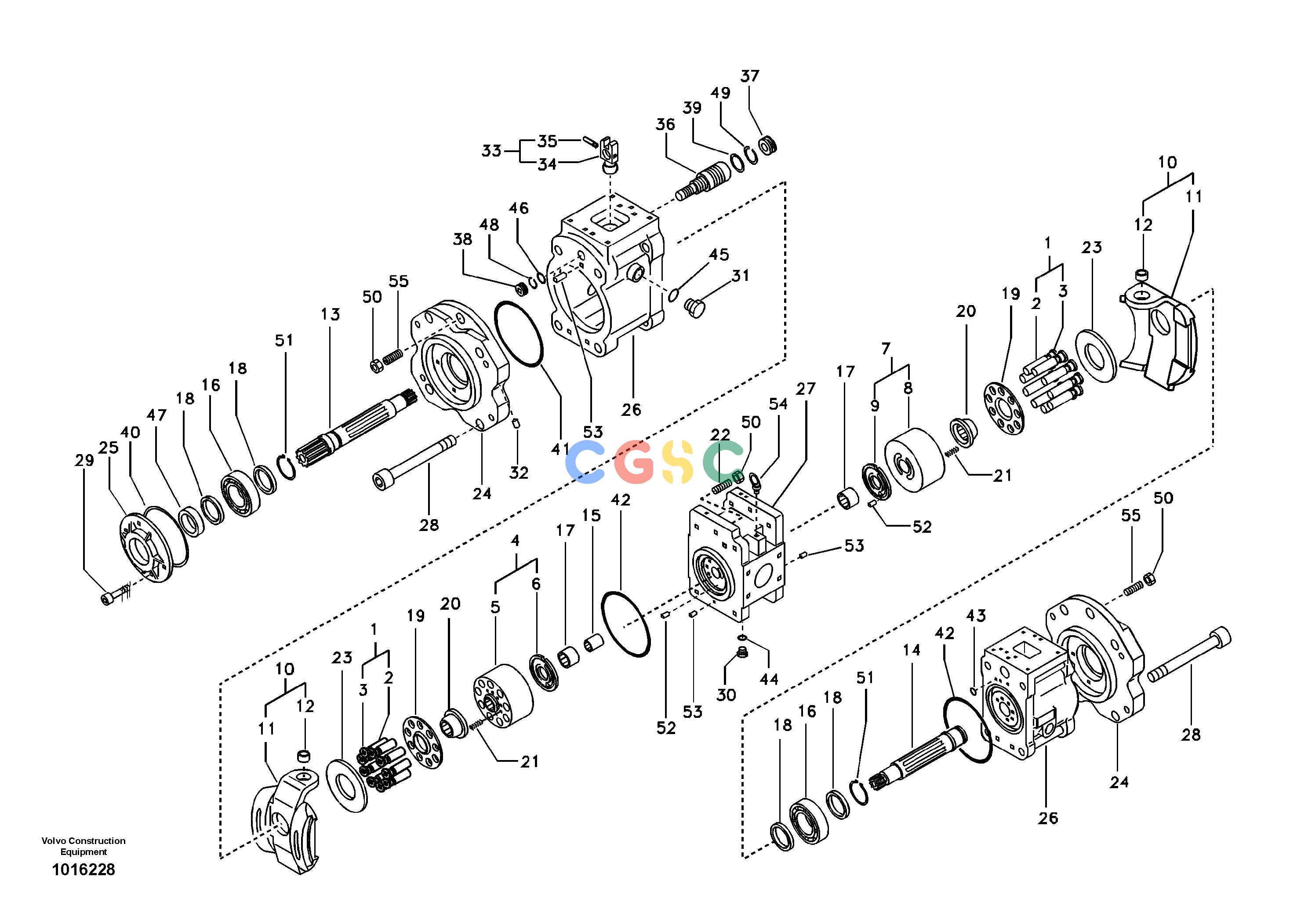

沃尔沃零件查询EC135B Hydraulic pumpSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
315 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14531853
|
[1] |
Pump
|
|
| 1. |
VOE14567022
|
[2] |
Piston
|
|
| 2. |
VOE14508515
|
[9] |
Piston
|
|
| 3. |
SA8230-28650
|
[9] |
Seat
|
|
| 4. |
VOE14508516
|
[1] |
Cylinder
|
RH
|
| 5. |
VOE14508523
|
[1] |
Block
|
|
| 6. |
SA8230-30550
|
[1] |
Plate
|
|
| 7. |
VOE14604488
|
[1] |
Cylinder
|
LH
|
| 8. |
VOE14508523
|
[1] |
Block
|
|
| 9. |
VOE14502013
|
[1] |
Plate
|
|
| 10. |
SA8230-32220
|
[2] |
Plate
|
|
| 11. |
|
[1] |
Plate
|
|
| 12. |
SA14501609
|
[1] |
Bushing
|
|
| 13. |
SA8230-09230
|
[1] |
Shaft
|
|
| 14. |
SA8230-28260
|
[1] |
Shaft
|
|
| 15. |
SA8230-28280
|
[1] |
Snap-on coupling
|
|
| 16. |
VOE14501607
|
[2] |
Bearing
|
|
| 17. |
VOE14511629
|
[2] |
Needle bearing
|
|
| 18. |
SA8230-14520
|
[4] |
Spacer
|
|
| 19. |
SA8230-09220
|
[2] |
Bushing
|
|
| 20. |
VOE14508524
|
[2] |
Bushing
|
|
| 21. |
SA8230-09380
|
[18] |
Spring
|
|
| 22. |
SA8230-09420
|
[2] |
Bolt
|
|
| 23. |
SA8230-09620
|
[2] |
Plate
|
|
| 24. |
SA8230-32180
|
[2] |
Support
|
|
| 25. |
SA8230-09270
|
[1] |
Cover
|
|
| 26. |
VOE14567020
|
[2] |
Pump housing
|
|
| 27. |
SA8230-08920
|
[1] |
Valve body
|
|
| 28. |
SA8230-09390
|
[8] |
Bolt
|
|
| 29. |
SA8230-25840
|
[4] |
Bolt
|
|
| 30. |
VOE14883837
|
[2] |
Plug
|
|
| 31. |
SA8230-26050
|
[4] |
Plug
|
|
| 32. |
VOE14560637
|
[15] |
Plug
|
|
| 33. |
SA8230-09730
|
[2] |
Pin
|
|
| 34. |
SA8230-09290
|
[1] |
Pin
|
|
| 35. |
SA8230-26420
|
[1] |
Pin
|
|
| 36. |
VOE14508528
|
[2] |
Piston
|
|
| 37. |
VOE14511631
|
[2] |
Stop ring
|
|
| 38. |
SA8230-09410
|
[2] |
Plate
|
|
| 39. |
VOE14528251
|
[2] |
O-ring
|
|
| 40. |
VOE14534033
|
[1] |
O-ring
|
|
| 41. |
VOE14534032
|
[2] |
O-ring
|
|
| 42. |
VOE14534031
|
[2] |
O-ring
|
|
| 43. |
VOE14534030
|
[18] |
O-ring
|
|
| 44. |
VOE14534029
|
[2] |
O-ring
|
|
| 45. |
VOE14534028
|
[4] |
O-ring
|
|
| 46. |
VOE14528250
|
[2] |
O-ring
|
|
| 47. |
VOE14518818
|
[1] |
Seal
|
|
| 48. |
VOE14880816
|
[2] |
Back-up ring
|
|
| 49. |
VOE14880837
|
[2] |
Back-up ring
|
|
| 50. |
SA8230-25620
|
[4] |
Nut
|
|
| 51. |
VOE914465
|
[2] |
Snap ring
|
|
| 52. |
SA8230-26400
|
[2] |
Pin
|
|
| 53. |
SA7223-00660
|
[4] |
Spring pin
|
|
| 54. |
VOE14623509
|
[2] |
Eye bolt
|
|
| 55. |
SA8230-26780
|
[2] |
Bolt
|
|
| 100. |
VOE14555218
|
[1] |
Seal
|
|
