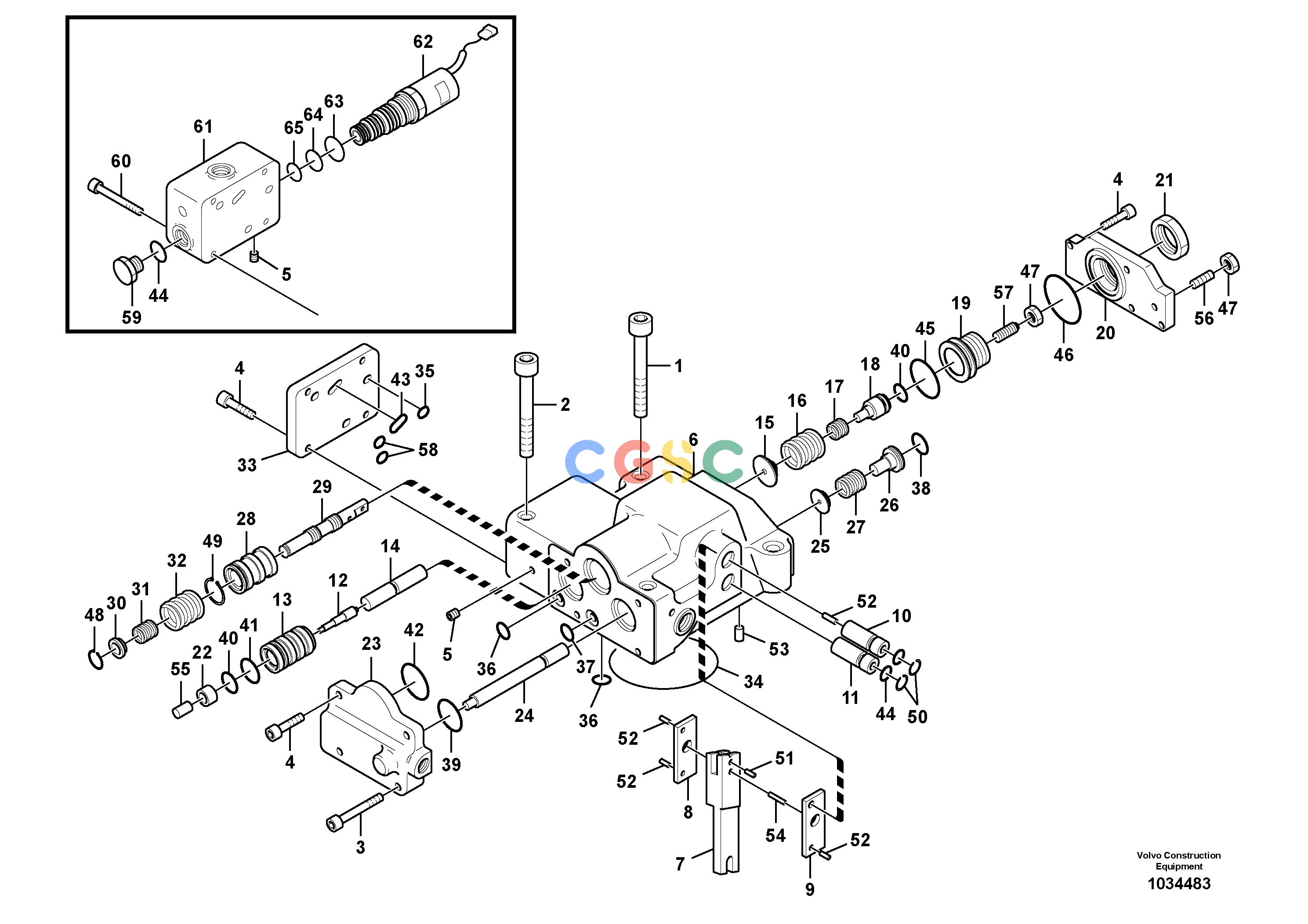

沃尔沃零件查询EC135B Regulator, hydraulic pumpSER NO 20001-200798277787 REAR-8277787 FRONTVOE8277787NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
889 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14535541
|
[1] |
Regulator control
|
|
| |
VOE14535543
|
|
Regulator control
|
|
| 1. |
SA8230-25910
|
[2] |
Hex. socket screw
|
|
| 2. |
SA8230-25920
|
[2] |
Bolt
|
|
| 3. |
SA8230-25860
|
[2] |
Bolt
|
|
| 4. |
SA8230-25850
|
[6] |
Bolt
|
|
| 5. |
VOE14560637
|
[6] |
Plug
|
|
| 6. |
SA8230-08970
|
[1] |
Casing
|
|
| 7. |
VOE14501610
|
[1] |
Lever
|
|
| 8. |
SA8230-09440
|
[1] |
Lever
|
|
| 9. |
SA8230-09450
|
[1] |
Lever
|
|
| 10. |
SA8230-09460
|
[1] |
Plug
|
|
| 11. |
SA8230-09470
|
[1] |
Plug
|
|
| 12. |
SA8230-09480
|
[1] |
Piston
|
|
| 13. |
SA14535542
|
[1] |
Sleeve
|
|
| 14. |
SA8230-09500
|
[1] |
Rod
|
|
| 15. |
SA8230-09510
|
[1] |
Seat
|
|
| 16. |
VOE14500010
|
[1] |
Spring
|
|
| 17. |
SA8230-09520
|
[1] |
Spring
|
|
| 18. |
SA8230-09530
|
[1] |
Stem
|
|
| 19. |
SA8230-09540
|
[1] |
Screw
|
|
| 20. |
SA8230-09240
|
[1] |
Cover
|
|
| 21. |
|
[1] |
Lock nut
|
|
| 22. |
VOE14501611
|
[1] |
Sleeve
|
|
| 23. |
SA8230-09340
|
[1] |
Cover
|
|
| 24. |
SA8230-09560
|
[1] |
Piston
|
|
| 25. |
SA8230-09570
|
[1] |
Seat
|
|
| 26. |
VOE14501612
|
[1] |
Stem
|
|
| 27. |
VOE14500007
|
[1] |
Spring
|
|
| 28. |
VOE14501613
|
[1] |
Sleeve
|
|
| 29. |
SA8230-09590
|
[1] |
Spool
|
|
| 30. |
SA8230-09600
|
[1] |
Seat
|
|
| 31. |
SA8230-09630
|
[1] |
Spring
|
|
| 32. |
SA8230-09610
|
[1] |
Spring
|
|
| 33. |
SA8230-09820
|
|
Cover
|
|
| 34. |
VOE14534051
|
[1] |
O-ring
|
|
| 35. |
VOE14533603
|
[1] |
O-ring
|
|
| 36. |
VOE14533604
|
[9] |
O-ring
|
|
| 37. |
VOE14534050
|
[1] |
O-ring
|
|
| 38. |
VOE14534028
|
[1] |
O-ring
|
|
| 39. |
VOE14534049
|
[1] |
O-ring
|
|
| 40. |
VOE14528250
|
[2] |
O-ring
|
|
| 41. |
VOE14534048
|
[1] |
O-ring
|
|
| 42. |
VOE14534047
|
[1] |
O-ring
|
|
| 43. |
VOE14601515
|
[1] |
O-ring
|
|
| 44. |
VOE14534029
|
[3] |
O-ring
|
|
| 45. |
VOE14534045
|
[1] |
O-ring
|
|
| 46. |
VOE14534044
|
[1] |
O-ring
|
|
| 47. |
SA9113-10800
|
[2] |
Hexagon nut
|
|
| 48. |
SA8240-03680
|
[1] |
Snap ring
|
|
| 49. |
SA8230-26960
|
[1] |
Ring
|
|
| 50. |
VOE914503
|
[2] |
Retaining ring
|
|
| 51. |
VOE14500006
|
[1] |
Cover
|
|
| 52. |
|
[4] |
Pin
|
|
| 53. |
SA8230-09750
|
[1] |
Pin
|
|
| 54. |
VOE14500005
|
[1] |
Pin
|
|
| 55. |
VOE14501614
|
[1] |
Pin
|
|
| 56. |
SA8240-04510
|
[1] |
Screw
|
|
| 57. |
SA8230-09720
|
[1] |
Screw
|
|
| 58. |
VOE14534053
|
[2] |
O-ring
|
|
| 59. |
VOE14883837
|
[1] |
Plug
|
|
| 60. |
SA8230-25870
|
[4] |
Bolt
|
|
| 61. |
VOE14501615
|
[1] |
Casing
|
|
| 62. |
SA8230-32080
|
[1] |
Valve
|
|
| 63. |
VOE990547
|
[1] |
O-ring
|
|
| 64. |
VOE14535455
|
[1] |
O-ring
|
|
| 65. |
VOE14535456
|
[1] |
O-ring
|
|
| 100. |
VOE14555217
|
[1] |
Seal
|
|
