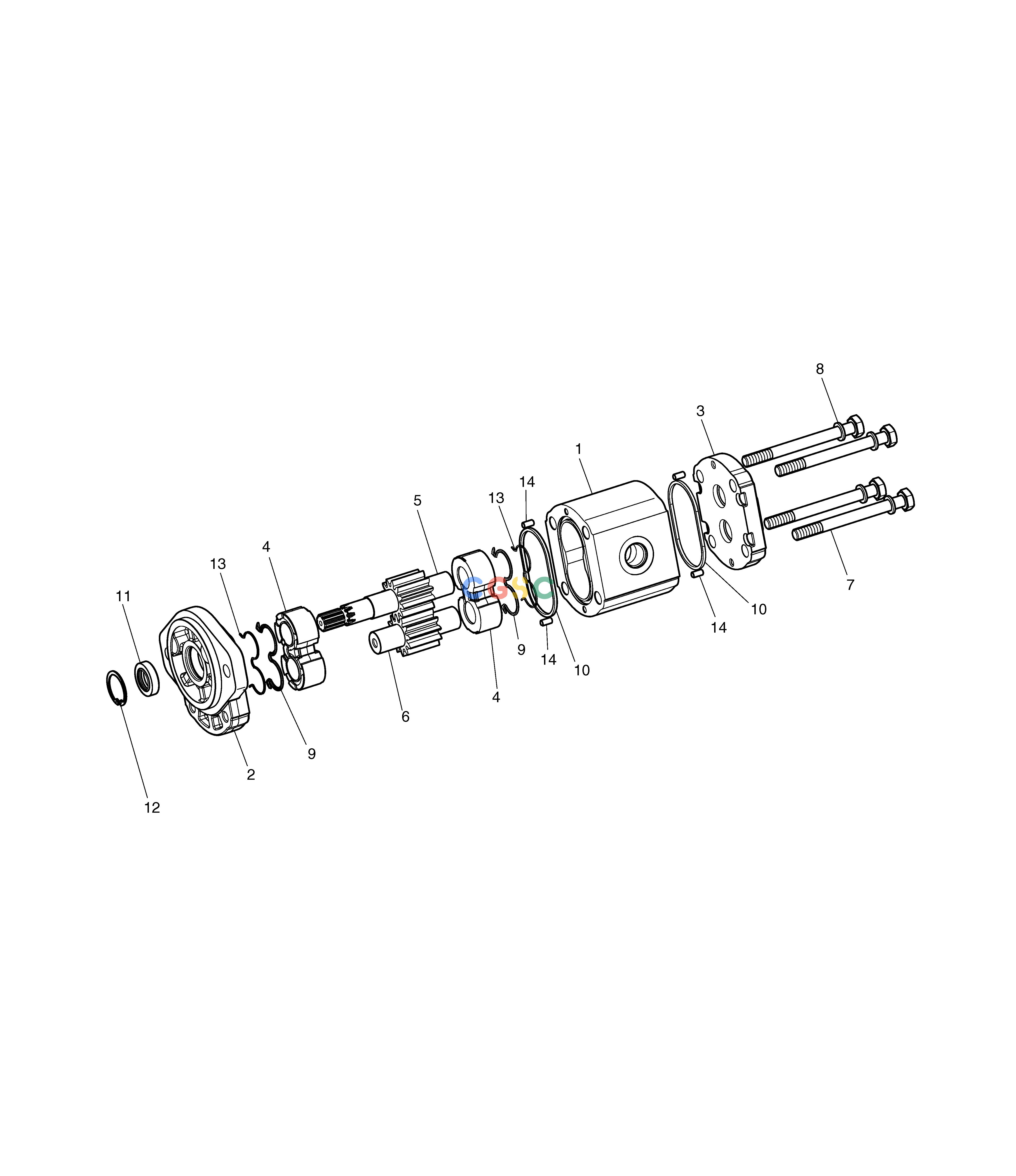

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . | K9001457 | [1] | SEAL KIT;GEAR PUMP | |
| -. | K1000410 | [1] | PUMP;GEAR | |
| 1. | NA00079 | [1] | BODY | |
| 10. | NA01076 | [2] | SEAL | |
| 11. | NA01099 | [1] | SEAL;SHAFT | |
| 12. | NA00982 | [1] | . HEAD | |
| 13. | NA00940 | [2] | BAGUE,SAUVEGARDER | |
| 14. | NA00766 | [4] | ||
| 2. | NA00400 | [1] | ||
| 3. | NA00404 | [1] | ||
| 4. | NA00838 | [2] | ||
| 5. | NA01127 | [1] | ||
| 6. | NA00488 | [1] | ||
| 7. | S0559553 | [4] | BOLT M10X1.5X100 | |
| 8. | S5102603 | [4] | . WASHER | |
| 9. | NA01076 | [2] | SEAL |
