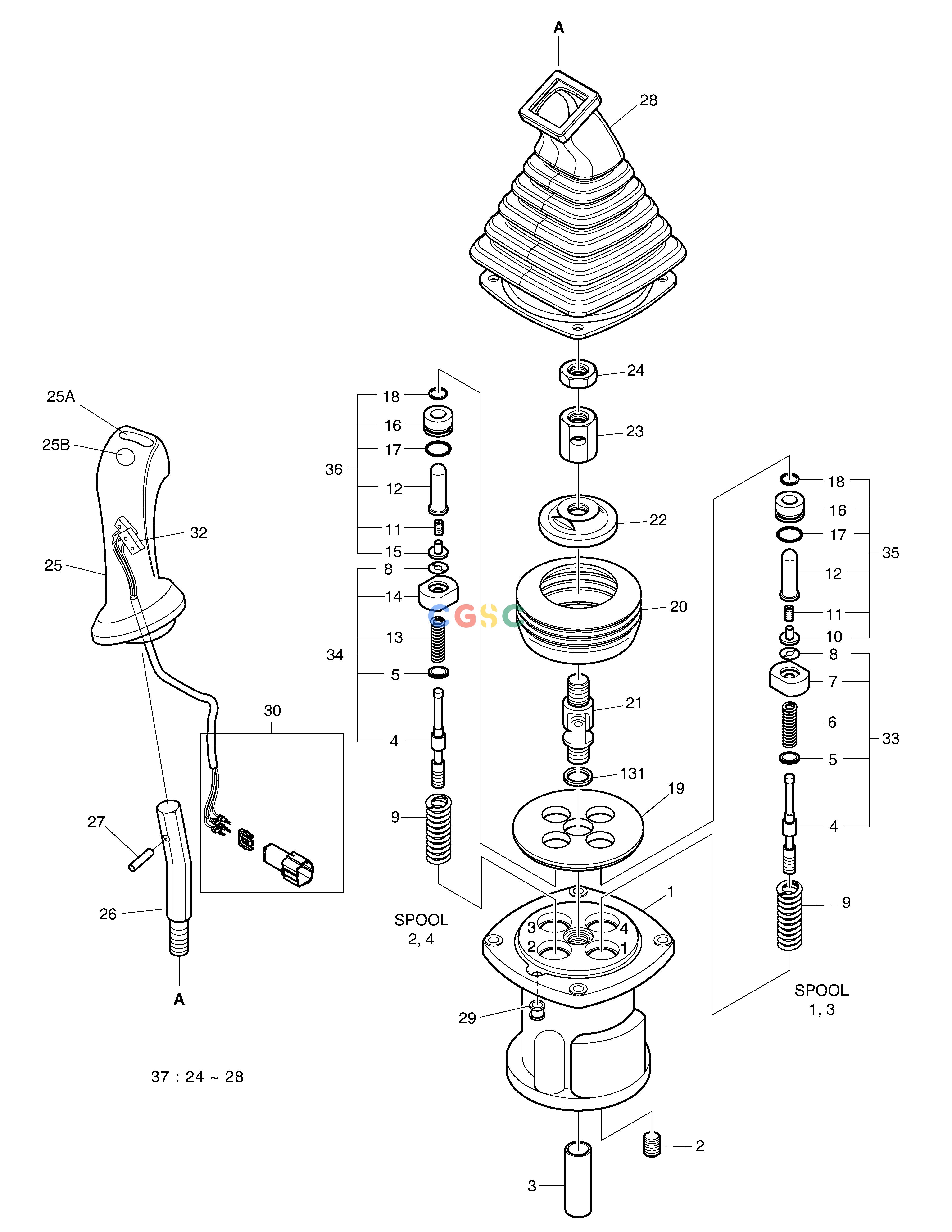

斗山零件查询JOYSTICK VALVE DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
968 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
410113-00022A
|
[1] |
|
410113-00124A
|
| -. |
410113-00021A
|
[1] |
|
410113-00125A
|
| -. |
410113-00124A
|
[1] |
|
410113-00124B
|
| -. |
410113-00125A
|
[1] |
|
410113-00125B
|
| -. |
410113-00124B
|
[1] |
|
|
| -. |
410113-00125B
|
[1] |
|
|
| -. |
K1000556H
|
[1] |
VALVE;REMOCON(L.H)
|
410113-00022A
|
| -. |
K1000555H
|
[1] |
VALVE;REMOCON(R.H)
|
410113-00021A
|
| 1. |
K9001114
|
[1] |
CASE
|
|
| 10. |
1.416-00017
|
[2] |
STOPPER
|
|
| 11. |
K9001121
|
[4] |
SPRING
|
|
| 12. |
K9001766
|
[4] |
ROD;PUSH
|
|
| 13. |
K9001123
|
[2] |
SPRING
|
|
| 131. |
110951-01142
|
[1] |
SPACER
|
|
| 14. |
K9001767
|
[2] |
SEAT;SPRING
|
|
| 15. |
1.416-00018
|
[2] |
STOPPER
|
|
| 16. |
K9001768
|
[4] |
PLUG
|
|
| 17. |
S8000205
|
[4] |
O-RING
|
|
| 18. |
K9001127
|
[4] |
SEAL;ROD
|
|
| 19. |
1.412-00017
|
[1] |
PLATE
|
|
| 19. |
250201-02097
|
[1] |
PLATE
|
|
| 2. |
2181-1116D2
|
[4] |
PLUG
|
|
| 20. |
K9001128
|
[1] |
BOOT
|
|
| 21. |
1.138-00004
|
[1] |
JOINT ASSY
|
|
| 22. |
K9001129A
|
[1] |
PLATE;SWASH
|
400901-00076
|
| 22. |
K9001129
|
[1] |
PLATE;SWASH
|
K9001129A
|
| 22. |
400901-00076
|
[1] |
PLATE,SWASH
|
|
| 23. |
1.121-00028
|
[1] |
NUT
|
|
| 24. |
S4012833
|
[1] |
NUT
|
|
| 25. |
K9001130
|
[1] |
HANDLE ASS'Y(L.H)
|
|
| 25. |
K9001131
|
[1] |
HANDLE ASS'Y(R.H)
|
|
| 25A. |
1.161-00021
|
[1] |
CAP;PEANUT
|
|
| 25A. |
1.161-00021
|
[1] |
CAP;PEANUT
|
|
| 25B. |
1.161-00017
|
[1] |
CAP;ROUND
|
|
| 25B. |
1.161-00017
|
[1] |
CAP;ROUND
|
|
| 26. |
1.178-00004
|
[1] |
BAR;HANDLE
|
|
| 27. |
S5740800
|
[1] |
PIN;SPRING
|
|
| 28. |
K9001132
|
[1] |
BELLOWS
|
|
| 29. |
1.110-00169
|
[1] |
BUSHING
|
|
| 3. |
K9001115
|
[1] |
BUSHING
|
|
| 30. |
K9001133
|
[1] |
CONNECTOR ASS'Y
|
|
| 32. |
K9001001
|
[1] |
SWITCH ASS'Y
|
|
| 33. |
410207-00175
|
[1] |
|
410207-00520
|
| 33. |
K9003998
|
[1] |
KIT;SPOOL(1,3)
|
|
| 33. |
410207-00520
|
[1] |
|
|
| 34. |
K9003999
|
[1] |
KIT;SPOOL(2,4)
|
|
| 34. |
410207-00176
|
[1] |
|
410207-00521
|
| 34. |
410207-00521
|
[1] |
|
|
| 35. |
K9006480
|
[1] |
KIT;PLUG(1,3)
|
K9004000
|
| 35. |
K9004000
|
[1] |
KIT;PLUG(1,3)
|
430221-01047
|
| 35. |
430221-01047
|
[1] |
|
|
| 36. |
K9006481
|
[1] |
KIT;PLUG(2,4)
|
K9004001
|
| 36. |
K9004001
|
[1] |
KIT;PLUG(2,4)
|
430221-01048
|
| 36. |
430221-01048
|
[1] |
|
|
| 37. |
K9001139
|
[1] |
KIT;HANDLE(R.H)
|
110925-00432
|
| 37. |
K9001140
|
[1] |
KIT;HANDLE(L.H)
|
110925-00431
|
| 37. |
110925-00432
|
[1] |
|
|
| 37. |
110925-00431
|
[1] |
|
|
| 4. |
K9001116
|
[4] |
SPOOL
|
|
| 5. |
1.114-00012
|
[1] |
SHIM
|
|
| 6. |
K9001117
|
[2] |
SPRING
|
|
| 7. |
K9001762
|
[2] |
SEAT;SPRING
|
|
| 8. |
K9001763
|
[4] |
STOPPER
|
|
| 9. |
K9001119
|
[4] |
SPRING
|
|
