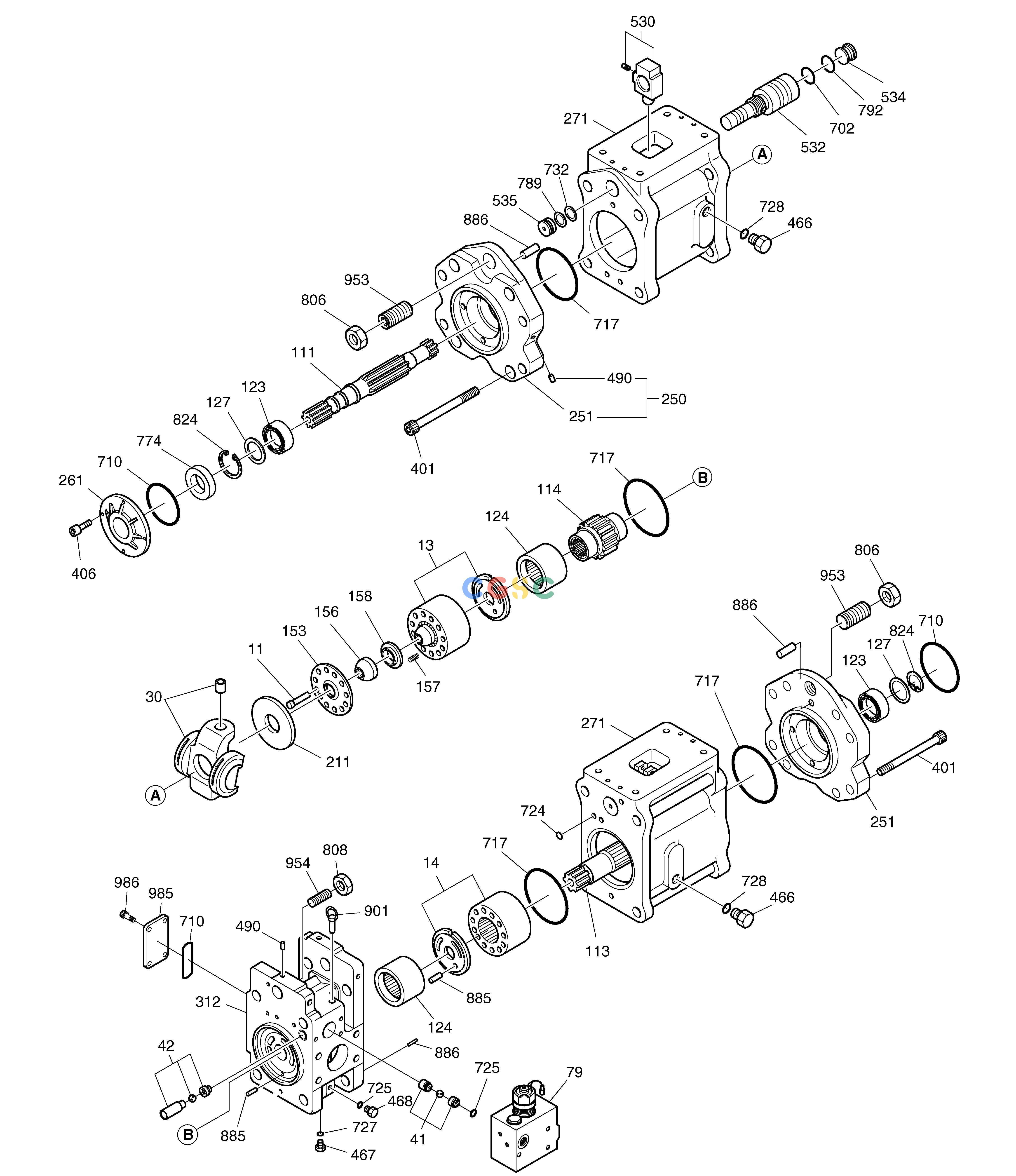

斗山零件查询MAIN PUMP DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
548 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9001902
|
[1] |
SEAL KIT;MAIN PUMP+REG.
|
K9001902A
|
| . |
K9001902A
|
[1] |
|
|
| -. |
K1000698E
|
[1] |
MAIN PUMP
|
400914-00212
|
| -. |
400914-00212
|
[1] |
|
400914-00212A
|
| -. |
400914-00212A
|
[1] |
|
|
| -. |
K1000698G
|
[1] |
PUMP;MAIN
|
|
| 11. |
1.409-00167
|
[2] |
PISTON & SHOE ASS`Y
|
|
| 111. |
1.405-00060
|
[1] |
SHAFT;DRIVING(F)
|
|
| 113. |
405-00008
|
[1] |
SHAFT;DRIVING(R)
|
|
| 114. |
101-00006
|
[1] |
GEAR
|
|
| 123. |
109-00097
|
[2] |
BEARING;ROLLER
|
|
| 124. |
109-00098
|
[2] |
BEARING;SPACER
|
|
| 127. |
1.109-00124
|
[4] |
SPACER;BEARING
|
|
| 13. |
1.451-00063
|
[1] |
CYLINDER ASS'Y(R)
|
|
| 13. |
K9007364
|
[1] |
CYLINDER ASS'Y(R)
|
|
| 14. |
1.451-00060
|
[1] |
CYLINDER ASS'Y(L)
|
|
| 14. |
K9007365
|
[1] |
CYLINDER ASS'Y(L)
|
|
| 153. |
1.412-00083
|
[2] |
PLATE;PUSH
|
|
| 156. |
408-00013
|
[2] |
BUSH;SPHERICAL
|
|
| 157. |
129-00044
|
[18] |
SPRING;CYLINDER
|
|
| 158. |
114-00228
|
[2] |
SPACER
|
|
| 211. |
412-00006
|
[2] |
PLATE;SHOE
|
|
| 250. |
1.197-00005
|
[1] |
SUPPORT KIT
|
|
| 251. |
195-00463
|
[2] |
SUPPORT
|
|
| 261. |
1.430-00212
|
[1] |
COVER;SEAL(F)
|
|
| 271. |
402-00026A
|
[2] |
CASING;PUMP
|
|
| 30. |
284-00005
|
[2] |
SWASH PLATE ASS`Y
|
|
| 312. |
100201-00158
|
[1] |
|
|
| 401. |
S2229071
|
[8] |
BOLT;SOCKET
|
|
| 406. |
S2208871
|
[4] |
BOLT;SOCKET
|
|
| 41. |
K9001849
|
[2] |
CHECK 1 ASS`Y
|
|
| 42. |
K9001850
|
[2] |
CHECK 2 ASS'Y
|
|
| 466. |
2181-1950D5
|
[4] |
PLUG PF3/4
|
|
| 467. |
2181-1950D2
|
[2] |
PLUG
|
|
| 468. |
2181-1890D2
|
[2] |
PLUG
|
|
| 490. |
181-00519
|
[18] |
PLUG
|
|
| 530. |
123-00150
|
[2] |
TILTING PIN ASS`Y
|
|
| 532. |
409-00003
|
[2] |
PISTON;SERVO
|
|
| 534. |
416-00004
|
[2] |
STOPPER(L)
|
|
| 535. |
416-00005
|
[2] |
STOPPER(S)
|
|
| 702. |
S8010355
|
[2] |
O-RING
|
|
| 710. |
S8010951
|
[3] |
O-RING
|
|
| 717. |
S8011451
|
[4] |
O-RING
|
|
| 724. |
S8000081
|
[16] |
O-RING
|
|
| 725. |
S8000111
|
[2] |
O-RING
|
|
| 727. |
S8000141
|
[2] |
O-RING
|
|
| 728. |
S8000241
|
[4] |
O-RING
|
|
| 732. |
S8000185
|
[2] |
. O-RING
|
|
| 774. |
401106-00179
|
[1] |
SEAL,OIL
|
|
| 774. |
K9001851
|
[1] |
SEAL;OIL
|
401106-00179
|
| 789. |
S8060181
|
[2] |
. RING;BACKUP
|
|
| 79. |
420-00127
|
[1] |
VALVE;PROPORTIONAL
|
|
| 792. |
S8090350
|
[2] |
RING;BACK-UP
|
|
| 806. |
S4012933
|
[2] |
NUT
|
|
| 808. |
S4013133
|
[2] |
NUT
|
|
| 824. |
S6500400
|
[2] |
RING,RETAINING
|
|
| 885. |
123-00151
|
[2] |
PIN D8X12L
|
|
| 886. |
S5740870
|
[4] |
PIN,SPRING
|
|
| 901. |
S3140025
|
[2] |
BOLT,EYE
|
|
| 953. |
S3527808
|
[2] |
SCREW,SET
|
|
| 954. |
120-00130
|
[2] |
SCREW;ADJUST
|
|
| 985. |
K9001852
|
[1] |
COVER
|
|
| 986. |
S2212061
|
[4] |
BOLT;SOCKET M10X1.5X25
|
|
