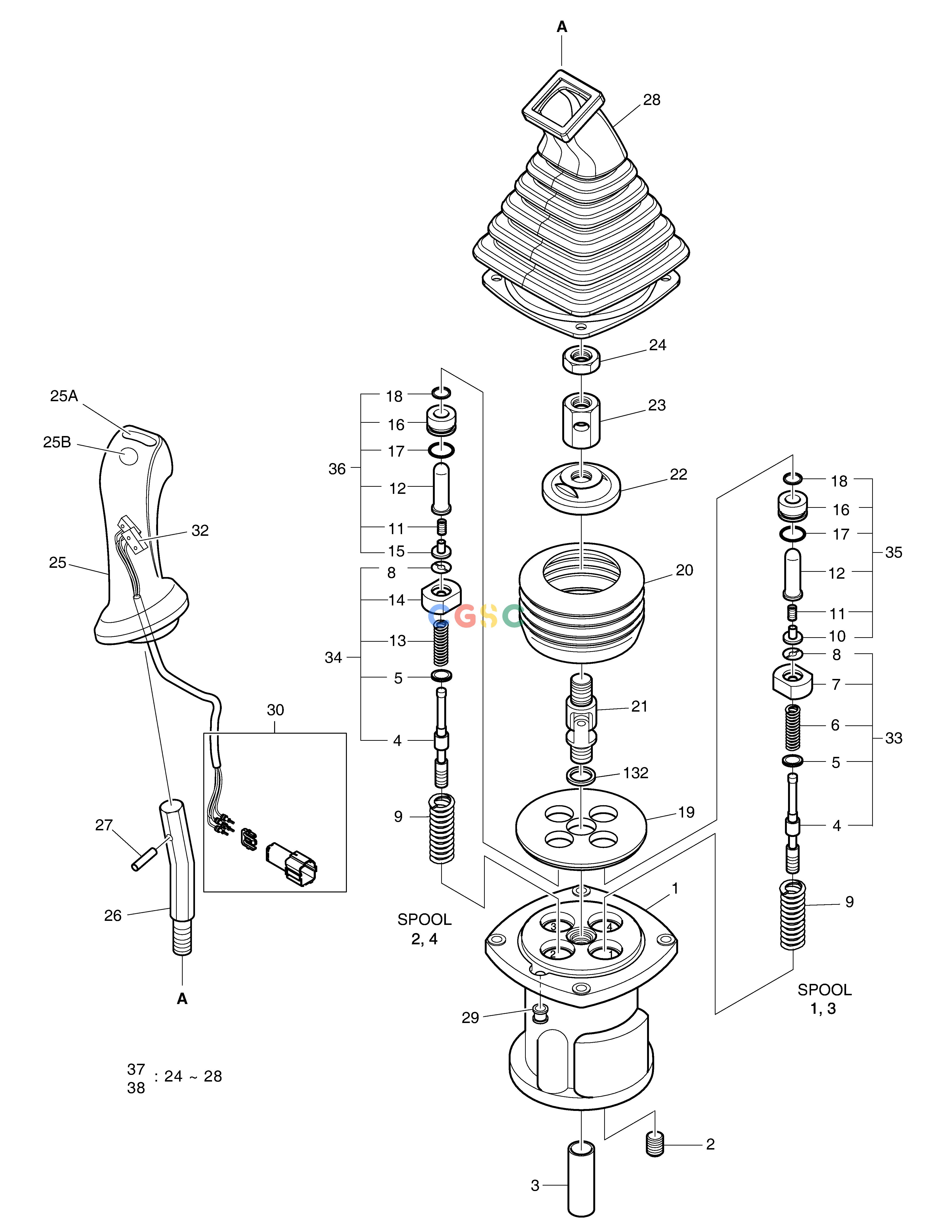

斗山零件查询JOYSTICK VALVE - ROPS DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
264 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
410113-00043A
|
[1] |
|
410113-00043B
|
| -. |
410113-00044A
|
[1] |
|
410113-00044B
|
| -. |
410113-00043B
|
[1] |
|
|
| -. |
410113-00044B
|
[1] |
|
|
| -. |
410113-00043
|
[1] |
|
410113-00043A
|
| -. |
410113-00044
|
[1] |
|
410113-00044A
|
| 1. |
K9001114
|
[1] |
CASE
|
|
| 10. |
K9001120
|
[2] |
STOPPER(1.3)
|
|
| 11. |
K9001121
|
[4] |
SPRING
|
|
| 12. |
K9001122
|
[4] |
ROD;PUSH
|
|
| 13. |
NA01182
|
[2] |
. SPRING
|
|
| 132. |
110951-01142
|
[1] |
SPACER
|
|
| 14. |
1.427-00022
|
[2] |
SEAT;SPRING(2.4)
|
|
| 15. |
K9001125
|
[2] |
STOPPER(2.4)
|
|
| 16. |
K9001126
|
[4] |
PLUG
|
|
| 17. |
S8000201
|
[4] |
O-RING
|
|
| 18. |
401107-00682
|
[4] |
SEAL,ROD
|
|
| 19. |
250201-02097
|
[1] |
PLATE
|
|
| 19. |
1.412-00017
|
[1] |
PLATE
|
|
| 2. |
2181-1116D1
|
[4] |
PLUG
|
|
| 20. |
K9001128
|
[1] |
BOOT
|
|
| 21. |
1.138-00004
|
[1] |
JOINT ASSY
|
|
| 22. |
400901-00076
|
[1] |
PLATE,SWASH
|
|
| 22. |
K9001129A
|
[1] |
PLATE;SWASH
|
400901-00076
|
| 23. |
1.121-00028
|
[1] |
NUT
|
|
| 24. |
S4012833
|
[1] |
NUT
|
|
| 25. |
K9001130
|
[1] |
HANDLE ASS'Y(L.H)
|
|
| 25. |
K9001131
|
[1] |
HANDLE ASS'Y(R.H)
|
|
| 25A. |
1.161-00021
|
[1] |
CAP;PEANUT
|
|
| 25B. |
1.161-00017
|
[1] |
CAP;ROUND
|
|
| 26. |
1.178-00004
|
[1] |
BAR;HANDLE
|
|
| 27. |
S5740800
|
[1] |
PIN;SPRING
|
|
| 28. |
430205-00010
|
[1] |
|
|
| 29. |
1.110-00169
|
[1] |
BUSHING
|
|
| 3. |
K9001115
|
[1] |
BUSHING
|
|
| 30. |
K9001133
|
[1] |
CONNECTOR ASS'Y
|
|
| 32. |
K9001002
|
[1] |
SWITCH ASS'Y
|
|
| 33. |
410207-00175
|
[2] |
|
410207-00520
|
| 33. |
410207-00520
|
[2] |
|
|
| 34. |
410207-00176
|
[2] |
|
410207-00521
|
| 34. |
410207-00521
|
[2] |
|
|
| 35. |
K9004000
|
[2] |
KIT;PLUG(1,3)
|
430221-00626
|
| 35. |
430221-00626
|
[2] |
|
430221-01047
|
| 35. |
430221-01047
|
[2] |
|
|
| 36. |
K9004001
|
[2] |
KIT;PLUG(2,4)
|
430221-00625
|
| 36. |
430221-00625
|
[2] |
|
430221-01048
|
| 36. |
430221-01048
|
[2] |
|
|
| 37. |
110925-00043
|
[1] |
|
110925-00371
|
| 37. |
110925-00371
|
[1] |
|
|
| 38. |
110925-00044
|
[1] |
|
110925-00372
|
| 38. |
110925-00372
|
[1] |
|
|
| 4. |
NA01161
|
[4] |
. SPOOL
|
|
| 5. |
NA01133
|
[4] |
. SHIM
|
|
| 6. |
NA01182
|
[2] |
. SPRING
|
|
| 7. |
1.427-00021
|
[2] |
SEAT;SPRING(1.3)
|
|
| 8. |
161-00171
|
[4] |
STOPPER
|
|
| 9. |
K9001119
|
[4] |
SPRING
|
|
