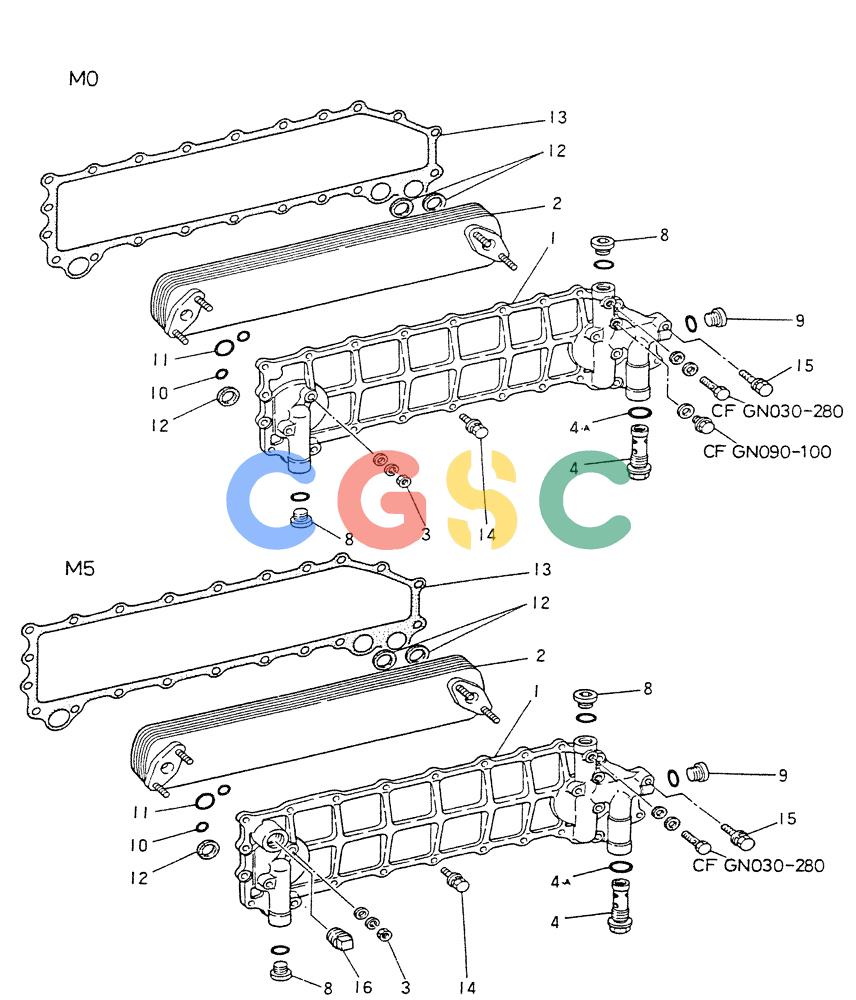

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K909A, K912A, K916, & K935 (1/76-12/06) (02-011) - OIL COOLER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
691 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CT-KS09 | [1] | OIL COOLER (M5) | |
| . . | 6D221CT-KS0B | [1] | OIL COOLER (M1) | |
| . . | 6D221CT-KS04 | [1] | OIL COOLER (M0) | |
| . . | 6D221CT-KS03 | [1] | OIL COOLER (M0) | |
| . . | 6D221CT-KS01 | [1] | OIL COOLER (M0) | |
| . . | 6D221CZ-KS0A | [1] | OIL COOLER (M0) | |
| . . | 6D221CZ-KS06 | [1] | OIL COOLER (M0) | |
| . . | 6D221CZ-KS09 | [1] | OIL COOLER (M0) | |
| . . | 6D221CZ-K507 | [1] | OIL COOLER (M0) | |
| . . | 6D221CZ-KS04 | [1] | OIL COOLER (M0) | |
| 1-11. | VAME054109 | [1] | OIL COOLER | KOBOIL COOLER ASSY (FOR M0) |
| . . | VAME054188 | [1] | NSS (FOR M1) | |
| . . | VAME058951 | [1] | NSS (FOR M5) | |
| 1. | VAME054053 | [1] | COVER COVER (FOR M0,M1) | COVER COVER (FOR M0,M1) |
| . . | VAME058952 | [1] | NSS (FOR M5) | |
| 2. | VAME054110 | [1] | ELEMENT | KOBELEI1ENT,O/C (5) (FOR M0,M5) Superseded by part number: 133280A1 |
| . . | VAME054008 | [1] | ENGINE OIL FILTER | KOBELEMENT,0/C (7) (FOR M1) Superseded by part number: ME054008 |
| 3. | VAMF430006 | [4] | NUT | KOBNUT 10 Superseded by part number: VAF230510000 |
| . . | VAMF450406 | [4] | WASHER | KOBWASHER,SPG 10 |
| . . | VAMF450006 | [4] | NUT | KOBWASHER,PLAIN 10 Superseded by part number: 133247A1 |
| 4. | VAME054045 | [1] | VALVE | KOBBY-PASS VALVE ASSY |
| 4A. | VAMH035093 | [1] | O-RING | KOBO-RING Superseded by part number: 77270608, 133289A1 |
| 8. | VAME064526 | [2] | PLUG | KOBPLUG |
| . . | VAMH035093 | [2] | O-RING | KOBO-RING Superseded by part number: 77270608, 133289A1 |
| 9. | VAMH037117 | [1] | PLUG | KOBPLUG |
| . . | VAMF520012 | [1] | O-RING | KOBO-RING 18 Superseded by part number: MF520012 |
| 10. | VAMH035092 | [4] | O-RING | KOBO-RING Superseded by part number: VA0550700140 |
| 11. | VAMH035093 | [2] | O-RING | KOBO-RING Superseded by part number: 77270608, 133289A1 |
| 12. | 133285A1 | [3] | O-RING | MITENG OIL COOLER -- Was VA3093900300 |
| 13. | VA3093910401 | [1] | GASKET GASKET,O/C | GASKET GASKET,O/C |
| 14. | VAMF303365 | [18] | WASHER | KOBBOLT,W/WSR 10X30 Superseded by part number: 133169A1 |
| . . | VAMF300847 | [2] | BOLT | KOBBOLT,W/WSR 10X35 |
| 15. | VAMF303372 | [2] | BOLT,W/WSR 10X55 | |
| 16. | VAMS666224 | [1] | PLUG | KOBPLUG,TAPER PT3/4 (FOR M5) |
